Countax Fr691V As19 Bs19 Cs19 - 08 Carburettor

Name: Countax Fr691V As19 Bs19 Cs19 - 08 Carburettor
SKU: countax_engine_fr691vas19bs19cs19_08-group
Price: 0.4 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax Fr691V As19 Bs19 Cs19 - 08 Carburettor

Description

Countax Kawasaki

FR691V AS19 BS19 CS19 - Engine

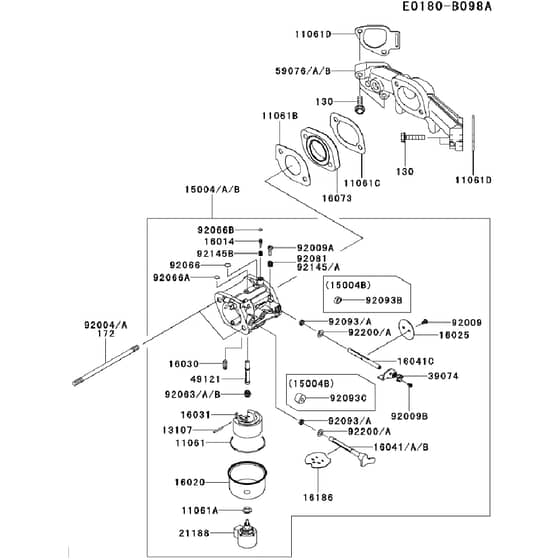

08 Carburettor Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
130	KA130BA-0630 Available to backorder	Boltflanged	£0.48 £0.40
172	KA172BA-06115 Available to backorder	Boltstud	£2.68 £2.23
11061	KA11061-1573 In stock	Gasket (11061A)	£2.76 £2.30
11061	KA11061-7093 Available to backorder	Gasketmanifold (11061D)	£3.60 £3.00
11061	KA11061-7087 Available to backorder	Gasketinsulator (11061B)	£3.48 £2.90
11061	KA11061-7009 In stock	Gasketchamber	£2.60 £2.17
11061	KA11061-7088 Available to backorder	Gasketinsulatormanifold (11061C)	£3.74 £3.12
13107	KA13107-7018 Available to backorder	Shaft	£4.21 £3.51
15004	KA15004-0985 Available to backorder	Carburetorassy (15004B)	£435.36 £362.80
16014	KA16014-7010 Available to backorder	Screwpilot Air	£32.10 £26.75
16020	KA16020-7003 Available to backorder	Chamberfloat	£13.32 £11.10
16025	KA16025-7017 Available to backorder	Valvethrottle	£22.22 £18.52
16030	KA16030-7003 Available to backorder	Valvefloat	£20.60 £17.17
16031	KA16031-7002 Available to backorder	Float	£29.00 £24.17
16041	KA16041-0007 Available to backorder	Shaftcarburetor	£28.20 £23.50
16041	KA16041-7051 Available to backorder	Shaftcarburetorthrottle (16041C)	£61.20 £51.00
16073	KA16073-7013 Available to backorder	Insulator	£8.77 £7.31
16186	KA16186-7006 Available to backorder	Valveassychoke	£30.83 £25.69
21188	KA21188-7002 Available to backorder	Solenoid	£98.32 £81.93
39074	KA39074-7001 Available to backorder	Leverassythrottle	£15.77 £13.14
49121	KA49121-7018 Available to backorder	Nozzlemain	£74.04 £61.70
59076	KA59076-0009 Available to backorder	Manifoldintake (59076B)	£275.40 £229.50
92004	KA92004-0723 Available to backorder	Boltstud6X115 (92004A)	£5.27 £4.39
92009	KA92009-2349 Available to backorder	Screw (92009A)	£1.48 £1.23
92009	KA92009-2402 Available to backorder	Screw (92009B)	£1.97 £1.64
92009	KA92009-2083 Available to backorder	Screw	£1.82 £1.52
92063	KA92063-7142 Available to backorder	Jetmain#124 (92063A)	£26.65 £22.21
92063	KA92063-7149 Available to backorder	Jetmain#120 (92063B)	£26.92 £22.43
92063	KA92063-7141 Available to backorder	Jetmain#122	£26.92 £22.43
92066	KA92066-2244 Available to backorder	Plug (92066A)	£1.97 £1.64
92066	KA92066-7032 Available to backorder	Plug (92066B)	£3.85 £3.21
92066	KA92066-2204 Available to backorder	Plug	£3.73 £3.11
92081	KA92081-2234 Available to backorder	Spring	£3.30 £2.75
92093	KA92093-0593 Available to backorder	Seal	£4.55 £3.79
92093	KA92093-2100 Available to backorder	Seal (92093B)	£2.94 £2.45
92093	KA92093-7003 Available to backorder	Seal (92093C)	£4.34 £3.62
92145	KA92145-1579 Available to backorder	Spring (92145A)	£5.46 £4.55
92145	KA92145-2122 Available to backorder	Spring (92145B)	£2.58 £2.15
92200	KA92200-0848 Available to backorder	Washer (92200A)	£2.96 £2.47
