Countax E36 W216K - From 01-05-2017 - 26 Pgc Pulleys And Belts

Description

Countax E Series

E36 W216K - Tractor

From 01-05-2017

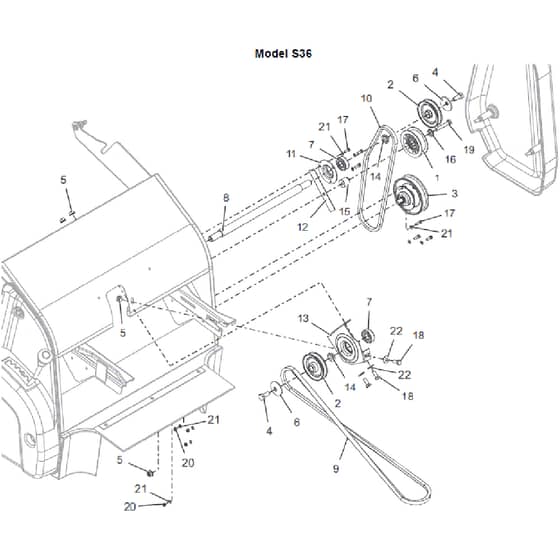

26 Pgc Pulleys And Belts Parts Diagram

	Part No.	Details
1	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
2	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
4	8420 In stock	M10 X 25 S.Screw BZP	£0.48 £0.40
6	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
7	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
8	WE183838500 Available to backorder	C130.S130 Sweeper Idler Shaft	£44.94 £37.45
9	WE228000200 In stock	A51 Super2 Belt	£28.24 £23.53
10	WE22832800 In stock	Belt Sweeper V-Type A36	£23.96 £19.97
11	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
12	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
13	WE307025600 Available to backorder	Zzc Series Idler Shaft Plate &	£65.16 £54.30
15	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
16	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
18	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
19	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
20	2047 In stock	Nut	£0.34 £0.28
22	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
