Countax E36 W216K - From 01-05-2017 - 21 Deck

Name: Countax E36 W216K - From 01-05-2017 - 21 Deck
SKU: e36w216k_01052017_21-group
Price: 0.4 GBP
Availability: InStock

Part No. e36w216k_01052017_21-group

Description

Countax E Series

E36 W216K - Tractor

From 01-05-2017

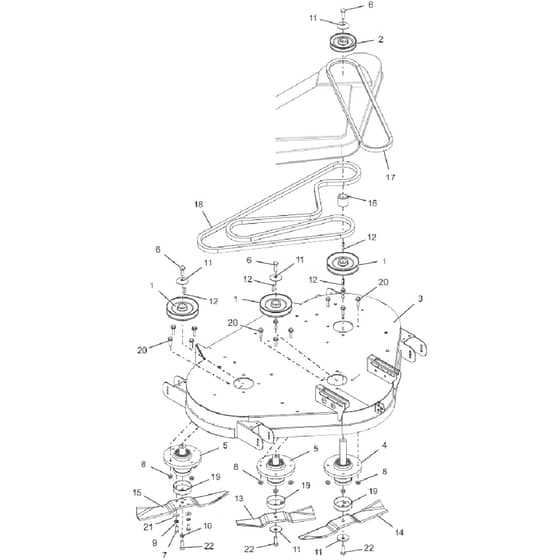

21 Deck Parts Diagram

	Part No.	Details
1	WE20869502 In stock	5Internal Pulley.Keyway	£74.11 £61.76
4	WE40503507 In stock	Deck Bearing Housing Assy Long	£128.50 £107.08
5	WE40503607 In stock	Bearing Housing Assy Short Sha	£119.30 £99.42
6	8984 In stock	Screw Hex Hd Din933 M10 X 30	£0.48 £0.40
7	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
9	6408 In stock	M8 Internally Serrated Shakepr	£0.48 £0.40
10	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
11	WE08819900 In stock	Dome Washer 1.3.4Od X 3.8Id X	£15.24 £12.70
12	WE09853401 Available to backorder	Key-1.4Sq X 1 1.4 American Spe	£2.06 £1.72
13	WE16869001 In stock	Blade 12 L.H Harden	£22.32 £18.60
14	WE16869102 In stock	Blade 15	£24.42 £20.35
15	WE16869202 In stock	15 Blade. R.H	£24.42 £20.35
16	WE183530500 Available to backorder	363842Hgm Deck Drive Pulley Sp	£22.06 £18.38
17	WE228000100 Available to backorder	B51 Deck Drive Belt	£37.54 £31.28
18	WE22869800 Available to backorder	Aa105 Belt	£66.17 £55.14
19	WE30831500 In stock	Deck Bearing Housing Slinger 2	£11.96 £9.97
20	WE019483700 Available to backorder	M8 X 30 Flange Bolt	£1.58 £1.32
21	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
