Countax E36 Mulcher - From 01-05-2017 - 13 Rear Transmisson (R116L E36)

Name: Countax E36 Mulcher - From 01-05-2017 - 13 Rear Transmisson (R116L E36)
SKU: e36mulcher_01052017_13-group
Price: 0.4 GBP
Availability: InStock

Part No. e36mulcher_01052017_13-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax E36 Mulcher - From 01-05-2017 - 13 Rear Transmisson (R116L E36)

Description

Countax E Series

E36 Mulcher - Tractor

From 01-05-2017

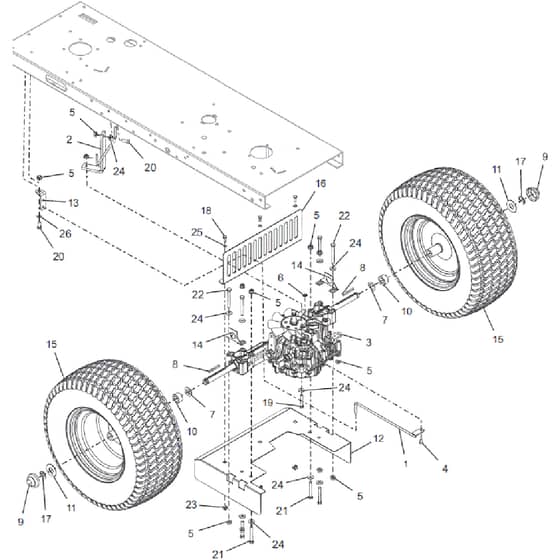

13 Rear Transmisson (R116L E36) Parts Diagram

	Part No.	Details
1	WE321123301 Available to backorder	C-Series Dump Valve Lever Asse	£28.03 £23.36
2	WE327020400 Available to backorder	Transaxle Steady Assembly	£12.54 £10.45
3	TT7A646084280 In stock	Hydrotx - K46Cm 08	£914.76 £762.30
4	WE12855800 Available to backorder	1.4 X 1.2 Steel Flat Hd Solid	£1.49 £1.24
6	WE07868700 Available to backorder	1.4 Starloc Washer	£0.56 £0.47
7	WE081258200 Available to backorder	32 X 20 X 1mm Galv Washer	£6.72 £5.60
8	2199 In stock	Keyrear Wheel	£2.75 £2.29
9	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
10	WE189498701 Available to backorder	K46 Transaxle Spacer 2008	£36.34 £30.28
11	WE30127800 Available to backorder	Hub Cap Washer	£1.61 £1.34
12	WE30307101 Available to backorder	2001 C-Series Transaxle Deflec	£141.00 £117.50
14	WE307191801 Available to backorder	K46 Transaxle Thrust Washer	£6.20 £5.17
15	WE408806200 Available to backorder	Asm Rear 20 Wheel	£291.29 £242.74
17	2147 In stock	E Clip 3.4	£0.91 £0.76
18	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
19	WE02941000 Available to backorder	Shield Wdecals 98083	£0.68 £0.57
20	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
21	7530 In stock	Bolt M8 X 60mm	£0.48 £0.40
22	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.48 £0.40
23	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
24	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
25	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
