Countax E36 Mulcher - From 01-05-2017 - 01 Bonnet

Name: Countax E36 Mulcher - From 01-05-2017 - 01 Bonnet
SKU: e36mulcher_01052017_01-group
Price: 0.32 GBP
Availability: InStock

Description

Countax E Series

E36 Mulcher - Tractor

From 01-05-2017

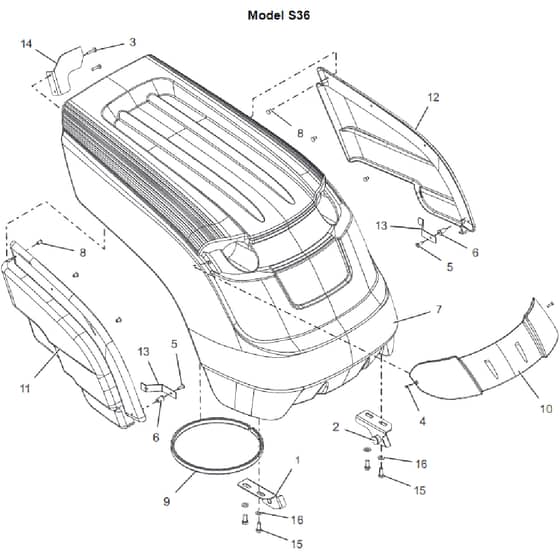

01 Bonnet Parts Diagram

	Part No.	Details
1	WE329598700 Available to backorder	Bonnet Pivot Asm RH	£11.24 £9.37
2	WE329598800 Available to backorder	Bonnet Pivot Asm LH	£10.78 £8.98
3	2115 Available to backorder	Flanged Button Head Bolt - V20	£0.88 £0.73
4	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk S	£0.41 £0.34
5	2035 In stock	M5 X 16mm Flang Butt Hd Sckt D	£0.41 £0.34
6	WE048001400 Available to backorder	M5 Jack Nut - V2050 Bonnet Tri	£6.00 £5.00
7	WE148996115 Available to backorder	Bonnet Loncin - Ariens Orange (7b)	£481.20 £401.00
7	WE148012715 Available to backorder	Bonnet Loncin - Countax Red (7c)	£331.20 £276.00
8	WE148014900 Available to backorder	Fir Tree Fixing C Series Head	£0.38 £0.32
10	WE148998400 Available to backorder	Lens Black MK 3 Bonnet	£40.30 £33.58
11	WE149594300 Available to backorder	Panel RH Side E36	£75.16 £62.63
12	WE14959000 Available to backorder	C Series Side Panel LH- Black	£94.67 £78.89
13	WE308419300 Available to backorder	C800 Side Pannel Support Brack	£10.67 £8.89
14	WE549119600 Available to backorder	Brkt Bonnet Catch	£10.26 £8.55
15	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
16	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
