Countax E36 - From 01-05-2017 - 22A Deck Pulleys And Idlers

Name: Countax E36 - From 01-05-2017 - 22A Deck Pulleys And Idlers
SKU: e36_01052017_22a-group
Price: 0.4 GBP
Availability: InStock

Part No. e36_01052017_22a-group

Description

Countax E Series

E36 - Tractor

From 01-05-2017

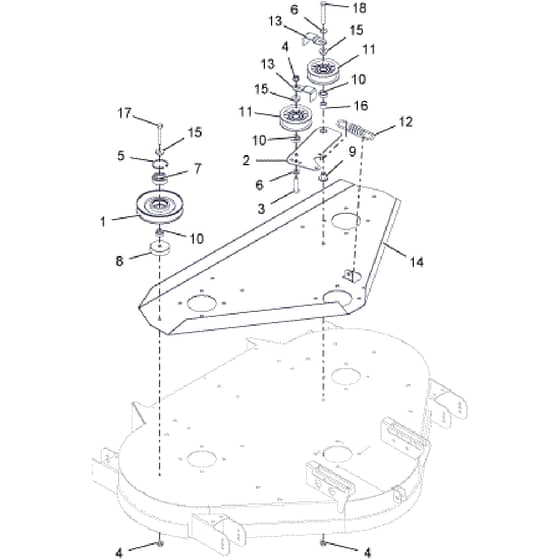

22A Deck Pulleys And Idlers Parts Diagram

	Part No.	Details
1	WE209044600 In stock	Deck Idler Pulley C.W Bearing	£36.23 £30.19
2	WE32731000 Available to backorder	Belt Tension Plate 96	£74.40 £62.00
3	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
5	WE07847600 Available to backorder	Circlip 40mm	£1.82 £1.52
6	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
8	WE183004200 Available to backorder	Tr D 98 Idler Pulley Spacer	£21.23 £17.69
9	WE183853800 Available to backorder	Universal Jockey Pivot Spacer	£51.43 £42.86
11	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
12	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
13	WE301123800 Available to backorder	Joggled Belt Retaining Pulley	£19.03 £15.86
14	WE302012300 Available to backorder	36 Cutter Deck Stiffener Plate	£48.92 £40.77
16	WE52936700 Available to backorder	Oilite Bush - 5.8Od X 1.2Id X	£6.25 £5.21
17	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
