Countax E36 - From 01-05-2017 - 18A Deck Lift Rear Cradle

Countax E36 - From 01-05-2017 - 18A Deck Lift Rear Cradle

Part No. e36_01052017_18a-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax E36 - From 01-05-2017 - 18A Deck Lift Rear Cradle

Countax E36 - From 01-05-2017 - 18A Deck Lift Rear Cradle

Description

Countax E Series

E36 - Tractor

From 01-05-2017

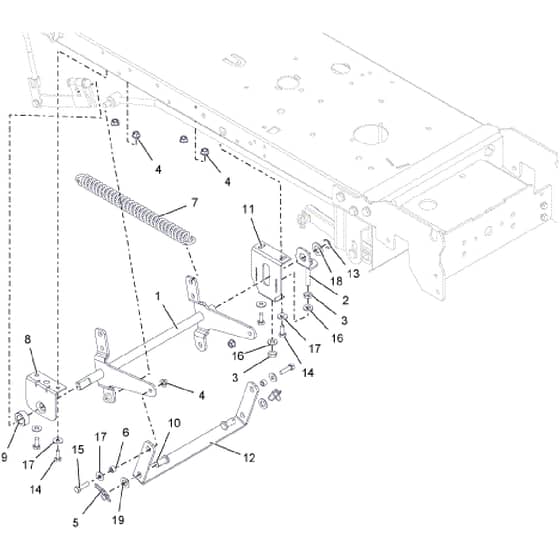

18A Deck Lift Rear Cradle Parts Diagram

Ref.		Img.	Part No.	Details
	1		WE327361700 Available to backorder	2003 Rear Deck Hanging Brktc-S		£113.88 £94.90
	2		WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Ad		£35.21 £29.34
	3		2173 In stock	M10 Locknut		£0.48 £0.40
	5		2195 In stock	Rue Clip		£1.25 £1.04
	6		WE18302700 Available to backorder	Spacer		£10.37 £8.64
	7		WE25885300 Available to backorder	Deck Assist Spring		£19.55 £16.29
	8		WE307189601 Available to backorder	2003 Rear Deck Hanging Brkt		£29.21 £24.34
	9		WE31323500 Available to backorder	H.E Lift Bar Spacer		£20.44 £17.03
	10		WE31337200 In stock	Deck Lift Pin (Rear)		£14.56 £12.13
	11		WE549101500 Available to backorder	Brkt Rear Deck Level		£4.44 £3.70
	12		WE549129100 Available to backorder	Brkt Rear Deck Lift Link		£43.99 £36.66
	13		WE078000800 Available to backorder	E Clip M12 Plated		£0.91 £0.76
	14		7735 In stock	Screw Hex Hd Din933 M8 X 20 G		£0.48 £0.40
	15		WE01935700 Available to backorder	M8 X 35mm Bolt Compressor		£1.28 £1.07
	16		7282 In stock	Washer 10.8Id X 20.7Od X 2mm T		£0.38 £0.32
	17		2192 In stock	Washer - M8 X 21 X 1.6		£0.48 £0.40
	18		WE088002600 Available to backorder	Zinc Plated M16 Washer Form B		£0.95 £0.79
	19		2114 In stock	Washer - M12 X 24 X 1.6		£0.48 £0.40

Description

Countax E Series

E36 - Tractor

From 01-05-2017

18A Deck Lift Rear Cradle Parts Diagram
