Countax E36 - From 01-05-2017 - 17A Deck Lift Front Cradle

Name: Countax E36 - From 01-05-2017 - 17A Deck Lift Front Cradle
SKU: e36_01052017_17a-group
Price: 0.32 GBP
Availability: InStock

Part No. e36_01052017_17a-group

Description

Countax E Series

E36 - Tractor

From 01-05-2017

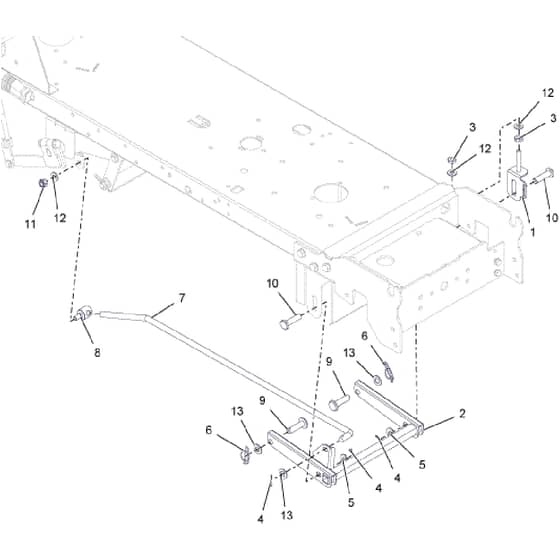

17A Deck Lift Front Cradle Parts Diagram

	Part No.	Details
1	WE327029200 Available to backorder	Front Deck Cradle Adjuster Brk	£60.41 £50.34
2	WE32703701 Available to backorder	Deck Carry Cradle Assembly Fro	£186.12 £155.10
3	2173 In stock	M10 Locknut	£0.48 £0.40
4	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
6	2195 In stock	Rue Clip	£1.25 £1.04
7	WE18805900 Available to backorder	Height Adjuster Rod	£29.32 £24.43
8	WE189497500 Available to backorder	2002 Tractor Deck Level Trunio	£26.23 £21.86
9	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
10	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£21.05 £17.54
11	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
12	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
13	2114 In stock	Washer - M12 X 24 X 1.6	£0.48 £0.40
