Countax E36 - From 01-05-2017 - 12A Chasis Belts (R116L E36)

Countax E36 - From 01-05-2017 - 12A Chasis Belts (R116L E36)
Countax E36 - From 01-05-2017 - 12A Chasis Belts (R116L E36)

Description

Countax E Series

E36 - Tractor

From 01-05-2017

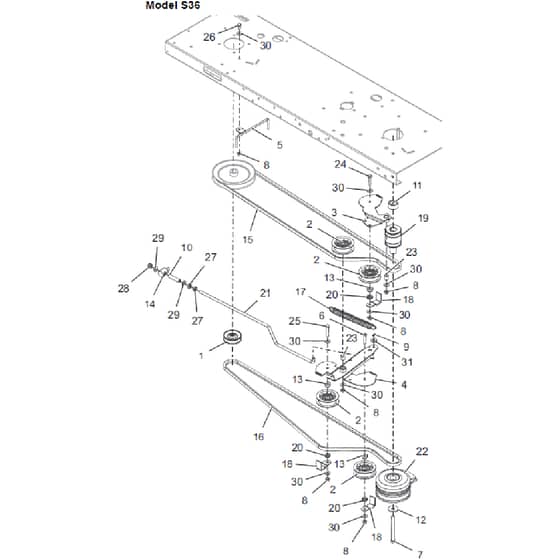

12A Chasis Belts (R116L E36) Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 70mm Dia - K46 Input Pulley WE200811600
70mm Dia - K46 Input Pulley
 In stock
£49.32 £41.10

  2 PTO Jockey Pulley WE20811500
PTO Jockey Pulley
 In stock
£23.90 £19.92

  3 C Series.Westwood PTO Jockey P WE327360700
C Series.Westwood PTO Jockey P
 Out of stock
£23.56 £19.63

  4 2003 C Series Jockey Pulley P WE328955100
2003 C Series Jockey Pulley P
 Out of stock
£74.28 £61.90

  5 C & Ww PTO Rear Belt Guide WE328955500
C & Ww PTO Rear Belt Guide
 Out of stock
£17.18 £14.32

  6 M8X40mm Bright Zinc Plate Bolt WE018003200
M8X40mm Bright Zinc Plate Bolt
 Out of stock
£0.71 £0.59

  7 7.16 UNF X 4.5 Bolt 2201
7.16 UNF X 4.5 Bolt
 Out of stock
£3.95 £3.29

  8 M8 Flange Nut WE049383700
M8 Flange Nut
 Out of stock
£0.83 £0.69

  9 3.32 X 1.2 Split Pin WE06861500
3.32 X 1.2 Split Pin
 Out of stock
£0.54 £0.45

  10 20.50 Brake Rod Tube WE183019100
20.50 Brake Rod Tube
 Out of stock
£7.75 £6.46

  11 Hanbrake C Series Only Eng Pul WE183028300
Hanbrake C Series Only Eng Pul
 Out of stock
£3.60 £3.00

  12 Engine Pulley Cap WE18312200
Engine Pulley Cap
 Out of stock
£18.74 £15.62

  13 Spacer Jockey Wheel WE18831600
Spacer Jockey Wheel
 In stock
£32.98 £27.48

  14 C Series 4Wd Park Brake Rod Tr WE189514100
C Series 4Wd Park Brake Rod Tr
 Out of stock
£23.08 £19.23

  15 Transmission Belt WE2281110A
Transmission Belt
 In stock
£58.21 £48.51

  16 PTO Belt WE229503401
PTO Belt
 In stock
£89.52 £74.60

  17 Brake Return Spring WE25812201
Brake Return Spring
 Out of stock
£10.43 £8.69

  18 Belt Keeper WE307187100
Belt Keeper
 Out of stock
£14.53 £12.11

  19 Engine Pulleymag Stop Clutch WE31330500
Engine Pulleymag Stop Clutch
 Out of stock
£243.48 £202.90

  20 Sweeper Jockey Cap WE31351100
Sweeper Jockey Cap
 Out of stock
£29.33 £24.44

  21 C Series H.Brake Engage Rod 10 WE318952401
C Series H.Brake Engage Rod 10
 Out of stock
£69.48 £57.90

  22 Elec.Clutch Magstop WE44936100
Elec.Clutch Magstop
 In stock
£299.16 £249.30

  23 Oilite Bush WE52824700
Oilite Bush
 Out of stock
£5.42 £4.52

  25 Shield Wdecals 98083 WE02941000
Shield Wdecals 98083
 Out of stock
£0.67 £0.56

  26 M8 X 16 M.Screw BZP 6872
M8 X 16 M.Screw BZP
 In stock
£0.70 £0.58

  27 M10 Locknut 2173
M10 Locknut
 In stock
£0.38 £0.32

  28 M10 Nyloc Nut 2038
M10 Nyloc Nut
 In stock
£0.72 £0.60

  29 Washer 10.8Id X 20.7Od X 2mm T 7282
Washer 10.8Id X 20.7Od X 2mm T
 In stock
£0.34 £0.28

  30 Washer - M8 X 21 X 1.6 2192
Washer - M8 X 21 X 1.6
 In stock
£0.48 £0.40

  31 9 Id X 22 Od X 2mm Thick Washe WE088845300
9 Id X 22 Od X 2mm Thick Washe
 Out of stock
£0.56 £0.47


Description

Countax E Series

E36 - Tractor

From 01-05-2017

12A Chasis Belts (R116L E36) Parts Diagram
