Countax E36 - From 01-05-2017 - 07A Seat And Seat Mount

Name: Countax E36 - From 01-05-2017 - 07A Seat And Seat Mount
SKU: e36_01052017_07a-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax E36 - From 01-05-2017 - 07A Seat And Seat Mount

Description

Countax E Series

E36 - Tractor

From 01-05-2017

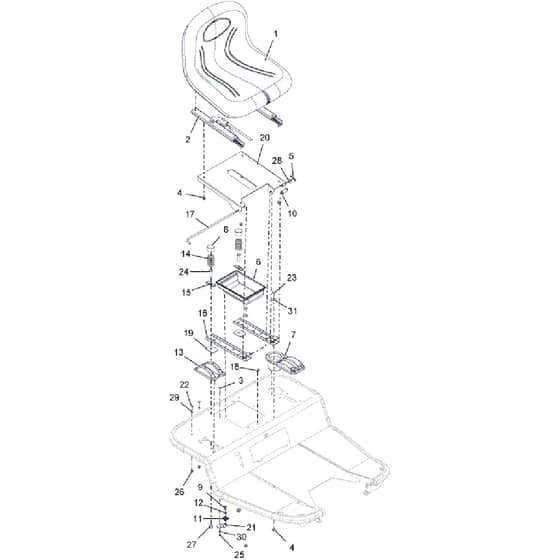

07A Seat And Seat Mount Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE148021800 Available to backorder	Seat Milsco Sp390 With Adjuste	£310.92 £259.10
3	2115 Available to backorder	Flanged Button Head Bolt - V20	£0.88 £0.73
5	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
6	WE148003700 Available to backorder	He Series Toolbox	£24.94 £20.78
7	WE148013900 Available to backorder	C Series 2002 Cup Holder	£22.42 £18.68
8	WE148021400 Available to backorder	Cap Round Plastic 34mm X 19.05	£3.30 £2.75
9	WE148996800 In stock	Stud Turn Slot	£7.24 £6.03
10	WE149498600 Available to backorder	Spcr Nylon Black 35mm (3120841	£1.67 £1.39
11	WE149499900 In stock	Dzus Receptacle	£4.20 £3.50
12	WE149500000 Available to backorder	Dzus 1.4 Turn Retain Washer	£2.10 £1.75
13	WE149550700 Available to backorder	Manual Deck Lift RH Rear Body	£28.78 £23.98
14	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
16	WE301985800 Available to backorder	Seat Attachment Channel 2008	£53.22 £44.35
17	WE313018200 Available to backorder	Rod Seat Pivot - E36	£3.24 £2.70
18	WE52849700 Available to backorder	Grommet Small	£0.96 £0.80
22	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037	£0.28 £0.23
23	6872 In stock	M8 X 16 M.Screw BZP	£0.70 £0.58
24	WE019479100 Available to backorder	Bolt M10X40 Scarifier 00	£1.92 £1.60
25	2047 In stock	Nut	£0.90 £0.75
26	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.46 £0.38
27	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.40 £0.33
28	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
29	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
30	2053 In stock	M5 Washer Form C O.D 12.5mm	£0.54 £0.45
31	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
