Countax E36 - From 01-05-2017 - 06B Fuse And Relay Mounting Assy

Description

Countax E Series

E36 - Tractor

From 01-05-2017

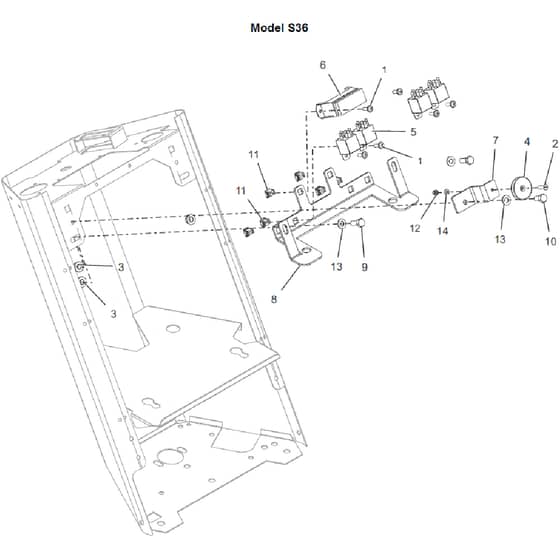

06B Fuse And Relay Mounting Assy Parts Diagram

	Part No.	Details
1	2035 In stock	M5 X 16mm Flang Butt Hd Sckt D	£0.48 £0.40
2	WE029429100 Available to backorder	Screw M5 X 20 Csk Hd Nylon	£0.56 £0.47
4	WE119072500 Available to backorder	Magnet Bonnet Catch	£13.76 £11.47
5	WE449562700 In stock	Electric Relay 12V . 30A With	£18.70 £15.58
6	WE448017700 Available to backorder	Fuse Box 6 Way	£13.31 £11.09
7	WE549119700 Available to backorder	Brkt Magnet Catch	£5.35 £4.46
8	WE549220700 Available to backorder	Brkt Fuse & Relay	£7.37 £6.14
9	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
10	6872 In stock	M8 X 16 M.Screw BZP	£0.48 £0.40
11	2144 Available to backorder	M5 Cage Nut 3mm Mat	£1.63 £1.36
12	2047 In stock	Nut	£0.34 £0.28
