Countax E36 - From 01-05-2017 - 02C Chassis (W216K E36 Mulcher)

Description

Countax E Series

E36 - Tractor

From 01-05-2017

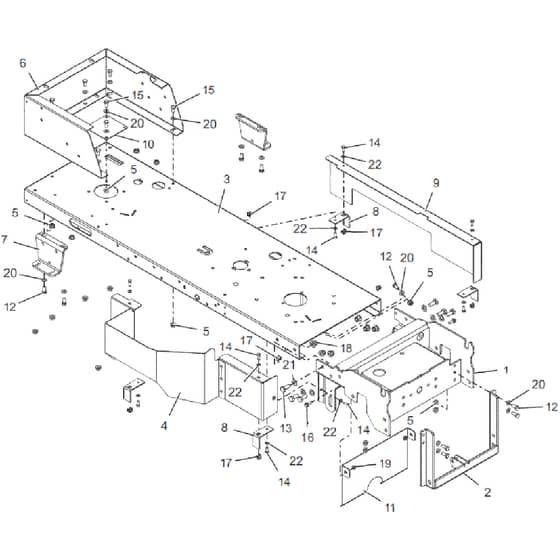

02C Chassis (W216K E36 Mulcher) Parts Diagram

	Part No.	Details
1	WE329700100 Available to backorder	Asm Chassis Front Welded	£128.04 £106.70
2	WE329700400 Available to backorder	Asm Deck Tension Cradle	£37.74 £31.45
3	WE329700500 Available to backorder	Asm Chassis	£108.84 £90.70
7	WE307025900 Available to backorder	C Series Transaxle Brkt 2000 -	£48.54 £40.45
8	WE542006400 Available to backorder	RH Chassis Fixing Angle	£1.94 £1.62
11	WE549101300 Available to backorder	Brkt Clutch Guard	£14.08 £11.73
12	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
13	8420 In stock	M10 X 25 S.Screw BZP	£0.48 £0.40
14	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
15	6872 In stock	M8 X 16 M.Screw BZP	£0.48 £0.40
16	WE019484600 Available to backorder	M6 X 20 Flange Bolts(Non Serra	£1.99 £1.66
17	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
18	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
19	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.47 £0.39
21	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
22	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
