Countax E36 255 Litre Pgc - - 02 Pgc Guards And Handles

Name: Countax E36 255 Litre Pgc - - 02 Pgc Guards And Handles
SKU: countax_pgc_e36255litrepgc___02-group
Price: 0.39 GBP
Availability: InStock

Part No. countax_pgc_e36255litrepgc___02-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax E36 255 Litre Pgc - - 02 Pgc Guards And Handles

Description

Countax E Series

E36 255 LITRE PGC - Power Grass Collector

From To -

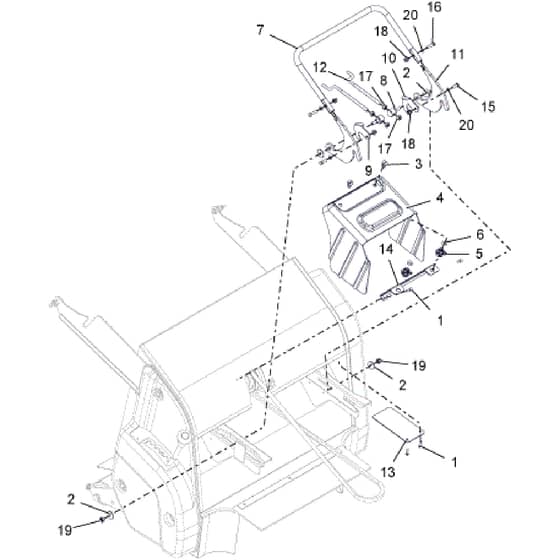

02 Pgc Guards And Handles Parts Diagram

	Part No.	Details
1	2198 In stock	Self Drilling Screw Hex Head 4	£0.60 £0.50
2	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
3	WE148996800 In stock	Stud Turn Slot	£7.76 £6.47
4	WE148997500 Available to backorder	C350 PGC Belt Guard	£103.92 £86.60
5	WE149499900 In stock	Dzus Receptacle	£4.50 £3.75
6	WE149500000 Available to backorder	Dzus 1.4 Turn Retain Washer	£2.06 £1.72
8	WE183003800 In stock	PGC Belt Tension Adjust Trunni	£33.49 £27.91
9	WE30149800 Available to backorder	L.H PGC Lever Lock	£11.42 £9.52
10	WE30150300 Available to backorder	R.H PGC Lever Lock	£11.63 £9.69
11	WE307024500 Available to backorder	Locking Handle Plate	£18.64 £15.53
14	WE549122400 Available to backorder	Bracket PGC Guard Mounting	£15.49 £12.91
15	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037	£0.48 £0.40
16	WE028002900 Available to backorder	Bolt M6X25 Plated	£0.60 £0.50
18	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.47 £0.39
19	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
20	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
