Countax D23-50Ln - From - 02 Front Axle Asembly

Name: Countax D23-50Ln - From - 02 Front Axle Asembly
SKU: d2350ln__02-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax D23-50Ln - From - 02 Front Axle Asembly

Description

Countax D Series

D23-50LN - Tractor

From

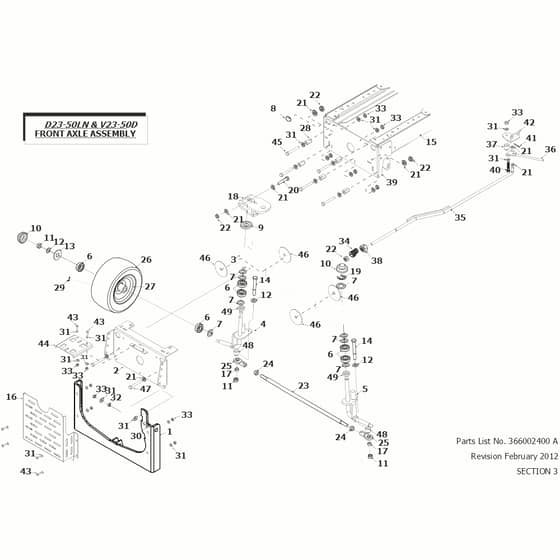

02 Front Axle Asembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327365700 Available to backorder	2005 Deck Tension Cradle Welde	£211.09 £175.91
2	WE327885900 Available to backorder	Axle Beam Bracket Welded Assem	£70.10 £58.42
3	WE327179300 Available to backorder	Kawasaki Solid Front Axle Weld	£191.88 £159.90
4	WE327999100 Available to backorder	Stub Axle RH Welded Assembly	£200.64 £167.20
5	WE327999200 Available to backorder	Stub Axle LH Welded Assembly	£124.08 £103.40
6	WE10802200 In stock	Front Wheel Bearing	£34.52 £28.77
7	WE081258200 Available to backorder	32 X 20 X 1mm Galv Washer	£6.50 £5.42
8	WE52848000 Available to backorder	Grommet Large	£1.76 £1.47
9	WE27122900 Available to backorder	A & C330 Front Axle RH Slinger	£10.70 £8.92
10	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
11	WE049381100 Available to backorder	M12 Nyloc Nut	£0.48 £0.40
12	2114 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
13	WE30127800 Available to backorder	Hub Cap Washer	£1.97 £1.64
14	WE019478500 Available to backorder	M12 X 80mm Bolt	£1.98 £1.65
15	WE327885600 Available to backorder	Chassis (Yanmar)	£165.40 £137.83
16	WE541127400 Available to backorder	Heat Shield (Diesel Yanmar)	£50.76 £42.30
17	WE183012800 Available to backorder	20.50 Steering Link Rod Spacer	£7.98 £6.65
18	WE327999500 Available to backorder	Steering Arm Welded Assembly (	£89.38 £74.48
19	2147 In stock	E Clip 3.4	£0.88 £0.73
20	WE018005000 Available to backorder	M10 X 60mm Coach Bolt Zinc.Cl	£0.67 £0.56
21	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
22	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
23	WE183017000 Available to backorder	D1850Diesel M12 Track Rod - Cu	£91.64 £76.37
25	WE108728000 Available to backorder	M12 Rod Joint 20.50	£34.94 £29.12
26	WE198000600 Available to backorder	20.50 Front Tyre 16X6.50 8Nhs	£105.13 £87.61
27	WE198000700 Available to backorder	20.50 Front Wheel Rim	£82.55 £68.79
28	WE189502900 Available to backorder	K & D Axle Beam Plate Spacer	£6.56 £5.47
29	WE14889200 Available to backorder	Wheel Valve	£10.93 £9.11
30	WE018005700 Available to backorder	Hx Hd Bolt Zink Plt & Clear Pa	£0.89 £0.74
31	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
32	WE31302800 Available to backorder	Spacer 7mm X 5.16Id	£9.80 £8.17
33	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
34	WE189507400 Available to backorder	Deck Tension Cradle Adjuster N	£19.64 £16.37
35	WE327999600 Available to backorder	Deck Tension Rod Welded Assemb	£57.60 £48.00
36	WE327887700 Available to backorder	Deck Tension Lever Welded Ass	£3.54 £2.95
37	WE18317400 Available to backorder	Deck Height Pivot Boss	£8.96 £7.47
38	WE049382500 Available to backorder	M16 Half Nut BZP	£1.66 £1.38
39	WE327885800 Available to backorder	Chasis Front Welded Assembly	£160.37 £133.64
40	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
41	2197 Available to backorder	Split Pin 1 X 1.8 (Snowblade)	£0.47 £0.39
42	WE541098200 Available to backorder	Deck Tension Lever Brack(Dies	£6.98 £5.82
43	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
44	WE541096100 Available to backorder	Diesel Yanamr Exhaust Bracket	£6.40 £5.33
45	WE028663400 Available to backorder	M8 X 65mm Hex Head Bolt Zinc P	£0.96 £0.80
46	WE307243800 Available to backorder	Diesel & Kawasaki Axle Wear Pa	£14.66 £12.22
47	WE018005300 Available to backorder	M10 X 65mm Hex Head Bolt - BZP	£0.67 £0.56
48	WE183012700 Available to backorder	20.50 Steering Link Rod Spacer	£13.04 £10.87
49	WE183006200 Available to backorder	Stub Axle Spacer	£7.94 £6.62
