Countax D23-50Ln - From 01-01-2010 To 01-02-2012 - 15 Seatbox

Name: Countax D23-50Ln - From 01-01-2010 To 01-02-2012 - 15 Seatbox
SKU: d2350ln_01012010_01022012_15-group
Price: 0.28 GBP
Availability: InStock

Part No. d2350ln_01012010_01022012_15-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax D23-50Ln - From 01-01-2010 To 01-02-2012 - 15 Seatbox

Description

Countax D Series

D23-50LN - Tractor

From 01-01-2010 To 01-02-2012

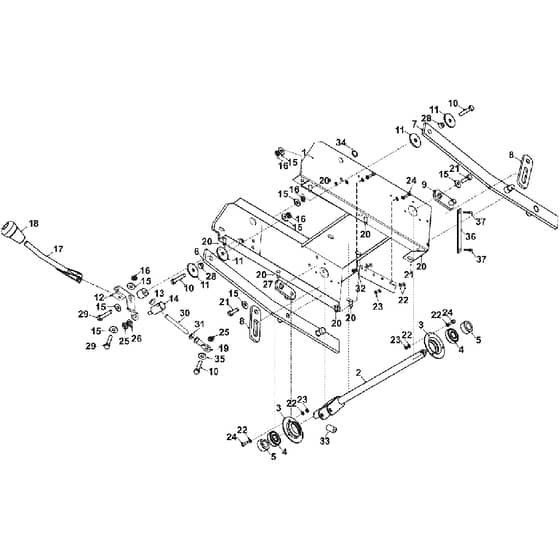

15 Seatbox Assembly Parts Diagram

	Part No.	Details
1	WE327010401 Available to backorder	2050 Seat Box Welded Assembly	£132.12 £110.10
2	WE328968700 Available to backorder	D23-50Ln Sweeper Lift Bar Weld	£55.16 £45.97
3	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
4	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
5	WE31323500 Available to backorder	H.E Lift Bar Spacer	£20.44 £17.03
6	WE32720300 Available to backorder	H.E. Sweeper Lift Arm R.H	£132.48 £110.40
7	WE32721100 Available to backorder	H.E. Sweper Lift Arm L.H	£109.32 £91.10
8	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£31.61 £26.34
9	WE327171700 Available to backorder	LH Sweeper Crossbar Con Plate	£39.14 £32.62
10	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zin	£0.85 £0.71
11	WE08824600 Available to backorder	Washer 40mm X 10mm	£0.97 £0.81
13	WE183027400 Available to backorder	C Series H.Brake Chassis Joggl	£12.84 £10.70
14	WE183851700 Available to backorder	Diesel PTO Jockey Pulley Trunn	£1.32 £1.10
15	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
16	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
17	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
18	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
19	WE10872600 In stock	10mm Rod End	£20.66 £17.22
20	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
21	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
23	2047 In stock	Nut	£0.34 £0.28
25	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
26	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
27	WE327171600 Available to backorder	RH Sweep Lift Crossbar Con Pl	£40.06 £33.38
28	WE189502700 Available to backorder	Spacer 12.7Od. 10.2 Id . 9mm L	£28.09 £23.41
29	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
30	WE183851600 Available to backorder	Diesel PTO Jock Thread Rod	£1.45 £1.21
31	WE049382500 Available to backorder	M16 Half Nut BZP	£1.72 £1.43
32	WE541113200 Available to backorder	Diesel Relay Mounting Bracket	£0.83 £0.69
33	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£9.26 £7.72
34	WE52849700 Available to backorder	Grommet Small	£1.00 £0.83
35	WE189505300 Available to backorder	10mm Rose Joint Spacer	£1.99 £1.66
36	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.32 £6.93
37	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
