Countax D18-50 - From - 4 Deck Hanging

Name: Countax D18-50 - From - 4 Deck Hanging
SKU: d1850__4d-group
Price: 0.32 GBP
Availability: InStock

Part No. d1850__4d-group

Description

Countax D Series

D18-50 - Tractor

From

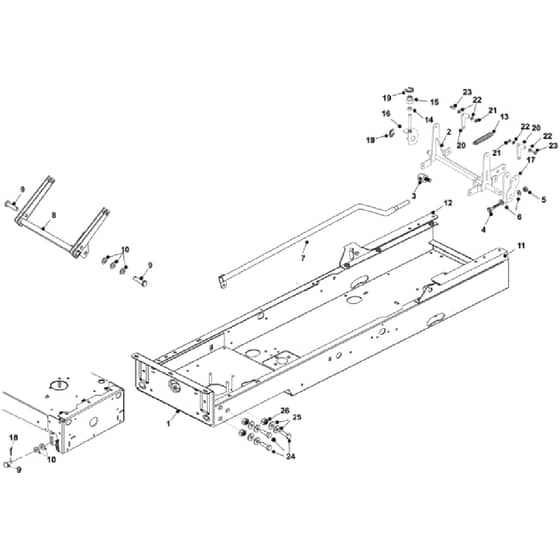

4 Deck Hanging Assembly Parts Diagram

	Part No.	Details
2	WE321126200 Available to backorder	Diesel Rear Deck Hanging Cradle Assy	£152.40 £127.00
3	WE189497500 Available to backorder	2002 Tractor Deck Level Trunio	£26.23 £21.86
4	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
5	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
6	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
7	WE327015500 Available to backorder	D1850 Deck Level Rod Assembly	£83.52 £69.60
8	WE32703701 Available to backorder	Deck Carry Cradle Assembly Fro	£186.12 £155.10
9	WE31339401 In stock	Deck Swing Lift Pin 1.2 X 46.5	£21.05 £17.54
12	WE327009300 Available to backorder	20.50 L.H T.Axle Mounting Brac	£75.24 £62.70
13	WE25885300 Available to backorder	Deck Assist Spring	£19.55 £16.29
14	WE049382500 Available to backorder	M16 Half Nut BZP	£1.72 £1.43
15	WE189501800 Available to backorder	Deck Level Hex Adjuster Nut -	£16.74 £13.95
16	WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Ad	£35.21 £29.34
17	WE30840300 Available to backorder	Extended Deck Lift Arm Hiwin A	£60.83 £50.69
18	2197 In stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
19	2147 In stock	E Clip 3.4	£0.91 £0.76
20	WE301143200 Available to backorder	Multible Deck Lift Link	£59.98 £49.98
21	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
23	WE018005700 Available to backorder	Hx Hd Bolt Zink Plt & Clear Pa	£0.91 £0.76
24	8420 In stock	M10 X 25 S.Screw BZP	£0.48 £0.40
