Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

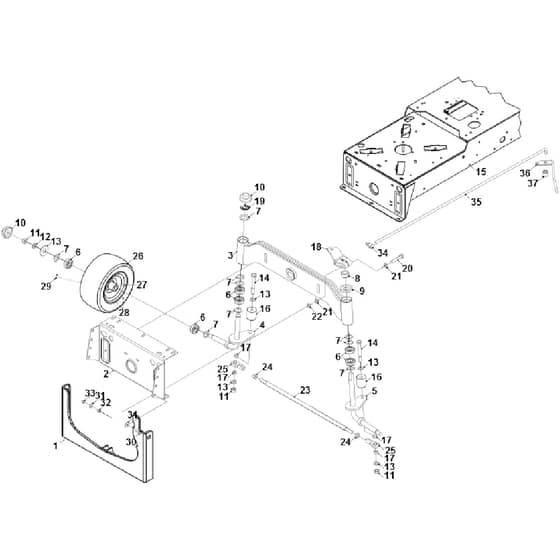

3 Front Axel Assembly Parts Diagram

Ref. Img. Part No. Details
  1 2005 Deck Tension Cradle Welde
2005 Deck Tension Cradle Welde
WE327365700 Out of stock
2005 Deck Tension Cradle Welde
£211.68 £176.40

  2 D And K 5mm Axle Carrier
D And K 5mm Axle Carrier
WE307243300 Out of stock
D And K 5mm Axle Carrier
£32.75 £27.29

  3 Kawasaki Solid Front Axle Weld
Kawasaki Solid Front Axle Weld
WE327179300 Out of stock
Kawasaki Solid Front Axle Weld
£192.36 £160.30

  4 R.H Stub Axle 2002
R.H Stub Axle 2002
WE327178200 Out of stock
R.H Stub Axle 2002
£133.32 £111.10

  5 LH Stub Axle Welded Assy 2002
LH Stub Axle Welded Assy 2002
WE327178300 Out of stock
LH Stub Axle Welded Assy 2002
£207.72 £173.10

  6 Front Wheel Bearing
Front Wheel Bearing
WE10802200 In stock
Front Wheel Bearing
£35.70 £29.75

  7 Washer 32 X 19.5
Washer 32 X 19.5
2093 In stock
Washer 32 X 19.5
£2.50 £2.08

  8 H.E Lift Bar Spacer
H.E Lift Bar Spacer
WE31323500 Out of stock
H.E Lift Bar Spacer
£21.52 £17.93

  9 Slinger
Slinger
WE32121800 In stock
Slinger
£16.37 £13.64

  10 A & C330 Front Axle RH Slinger
A & C330 Front Axle RH Slinger
WE27122900 Out of stock
A & C330 Front Axle RH Slinger
£11.64 £9.70

  11 M12 Nyloc Nut
M12 Nyloc Nut
WE049381100 Out of stock
M12 Nyloc Nut
£0.28 £0.23

  12 Washer - M12 X 24 X 1.6
Washer - M12 X 24 X 1.6
2114 Out of stock
Washer - M12 X 24 X 1.6
£0.47 £0.39

  13 Hub Cap Washer Front Wheel
Hub Cap Washer Front Wheel
WE30128100 In stock
Hub Cap Washer Front Wheel
Was £4.75 £3.96 Special Price £3.16 £2.63

  14 Bolt M12 X 120mm
Bolt M12 X 120mm
WE18002200 Out of stock
Bolt M12 X 120mm
£0.58 £0.48

  15 D1850 Chassis Welded Assy 2007
D1850 Chassis Welded Assy 2007
WE32956800 Out of stock
D1850 Chassis Welded Assy 2007
£500.96 £417.47

  17 20.50 Steering Link Rod Spacer
20.50 Steering Link Rod Spacer
WE183012800 Out of stock
20.50 Steering Link Rod Spacer
£8.70 £7.25

  19 19mm External Circlip C1A1400.
19mm External Circlip C1A1400.
2012 In stock
19mm External Circlip C1A1400.
£0.23 £0.19

  20 M10 X 55 Hex Head Bolt
M10 X 55 Hex Head Bolt
WE018002400 Out of stock
M10 X 55 Hex Head Bolt
£0.71 £0.59

  21 Washer 10.8Id X 20.7Od X 2mm T
Washer 10.8Id X 20.7Od X 2mm T
7282 In stock
Washer 10.8Id X 20.7Od X 2mm T
£0.34 £0.28

  22 M10 Nyloc Nut
M10 Nyloc Nut
2038 In stock
M10 Nyloc Nut
£0.72 £0.60

  23 D1850Diesel M12 Track Rod - Cu
D1850Diesel M12 Track Rod - Cu
WE183017000 In stock
D1850Diesel M12 Track Rod - Cu
£60.72 £50.60

  25 M12 Rod Joint 20.50
M12 Rod Joint 20.50
WE108728000 Out of stock
M12 Rod Joint 20.50
£35.02 £29.18

  26 20.50 Front Tyre 16X6.50 8Nhs
20.50 Front Tyre 16X6.50 8Nhs
WE198000600 Out of stock
20.50 Front Tyre 16X6.50 8Nhs
£105.96 £88.30

  27 20.50 Front Wheel Rim
20.50 Front Wheel Rim
WE198000700 Out of stock
20.50 Front Wheel Rim
£79.20 £66.00

  28 Adk Front Wheel Assy
Adk Front Wheel Assy
WE198005100 Out of stock
Adk Front Wheel Assy
£196.40 £163.67

  29 Wheel Valve
Wheel Valve
WE14889200 Out of stock
Wheel Valve
£10.93 £9.11

  30 Hx Hd Bolt Zink Plt & Clear Pa
Hx Hd Bolt Zink Plt & Clear Pa
WE018005700 Out of stock
Hx Hd Bolt Zink Plt & Clear Pa
£0.89 £0.74

  31 Washer - M8 X 21 X 1.6
Washer - M8 X 21 X 1.6
2192 In stock
Washer - M8 X 21 X 1.6
£0.48 £0.40

  32 Spacer 7mm X 5.16Id
Spacer 7mm X 5.16Id
WE31302800 Out of stock
Spacer 7mm X 5.16Id
£10.68 £8.90

  33 M8 Nyloc Nut
M8 Nyloc Nut
2111 In stock
M8 Nyloc Nut
£0.28 £0.23

  34 Deck Tension Cradle Adjuster N
Deck Tension Cradle Adjuster N
WE189507400 Out of stock
Deck Tension Cradle Adjuster N
£13.01 £10.84

  36 Ad Deck Ten Lvr Ass
Ad Deck Ten Lvr Ass
WE32958300 Out of stock
Ad Deck Ten Lvr Ass
£15.84 £13.20

  37 Deck Height Pivot Boss
Deck Height Pivot Boss
WE18317400 Out of stock
Deck Height Pivot Boss
£9.74 £8.12


Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

3 Front Axel Assembly Parts Diagram
