Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

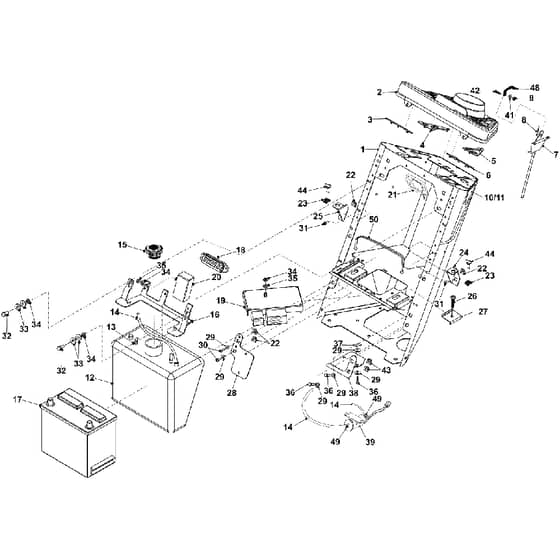

2 Console Assembly Parts Diagram

Ref. Img. Part No. Details
  1 2003 Diesel Consol Welded Asse WE328957300
2003 Diesel Consol Welded Asse
Out of stock
£219.86 £183.22

  2 New C Series Consol Top - 2002 WE148012801
New C Series Consol Top - 2002
Out of stock
£67.20 £56.00

  4 Insert Lower Right WE148013200
Insert Lower Right
Out of stock
£4.32 £3.60

  5 New Consol Top - Lower Left WE148013100
New Consol Top - Lower Left
Out of stock
£4.31 £3.59

  6 New Consol Top - Upper Left WE148012900
New Consol Top - Upper Left
Out of stock
£4.31 £3.59

  8 Rivet 4.8 X 16mm Alloy Pop 103 WE12860100
Rivet 4.8 X 16mm Alloy Pop 103
Out of stock
£1.36 £1.13

  9 M4 Nyloc T WE04826400
M4 Nyloc T
Out of stock
£0.36 £0.30

  12 Fuel Tank WE14803000
Fuel Tank
Out of stock
£88.20 £73.50

  13 Fuel Level Sender 208mm Long 1 WE449665300
Fuel Level Sender 208mm Long 1
Out of stock
£57.12 £47.60

  14 Diesel Fuel Return Pipe D18. WE528004200
Diesel Fuel Return Pipe D18.
Out of stock
£10.66 £8.88

  15 Fuel Cap WE01538400
Fuel Cap
In stock
£13.62 £11.35

  16 Fuel Tank Bracket With Dial-A- WE307205800
Fuel Tank Bracket With Dial-A-
Out of stock
£21.12 £17.60

  17 Yuasa Ybx3057 Battery 12V 45Ah 400A WE458142000
Yuasa Ybx3057 Battery 12V 45Ah 400A
Out of stock
£195.20 £162.67

  18 2002 Fusebox Holder WE301139400
2002 Fusebox Holder
Out of stock
£27.24 £22.70

  19 Main & He Diesel Pcb 2004 WE449560800
Main & He Diesel Pcb 2004
Out of stock
£497.28 £414.40

  20 Actuator C.W Potentiometer WE448007700
Actuator C.W Potentiometer
Out of stock
£311.16 £259.30

  20 Dk Height Pcb Ptd (Hiwin) Adkj WE448016202
Dk Height Pcb Ptd (Hiwin) Adkj
Out of stock
£184.44 £153.70

  21 K & D Pcb 04 ( Send With 1 X 1 WE449561000
K & D Pcb 04 ( Send With 1 X 1
Out of stock
£183.24 £152.70

  22 M5 Cage Nut 3mm Mat 2144
M5 Cage Nut 3mm Mat
Out of stock
£1.40 £1.17

  23 Dzus Receptacle WE149499900
Dzus Receptacle
In stock
£4.34 £3.62

  24 A+K Series Side Panel Catch RH WE301142800
A+K Series Side Panel Catch RH
Out of stock
£5.03 £4.19

  25 A+K Series Side Panel Catch LH WE301142700
A+K Series Side Panel Catch LH
Out of stock
£5.03 £4.19

  26 M8X40mm Bright Zinc Plate Bolt WE018003200
M8X40mm Bright Zinc Plate Bolt
Out of stock
£0.71 £0.59

  28 2003 Diesel Regulator Bracket WE307196700
2003 Diesel Regulator Bracket
Out of stock
£21.66 £18.05

  30 Bolt M6 X 20mm (Vac) ( Af037 2148
Bolt M6 X 20mm (Vac) ( Af037
Out of stock
£0.28 £0.23

  31 M5 X 16mm Flang Butt Hd Sckt D 2035
M5 X 16mm Flang Butt Hd Sckt D
In stock
£0.41 £0.34

  32 Screw Hex Hd Din933 M8 X 20 G 7735
Screw Hex Hd Din933 M8 X 20 G
In stock
£0.58 £0.48

  33 Washer - M8 X 21 X 1.6 2192
Washer - M8 X 21 X 1.6
In stock
£0.48 £0.40

  34 M8 Nyloc Nut 2111
M8 Nyloc Nut
In stock
£0.28 £0.23

  35 Washer 5.16 T3 Lp Zinc Plated WE08819500
Washer 5.16 T3 Lp Zinc Plated
Out of stock
£1.36 £1.13

  36 M6X16mm Set Screw 2184
M6X16mm Set Screw
Out of stock
£1.74 £1.45

  37 Nut M6 Nyloc 7578
Nut M6 Nyloc
In stock
£0.29 £0.24

  38 2004 Diesel Fuel Pump Bracket WE301143600
2004 Diesel Fuel Pump Bracket
Out of stock
£10.62 £8.85

  39 Fuel Pump Assy WE11820052100
Fuel Pump Assy
Out of stock
£343.52 £286.27

  42 M4 X 12 Pozi Pan S.S Zinc Plat 2045
M4 X 12 Pozi Pan S.S Zinc Plat
In stock
£0.19 £0.16

  43 M6 X 3mm Captive Nut WE049381900
M6 X 3mm Captive Nut
Out of stock
£1.16 £0.97

  44 Dzus 1.4 Turn Alpha Console Wr WE149501800
Dzus 1.4 Turn Alpha Console Wr
Out of stock
£1.36 £1.13

  48 Control Knob (Throttle Cable) WE14810400
Control Knob (Throttle Cable)
Out of stock
£13.99 £11.66

  49 Jubilee Clip (Fuel Tank Hose) WE11856900
Jubilee Clip (Fuel Tank Hose)
Out of stock
£2.40 £2.00

  50 Battery Strap WE149499500
Battery Strap
In stock
£32.10 £26.75


Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

2 Console Assembly Parts Diagram
