Countax D18-50 - From 01-01-2007 To 01-01-2009 - 13 Transmission

Description

Countax D Series

D18-50 - Tractor

From 01-01-2007 To 01-01-2009

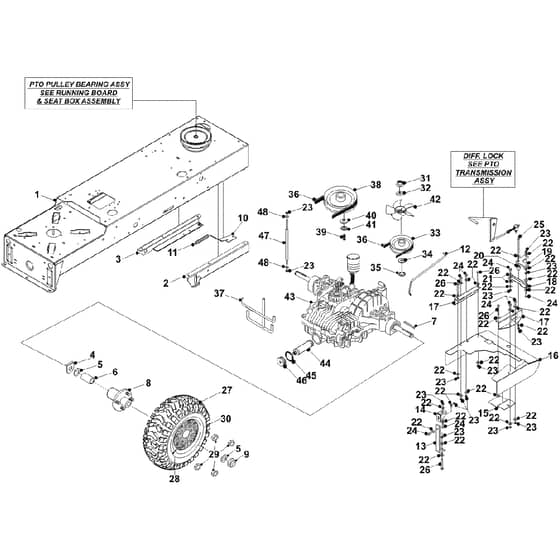

13 Transmission Assembly Parts Diagram

	Part No.	Details
1	WE328957200 Available to backorder	2003 Diesel Chassis Welded Ass	£360.79 £300.66
2	WE327179600 Available to backorder	K1850 LH Transaxle Bracket Wel	£96.00 £80.00
3	WE327179700 Available to backorder	K1850 RH Transaxle Bracket Wel	£96.00 £80.00
4	WE307191901 Available to backorder	K62 . 66 Transaxle Thrust Wash	£14.54 £12.12
5	2151 Available to backorder	Washer Transaxle	£3.48 £2.90
6	WE183018501 Available to backorder	2050 Wheel Spacer	£23.48 £19.57
7	3666 In stock	Key 1.4 X 1.4	£4.99 £4.16
8	WE198001300 Available to backorder	20.50 Rear Wheel Hub - Hukey-0	£69.48 £57.90
9	WE14811800 In stock	Hub Cap (Moulded)	£6.90 £5.75
10	WE301119601 Available to backorder	2050 Spring Finger Plate	£12.72 £10.60
11	WE307183500 Available to backorder	V20.50 Deck Lift Spring Anchor	£21.28 £17.73
12	WE313010600 Available to backorder	20.50 Dump Valve Rod	£60.17 £50.14
13	WE292003500 Available to backorder	20.50 R.H Transaxle Support Ba	£18.29 £15.24
14	WE30137700 Available to backorder	Torque Bracket	£19.34 £16.12
15	WE307188800 Available to backorder	K66 Transaxle Hydraulic Loop P	£9.89 £8.24
16	WE301120500 Available to backorder	D1850 Grass Transaxle Deflecto	£41.17 £34.31
17	WE301119500 Available to backorder	20.50 Transaxle Grass Deflecto	£97.92 £81.60
18	WE301119300 Available to backorder	20.50 Diff Lock Pedal Link Pla	£42.20 £35.17
19	WE301119200 Available to backorder	20.50 Diff Lock Pedal Link Cra	£26.50 £22.08
20	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.98 £4.98
21	WE31305100 Available to backorder	PTO Plate Spacer	£59.75 £49.79
22	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
24	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
25	WE019478400 Available to backorder	Bolt 110mm X M8	£1.18 £0.98
26	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.73 £0.61
27	WE198000400 Available to backorder	20.50 Rear Tyre 23X10.5012Nhst	£240.12 £200.10
28	WE14889200 Available to backorder	Wheel Valve	£11.30 £9.42
29	WE048000800 In stock	20.50 Wheel Nut	£3.56 £2.97
30	WE198000500 Available to backorder	20.50 Rear Rim Assy	£180.12 £150.10
31	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.41 £0.34
32	WE089418800 Available to backorder	2050 Transaxle Fan Washer	£1.99 £1.66
33	WE20904400 Available to backorder	20.50 Hydrostatic Box Pulley	£29.89 £24.91
36	WE228001401 Available to backorder	PTO Belt	£69.24 £57.70
38	WE20870702 Available to backorder	7 PTO Pulley	£86.52 £72.10
39	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.48 £0.40
40	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
41	6408 In stock	M8 Internally Serrated Shakepr	£0.48 £0.40
42	TT1A632085100 Available to backorder	20.50 Hydro Cooling Fan	£24.37 £20.31
43	WE479389100 Available to backorder	K66 Transaxle	£831.23 £692.69
44	WE1A637026450 Available to backorder	Filter	£81.00 £67.50
47	WE313019100 Available to backorder	20.50 L.H T.Axle Steady Rod	£35.14 £29.28
