Countax D18-50 - From 01-01-2004 To 01-01-2007 - 13 Transmission

Name: Countax D18-50 - From 01-01-2004 To 01-01-2007 - 13 Transmission
SKU: d1850_01012004_01012007_13-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax D18-50 - From 01-01-2004 To 01-01-2007 - 13 Transmission

Description

Countax D Series

D18-50 - Tractor

From 01-01-2004 To 01-01-2007

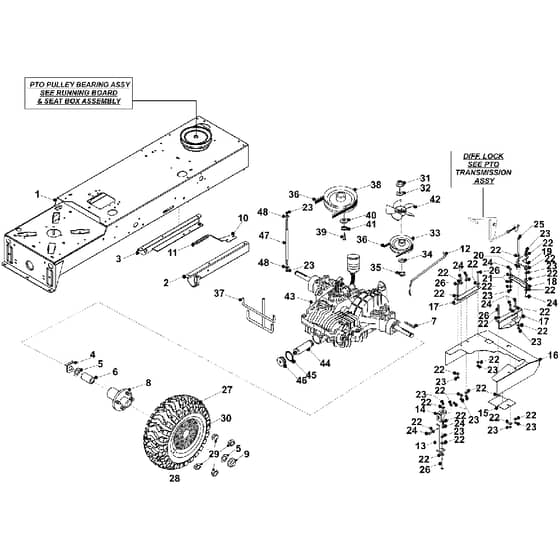

13 Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE328957200	2003 Diesel Chassis Welded Ass	Out of stock	£421.68 £351.40
2	WE327179600	K1850 LH Transaxle Bracket Wel	Out of stock	£95.96 £79.97
3	WE327179700	K1850 RH Transaxle Bracket Wel	Out of stock	£95.96 £79.97
4	WE307191901	K62 . 66 Transaxle Thrust Wash	Out of stock	£11.66 £9.72
5	2151	Washer Transaxle	Out of stock	£3.24 £2.70
6	WE183018501	2050 Wheel Spacer	Out of stock	£19.24 £16.03
7	3666	Key 1.4 X 1.4	In stock	£4.99 £4.16
8	WE198001300	20.50 Rear Wheel Hub - Hukey-0	Out of stock	£70.20 £58.50
9	WE14811800	Hub Cap (Moulded)	Out of stock	£6.79 £5.66
10	WE301119601	2050 Spring Finger Plate	Out of stock	£12.30 £10.25
11	WE307183500	V20.50 Deck Lift Spring Anchor	Out of stock	£20.57 £17.14
12	WE313010600	20.50 Dump Valve Rod	Out of stock	£58.30 £48.58
13	WE292003500	20.50 R.H Transaxle Support Ba	Out of stock	£19.24 £16.03
14	WE30137700	Torque Bracket	Out of stock	£19.73 £16.44
15	WE307188800	K66 Transaxle Hydraulic Loop P	Out of stock	£9.56 £7.97
16	WE301120500	D1850 Grass Transaxle Deflecto	Out of stock	£39.80 £33.17
17	WE301119500	20.50 Transaxle Grass Deflecto	Out of stock	£99.00 £82.50
18	WE301119300	20.50 Diff Lock Pedal Link Pla	Out of stock	£40.80 £34.00
19	WE301119200	20.50 Diff Lock Pedal Link Cra	Out of stock	£25.61 £21.34
20	WE18833700	Pivot (Deck Overlock)	Out of stock	£5.78 £4.82
21	WE31305100	PTO Plate Spacer	Out of stock	£19.91 £16.59
22	2192	Washer - M8 X 21 X 1.6	In stock	£0.48 £0.40
24	7746	Bolt M8 X 25mm	In stock	£0.38 £0.32
25	WE019478400	Bolt 110mm X M8	Out of stock	£1.14 £0.95
26	WE028003200	M8 X 75mm Hex Bolt Zinc Plated Pa	Out of stock	£0.71 £0.59
27	WE198000400	20.50 Rear Tyre 23X10.5012Nhst	Out of stock	£244.06 £203.38
28	WE14889200	Wheel Valve	Out of stock	£10.93 £9.11
29	WE048000800	20.50 Wheel Nut	Out of stock	£3.74 £3.12
30	WE08823500	Starloc Washer 5.16Id X 5.8Od	Out of stock	£0.60 £0.50
31	WE049381600	M10 Flanged Nyloc Nut	Out of stock	£0.40 £0.33
32	WE089418800	2050 Transaxle Fan Washer	Out of stock	£1.92 £1.60
33	WE20904400	20.50 Hydrostatic Box Pulley	Out of stock	£29.15 £24.29
36	WE228001401	PTO Belt	Out of stock	£69.96 £58.30
37	WE327021800	20.50 Double Belt Guide	Out of stock	£6.22 £5.18
38	WE20870702	7 PTO Pulley	Out of stock	£61.92 £51.60
39	7735	Screw Hex Hd Din933 M8 X 20 G	In stock	£0.58 £0.48
40	8417	Washer M8 X 25 X 3 Unplated	In stock	£1.00 £0.83
41	6408	M8 Internally Serrated Shakepr	In stock	£1.34 £1.12
42	TT1A632085100	20.50 Hydro Cooling Fan	Out of stock	£21.04 £17.53
43	WE479389100	K66 Transaxle	Out of stock	£957.60 £798.00
44	WE1A632024320	Filter	Out of stock	£31.78 £26.48
47	WE313019100	20.50 L.H T.Axle Steady Rod	Out of stock	£36.98 £30.82
48	WE08819500	Washer 5.16 T3 Lp Zinc Plated	Out of stock	£1.36 £1.13
