Countax C800H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 5 Rear Body

Name: Countax C800H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 5 Rear Body
SKU: c800hkawasakiengine_01012011_31122013_5r-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 5 Rear Body

Description

Countax C Series

C800H KAWASAKI ENGINE - Tractor

From 01-01-2011 To 31-12-2013

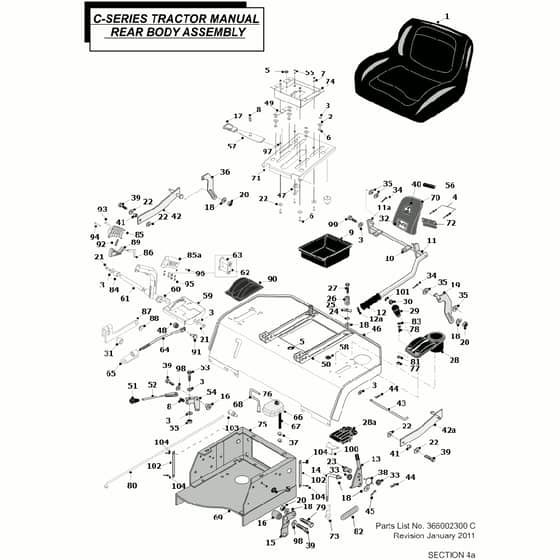

5 Rear Body Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
3	6408 In stock	M8 Internally Serrated Shakepr	£1.34 £1.12
4	WE12950200 Available to backorder	Pop Rivet Lsr 16mm ( PTO Flap	£0.42 £0.35
5	WE52849700 Available to backorder	Grommet Small	£0.96 £0.80
6	6872 In stock	M8 X 16 M.Screw BZP	£0.70 £0.58
7	WE089422300 Available to backorder	M8 X 13 X 1 Mild Steel Washer	£0.96 £0.80
8	WE25831100 Available to backorder	Spring	£7.52 £6.27
9	WE14848500 Available to backorder	Tool Tray	£24.70 £20.58
10	WE32733300 Available to backorder	C-Series PTO Hanging Plate (97	£182.90 £152.42
11	WE32704800 Available to backorder	PTO Pivot End (11a)	£44.14 £36.78
11	WE32733201 Available to backorder	C-Series Sweeper Lift Lever	£272.64 £227.20
12	WE38936500 In stock	Foam Grip ( Fg13 )	£14.08 £11.73
13	WE321124300 Available to backorder	C Series Handbrake Handle Weld	£80.06 £66.72
14	WE318961703 Available to backorder	Universal Handbrake Rod	£62.62 £52.18
15	WE301137800 Available to backorder	C Series Handbrake Chassis Jog	£21.29 £17.74
16	WE183027400 Available to backorder	C Series H.Brake Chassis Joggl	£12.41 £10.34
17	WE149551800 Available to backorder	Tractor Seat Handle 2008	£1.88 £1.57
18	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
19	WE307177100 Available to backorder	Westwood Link Hook Rear	£36.02 £30.02
20	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
21	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
22	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Wash	£0.48 £0.40
23	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
24	WE31330800 Available to backorder	Spacer(He C-Series Seat Spring	£5.24 £4.37
26	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
27	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zin	£0.83 £0.69
28	WE148014000 Available to backorder	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
28	WE148013900 Available to backorder	C Series 2002 Cup Holder	£22.42 £18.68
29	WE149557300 Available to backorder	Handbrake Handle	£15.04 £12.53
30	WE359505100 Available to backorder	H.Brake Handle Badge	£6.88 £5.73
31	WE31323500 Available to backorder	H.E Lift Bar Spacer	£19.76 £16.47
32	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols On	£5.70 £4.75
33	WE149498000 Available to backorder	C Series Handbrake Mechanism N	£6.76 £5.63
34	2197 Available to backorder	Split Pin 1 X 1.8 (Snowblade)	£0.47 £0.39
35	2114 In stock	Washer - M12 X 24 X 1.6	£0.47 £0.39
36	WE30139200 Available to backorder	Sweeper Lift Hook	£32.18 £26.82
37	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
38	WE258000600 Available to backorder	Spring -Handbrake Block Torsio	£4.99 £4.16
39	WE02941000 Available to backorder	Shield Wdecals 98083	£0.67 £0.56
40	WE35809500 Available to backorder	PTO Danger Label	£31.04 £25.87
41	WE18302700 Available to backorder	Spacer	£10.54 £8.78
42	WE32726000 Available to backorder	Tractor PGC Link Arm L.H (42a)	£37.13 £30.94
42	WE32725900 Available to backorder	Tractor PGC Link Arm R.H	£132.28 £110.23
43	WE31301800 Available to backorder	Seat Pivot Rod	£34.58 £28.82
44	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
45	2202 Available to backorder	1.8 X 1.2 Split Pin	£0.47 £0.39
46	WE327812200 Available to backorder	C 4Wd Rear Body Manual Weld As	£198.64 £165.53
47	WE149551900 Available to backorder	Rubber Seat Spring Retainer	£9.26 £7.72
48	WE183025600 Available to backorder	C Series.Westwood Sweeper Ball	£26.34 £21.95
49	WE301985700 Available to backorder	Seat Mechanism Spring Retainer	£33.62 £28.02
50	WE301985800 Available to backorder	Seat Attachment Channel 2008	£53.22 £44.35
51	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
52	WE32708701 Available to backorder	PTO Lever	£50.02 £41.68
53	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.15 £0.96
55	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
56	WE148012200 Available to backorder	Plastic PTO Flap Foam Strip -	£7.67 £6.39
57	WE325000601 Available to backorder	Seat Release Mehcanism Lever A	£17.17 £14.31
58	WE149547500 Available to backorder	1 1.4 Closed Grommet 2mm Mater	£4.55 £3.79
59	WE327805900 Available to backorder	Manual Deck Lift Carry Plate W	£177.68 £148.07
60	WE327805802 Available to backorder	Manual Deck Lift Handle Weld A	£131.06 £109.22
61	WE183528600 Available to backorder	Manual Deck Lift Handle Cross	£30.24 £25.20
62	WE301965300 Available to backorder	Manual Deck Lift Slide Plate	£11.84 £9.87
63	WE183528801 Available to backorder	Manual Deck Lift Link Slide Pi	£6.24 £5.20
64	WE327806200 Available to backorder	C-Series Deck Hgt Adj Yoke Ass	£33.58 £27.98
65	WE327806100 Available to backorder	Manual Deck Lift Adjuster Rod	£55.96 £46.63
67	WE148014800 Available to backorder	K46 Reservoir Hose	£34.42 £28.68
68	WE327012700 Available to backorder	5 Pulley Modified Pig Tail Ass	£31.25 £26.04
69	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
70	WE149496400 Available to backorder	PTO Flap Shell Tractor Manual	£57.82 £48.18
71	WE301985503 Available to backorder	Seat Running Plate 2008	£52.70 £43.92
72	WE149496500 Available to backorder	PTO Flap Hinge- Tractor Manual	£21.12 £17.60
73	WE10872600 In stock	10mm Rod End	£20.30 £16.92
74	WE301985401 Available to backorder	Seat Base Plate 2008	£66.12 £55.10
75	WE327308500 Available to backorder	Foot Control C Series Seatbox	£159.41 £132.84
76	TT168T2024250 In stock	Vent Valve	£14.95 £12.46
77	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
78	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037	£0.28 £0.23
79	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
80	WE318963201 Available to backorder	C Series PTO Rod	£72.62 £60.52
81	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
82	WE25906200 In stock	Deck Tension Spring	£19.78 £16.48
83	WE148014300 Available to backorder	M6 Socket Screw Cap	£0.62 £0.52
84	WE183013800 Available to backorder	D1850Diesel PTO Spacer	£6.50 £5.42
85	WE149550400 Available to backorder	Deck Lift RH Handle Cover Blac	£17.26 £14.38
85	WE149550500 Available to backorder	Deck Lift LH Handle Cover Blac (85a)	£17.26 £14.38
86	WE327878100 Available to backorder	Deck Lift Handle Link Welded A	£58.74 £48.95
87	WE301965400 Available to backorder	A.D Manual Deck Lift Lower Lin	£58.96 £49.13
88	WE183529500 Available to backorder	C-Series Deck Lift Pivot Space	£11.14 £9.28
89	WE149550601 Available to backorder	Manual Deck Lift Handle Trigge	£28.78 £23.98
90	WE149550700 Available to backorder	Manual Deck Lift RH Rear Body	£28.78 £23.98
91	WE313513100 Available to backorder	Clevis Pin	£14.14 £11.78
92	WE259405900 Available to backorder	Manual Deck Lift Handle Spring	£0.96 £0.80
93	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Scre	£1.08 £0.90
94	2107 Available to backorder	M5 X 35 Csk Socket Head Screw	£0.64 £0.53
95	WE07986100 Available to backorder	4mm E-Clip D1500-4mm	£0.64 £0.53
96	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.90 £0.75
97	WE183856700 Available to backorder	Seat Running Plate Spacer	£1.74 £1.45
98	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£19.68 £16.40
99	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
100	WE301151300 Available to backorder	Brake Switch Bracket	£22.40 £18.67
101	WE14946600 Available to backorder	Grommet Foot.Lever Stop	£2.56 £2.13
102	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.04 £6.70
103	WE18318000 Available to backorder	Rider Deck Brake Trunnion	£15.14 £12.62
104	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£0.96 £0.80
