Countax C800 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326

Name: Countax C800 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326
SKU: c800_01011996_01012003_13-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800 - From 01-01-1996 To 01-01-2003 - 13 K55 Tuff Torq Transmission Mk1 Pre 90326

Description

Countax C Series

C800 - Tractor

From 01-01-1996 To 01-01-2003

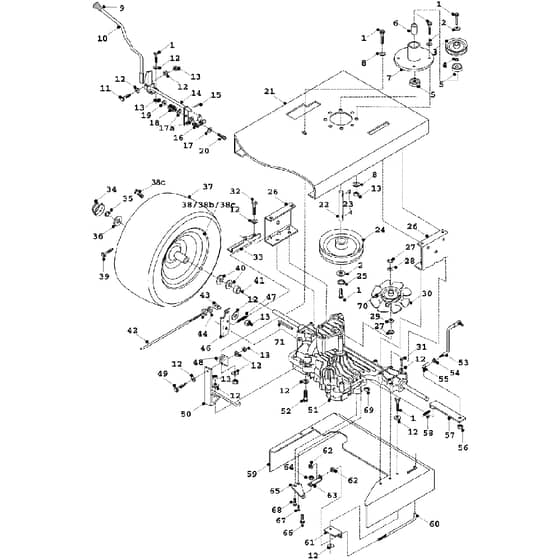

13 K55 Tuff Torq Transmission Mk1 Pre 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2141 In stock	Set Screw	£0.64 £0.53
2	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
3	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.70 £58.92
4	WE31306200 Available to backorder	PTO End Spacer	£35.32 £29.43
5	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
6	WE31334800 Available to backorder	Spacer PTO Centre	£23.80 £19.83
7	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£262.69 £218.91
8	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
9	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
10	WE32702600 Available to backorder	Gear Change Lever Assy	£82.70 £68.92
11	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.96 £0.80
12	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
13	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
14	WE32724300 Available to backorder	Tuff Torq Gear Crossover Assy	£94.70 £78.92
15	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
16	WE30137800 Available to backorder	Friction Plate (Tuff Torq Hydro)	£41.08 £34.23
18	WE25808300 Available to backorder	Brake Rod Spring	£2.51 £2.09
21	WE32702450 Available to backorder	Tractor Chassis New Colour	£280.20 £233.50
22	WE31306000 Available to backorder	PTO Shaft	£99.72 £83.10
23	WE09823900 In stock	Key No 61	£1.22 £1.02
24	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
25	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
26	WE30131600 In stock	Manualhydro Gearbox Bracket	£25.06 £20.88
28	2097 In stock	Washer M14 Form A	£0.20 £0.17
30	WE40505401 In stock	K55 Pulley & Fan Kit	£71.82 £59.85
31	2029 In stock	Bolt 516UNF X 2.12 HT ZP	£0.76 £0.63
32	WE01854700 Available to backorder	Bolt 516X3 12In UNF	£1.08 £0.90
33	WE30138600 Available to backorder	Brake Stop Plate	£8.26 £6.88
34	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
35	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
36	WE30127800 Available to backorder	Hub Cap Washer	£1.97 £1.64
37	WE19802302 Available to backorder	P322 18X9508 Wanda	£124.84 £104.03
38	WE198001300 Available to backorder	2050 Rear Wheel Hub Hukey01 (38b)	£69.46 £57.88
38	WE08823500 Available to backorder	Starloc Washer 516Id X 58Od	£0.60 £0.50
38	WE198002200 Available to backorder	Studs For 20 Wheel Rim 2000 (38c)	£8.30 £6.92
39	WE14889200 Available to backorder	Wheel Valve	£10.93 £9.11
40	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
41	WE31324900 Available to backorder	17mm Wheel Spacer	£38.92 £32.43
42	WE32723900 Available to backorder	Discontinued	£21.72 £18.10
43	WE18325000 Available to backorder	Brake Rod Trunnion (Hydro)	£7.52 £6.27
44	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
46	WE30138500 Available to backorder	Brake Extension Plate	£32.14 £26.78
47	WE25813801 Available to backorder	Safety Switch Spring	£10.48 £8.73
48	WE30137700 Available to backorder	Torque Bracket	£19.68 £16.40
49	2146 Available to backorder	Set Screw	£0.92 £0.77
50	WE32724400 Available to backorder	Torque Arm (Tuff Torq)	£37.16 £30.97
52	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£0.90 £0.75
53	WE31325400 Available to backorder	Speed Select Rod (Tuff Torq Hydro)	£19.44 £16.20
55	WE32879600 Available to backorder	Rider M8 Gear Select Ball Joint	£21.95 £18.29
56	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
57	WE31206000 Available to backorder	Speed Control Arm (Tuff Torq)	£23.74 £19.78
58	WE05916800 Available to backorder	M6 Roll Pin	£2.26 £1.88
59	WE30138100 Available to backorder	K55 Transaxle Deflector	£45.50 £37.92
60	WE18322800 Available to backorder	Dump Valve Rod Tuff Torq	£9.42 £7.85
61	WE30138700 Available to backorder	Discontinued When Stock Gone	£2.09 £1.74
62	2030 In stock	14 UNC Nyloc	£0.28 £0.23
64	2185 Available to backorder	Nyloc Nut14 UNF	£0.60 £0.50
66	2106 In stock	Set Screw	£0.30 £0.25
68	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.64 £1.37
69	WE04917100 Available to backorder	M4 Nyloc Nut	£0.48 £0.40
70	WE22912300 Available to backorder	Transmission Belt	£44.54 £37.12
71	2199 In stock	Keyrear Wheel	£2.75 £2.29
