Countax C800 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle

Name: Countax C800 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle
SKU: c8004wdkawasakiengine_01012011_01122013_7h-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle

Description

Countax C Series

C800 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

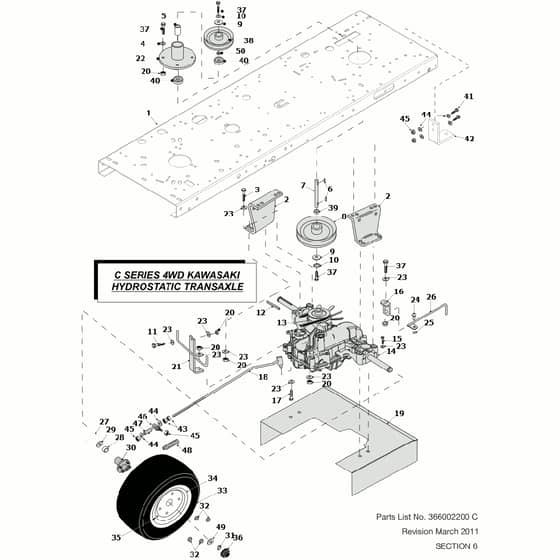

7 Hydrostatic Transaxle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE32954300 Available to backorder	C Series 4Wd Chassis Welded As	£481.20 £401.00
2	WE307025900 Available to backorder	C Series Transaxle Brkt 2000 -	£46.92 £39.10
3	2182 In stock	M8X70mm Hex Bolt Zinc & Clear	£0.70 £0.58
4	WE08819500 Available to backorder	Washer 5.16 T3 Lp Zinc Plated	£1.25 £1.04
5	WE31334800 Available to backorder	Spacer PTO Centre	£23.80 £19.83
6	WE09823900 In stock	Key No 61	£1.22 £1.02
7	WE183013700 Available to backorder	D18.50 Deisel PTO Shaft	£91.36 £76.13
8	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
9	WE08819800 In stock	Washer 5.16Id X 1Od Hd	£19.68 £16.40
10	6408 In stock	M8 Internally Serrated Shakepr	£1.34 £1.12
11	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
12	2199 In stock	Keyrear Wheel	£2.75 £2.29
13	WE229504000 Available to backorder	PTO Belt	£55.76 £46.47
14	TT787Q0324030 Available to backorder	Hydrotx - K574C 2-Port 4Trac	£1,917.60 £1,598.00
15	WE028662700 Available to backorder	Bolt M8X65mm	£0.62 £0.52
16	WE307022200 Available to backorder	Park Brake Switch Brkt - Long	£8.21 £6.84
17	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
19	WE30307101 Available to backorder	2001 C-Series Transaxle Deflec	£140.96 £117.47
20	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
21	WE327020400 Available to backorder	Transaxle Steady Assembly	£12.12 £10.10
22	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£262.69 £218.91
23	2192 In stock	Washer - M8 X 21 X 1.6	£0.47 £0.39
24	WE12855800 Available to backorder	1.4 X 1.2 Steel Flat Hd Solid	£1.44 £1.20
25	WE07868700 Available to backorder	1.4 Starloc Washer	£0.54 £0.45
26	WE321123301 Available to backorder	C-Series Dump Valve Lever Asse	£27.10 £22.58
27	WE307191801 Available to backorder	K46 Transaxle Thrust Washer	£6.00 £5.00
28	WE189503401 Available to backorder	C-Series 4Wd Rear Wheel Spacer	£22.74 £18.95
29	WE081258200 Available to backorder	32 X 20 X 1mm Galv Washer	£6.50 £5.42
30	WE198002000 Available to backorder	Wheel Hub For 20 Wheel C.W Stu	£95.18 £79.32
31	2012 In stock	19mm External Circlip C1A1400.	£0.48 £0.40
32	WE048000901 In stock	C.T Series Rear Wheel Nut	£3.54 £2.95
33	WE198001200 Available to backorder	20 Rear Tyre C-Tractor 20X8.00	£139.50 £116.25
34	WE198001100 Available to backorder	20 C-Series& C4Wd Rear Rim	£119.60 £99.67
35	WE14889200 Available to backorder	Wheel Valve	£10.93 £9.11
36	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
37	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
38	WE208000400 Available to backorder	5 PTO Pulley	£43.04 £35.87
39	WE31306200 Available to backorder	PTO End Spacer	£35.32 £29.43
40	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
41	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30	£0.94 £0.78
42	WE29200101 Available to backorder	Tow Bracket	£86.90 £72.42
43	2173 Available to backorder	M10 Locknut	£0.38 £0.32
44	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
46	WE183019000 Available to backorder	20.50 Jockey Plate Trunnion	£23.90 £19.92
47	WE174008900 Available to backorder	MK3 Park Brake Engage Rod Slee	£21.32 £17.77
48	WE259405100 Available to backorder	20.50 Comp Brake Rod Spring	£3.42 £2.85
49	WE30127800 Available to backorder	Hub Cap Washer	£1.97 £1.64
50	WE088002600 Available to backorder	Zinc Plated M16 Washer Form B	£1.15 £0.96
