Countax C800 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 6 PTO Transmission

Description

Countax C Series

C800 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

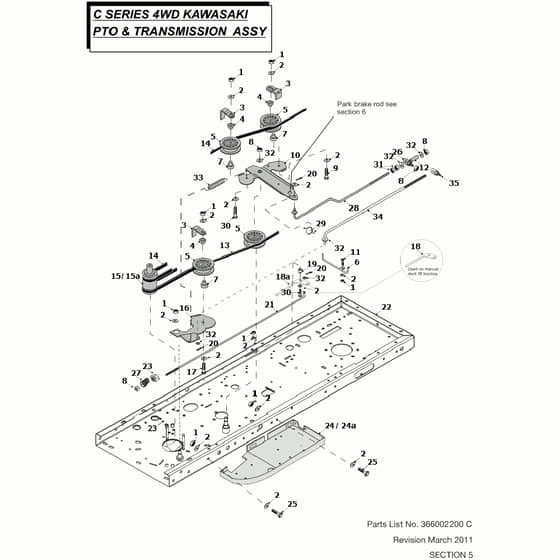

6 Pto Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
2	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
3	WE307187100 Out of stock	Belt Keeper	£14.53 £12.11
4	WE18831600 In stock	Spacer Jockey Wheel	£32.98 £27.48
5	WE20811500 In stock	PTO Jockey Pulley	£23.90 £19.92
6	WE328955500 Out of stock	C & Ww PTO Rear Belt Guide	£17.18 £14.32
7	WE31351100 Out of stock	Sweeper Jockey Cap	£29.33 £24.44
8	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
9	WE018003200 Out of stock	M8X40mm Bright Zinc Plate Bolt	£0.71 £0.59
10	WE328955100 Out of stock	2003 C Series Jockey Pulley P	£74.28 £61.90
11	7735 In stock	Screw Hex Hd Din933 M8 X 20 G	£0.58 £0.48
12	WE183019100 Out of stock	20.50 Brake Rod Tube	£7.75 £6.46
13	WE2281110A In stock	Transmission Belt	£58.21 £48.51
14	WE229504000 Out of stock	PTO Belt	£61.32 £51.10
15	WE32953000 Out of stock	C-Series 4Wd Engine Pulley Wel	£152.40 £127.00
15	WE327847800 Out of stock	C-Series & Ww 4Wd Enigne Pulle (15a)	£114.24 £95.20
16	WE327360700 Out of stock	C Series.Westwood PTO Jockey P	£23.56 £19.63
18	WE541122600 Out of stock	Electric Deck Tension Lever (18a)	£8.66 £7.22
19	WE18833700 Out of stock	Pivot (Deck Overlock)	£5.78 £4.82
20	2197 Out of stock	Split Pin 1 X 1.8 (Snowblade)	£0.48 £0.40
22	WE32954300 Out of stock	C Series 4Wd Chassis Welded As	£601.34 £501.12
23	WE049382500 Out of stock	M16 Half Nut BZP	£1.66 £1.38
24	WE327177701 Out of stock	Hydro RH Angled Running Board	£156.60 £130.50
24	WE327177300 Out of stock	C-Series LH Angled Running Boa (24a)	£79.20 £66.00
25	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
26	WE189514100 Out of stock	C Series 4Wd Park Brake Rod Tr	£23.08 £19.23
27	WE189507400 Out of stock	Deck Tension Cradle Adjuster N	£13.01 £10.84
28	WE318952401 Out of stock	C Series H.Brake Engage Rod 10	£69.48 £57.90
29	WE259405600 Out of stock	Trunnion Damping Spring	£5.35 £4.46
30	WE02941000 Out of stock	Shield Wdecals 98083	£0.67 £0.56
31	2173 In stock	M10 Locknut	£0.38 £0.32
32	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.34 £0.28
33	WE25812201 Out of stock	Brake Return Spring	£8.89 £7.41
34	WE318963201 Out of stock	C Series PTO Rod	£55.56 £46.30
35	WE18318000 Out of stock	Rider Deck Brake Trunnion	£15.14 £12.62
