Countax C800 4Wd - From 01-12-2005 To 01-01-2006 - 10 Deck Tension

Name: Countax C800 4Wd - From 01-12-2005 To 01-01-2006 - 10 Deck Tension
SKU: c8004wd_01122005_01012006_10-group
Price: 0.32 GBP
Availability: InStock

Part No. c8004wd_01122005_01012006_10-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C800 4Wd - From 01-12-2005 To 01-01-2006 - 10 Deck Tension

Description

Countax C Series

C800 4WD - Tractor

From 01-12-2005 To 01-01-2006

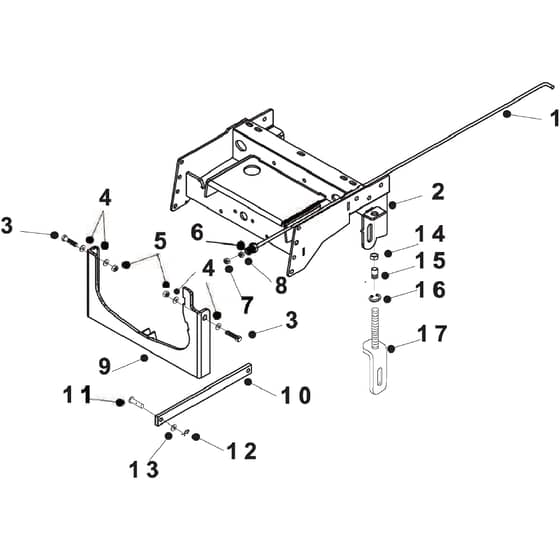

10 Deck Tension Assembly Parts Diagram

	Part No.	Details
1	WE318963201 Available to backorder	C Series PTO Rod	£72.60 £60.50
2	WE32952500 Available to backorder	C-Series 4Wd Chassis Front Wel	£206.88 £172.40
3	2183 In stock	Bolt 5.16UNF X 1.1.4 HT Z.P	£0.58 £0.48
4	2192 In stock	Washer - M8 X 21 X 1.6	£0.48 £0.40
5	2094 In stock	Nyloc Nut 5.16 UNF	£0.48 £0.40
6	WE189507400 Available to backorder	Deck Tension Cradle Adjuster N	£20.32 £16.93
8	WE049382500 Available to backorder	M16 Half Nut BZP	£1.72 £1.43
9	WE327365700 Available to backorder	2005 Deck Tension Cradle Welde	£224.88 £187.40
10	WE298123600 Available to backorder	36 Inch Ibs 4Wd Deck Tension B (10a)	£18.13 £15.11
10	WE298123700 Available to backorder	38 Inch Ibs 4Wd Deck Tension B (10b)	£38.04 £31.70
11	WE189503700 Available to backorder	Front Deck Pin X Series	£7.93 £6.61
12	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.21 £1.01
13	7282 In stock	Washer 10.8Id X 20.7Od X 2mm T	£0.38 £0.32
14	2173 In stock	M10 Locknut	£0.48 £0.40
15	WE189501800 Available to backorder	Deck Level Hex Adjuster Nut -	£16.74 £13.95
16	WE078000800 Available to backorder	E Clip M12 Plated	£0.91 £0.76
17	WE327029200 Available to backorder	Front Deck Cradle Adjuster Brk	£60.41 £50.34
