Countax C80 - From A0328984 06-04-2016 - 22 Engine Assy C80

Description

Countax C Series

C80 - Tractor

From A0328984 06-04-2016

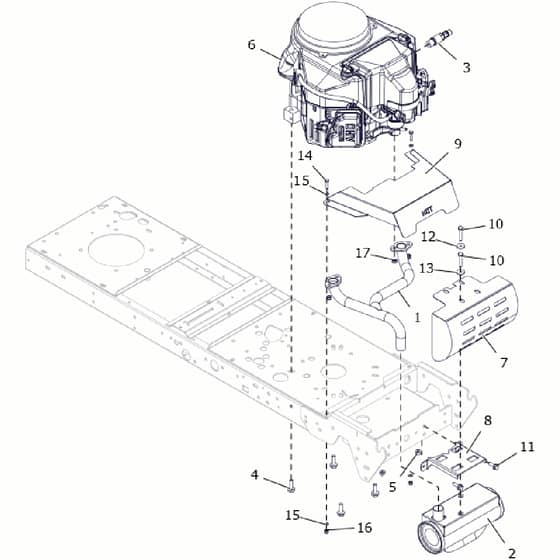

22 Engine Assy C80 Parts Diagram

	Part No.	Details
1	WE329599900 Available to backorder	Exhaust Welded Assy Frfs540	£175.80 £146.50
2	WE401009900 Available to backorder	Asm Exhaust Box 2016	£259.92 £216.60
3	WE529473400 Available to backorder	Asm Engine Oil Drain Valve Kawasaki	£13.87 £11.56
4	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
6	WE159339600 Available to backorder	18Hp Kawasaki Fr541Vas52M	£1,828.36 £1,523.63
7	WE307199700 Available to backorder	2004 Countax Heatshield	£125.52 £104.60
9	WE549005700 Available to backorder	Heat Shieldkawasaki	£50.81 £42.34
10	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
11	WE029428400 Available to backorder	M8X25Lg Hex Serrated Flange Screw	£1.39 £1.16
12	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
13	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
14	WE028002900 Available to backorder	Bolt M6X25 Plated	£0.60 £0.50
15	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
16	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
17	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
