Countax C80 - From 01-02-2016 To 06-04-2016 - 7 Seat Box

Countax C80 - From 01-02-2016 To 06-04-2016 - 7 Seat Box
Countax C80 - From 01-02-2016 To 06-04-2016 - 7 Seat Box

Description

Countax C Series

C80 - Tractor

From 01-02-2016 To 06-04-2016

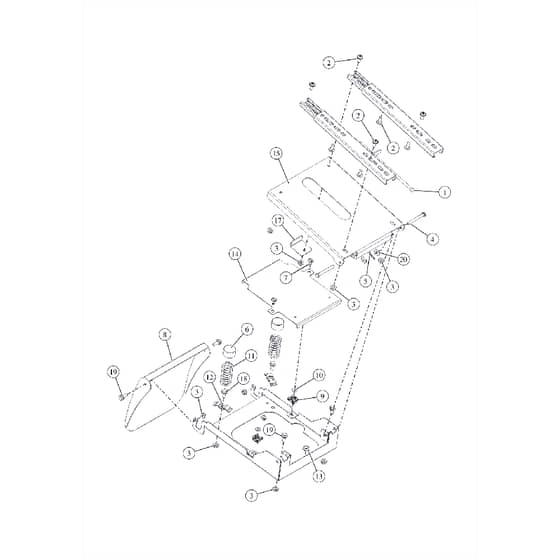

7 Seat Box Parts Diagram

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Seat Slide Rails 2015 WE148021200
Seat Slide Rails 2015
 Out of stock
£57.86 £48.22

  2 M8X20 Flange Dome Head Screw Zinc & C WE019485200
M8X20 Flange Dome Head Screw Zinc & C
 Out of stock
£0.67 £0.56

  3 M8 Flange Nut WE049383700
M8 Flange Nut
 Out of stock
£0.83 £0.69

  4 Clevis Pin Dia8mm X 70mmlong WE059169000
Clevis Pin Dia8mm X 70mmlong
 Out of stock
£6.72 £5.60

  5 2mm R Clip WE06849100
2mm R Clip
 Out of stock
£0.60 £0.50

  6 Cap Round Plastic 34mm X 19.05mm WE148021400
Cap Round Plastic 34mm X 19.05mm
 Out of stock
£2.65 £2.21

  7 Stud ¼ Turn Slot Hd Dzus D1004050030 WE148996800
Stud ¼ Turn Slot Hd Dzus D1004050030
 In stock
£4.80 £4.00

  8 PTO Flap Tractor He (Plastic) WE149496300
PTO Flap Tractor He (Plastic)
 Out of stock
£58.44 £48.70

  9 Dzus Receptacle WE149499900
Dzus Receptacle
 In stock
£4.34 £3.62

  10 Dzus 14 Turn Retain Washer WE149500000
Dzus 14 Turn Retain Washer
 In stock
£2.28 £1.90

  11 Seat Springcompression 71mm Long WE258001000
Seat Springcompression 71mm Long
 Out of stock
£6.40 £5.33

  13 Grommet Small WE52849700
Grommet Small
 Out of stock
£0.96 £0.80

  14 Guard MK4 PTO Cut Out Infill WE549128600
Guard MK4 PTO Cut Out Infill
 Out of stock
£17.72 £14.77

  15 Plate Seat Running WE549128700
Plate Seat Running
 Out of stock
£85.92 £71.60

  16 Brkt Seat Running Plate Mount WE549129900
Brkt Seat Running Plate Mount
 Out of stock
£55.44 £46.20

  17 Brkt Stop Seat Slide Rails 2015 WE549130200
Brkt Stop Seat Slide Rails 2015
 Out of stock
£5.68 £4.73

  18 M8 X 20 Flange Bolt WE019483600
M8 X 20 Flange Bolt
 Out of stock
£2.00 £1.67

  20 Washer M8 X 21 X 1.6 2192
Washer M8 X 21 X 1.6
 In stock
£0.48 £0.40


Description

Countax C Series

C80 - Tractor

From 01-02-2016 To 06-04-2016

7 Seat Box Parts Diagram
