Description

Countax C Series

C80 - Tractor

From 01-02-2016 To 06-04-2016

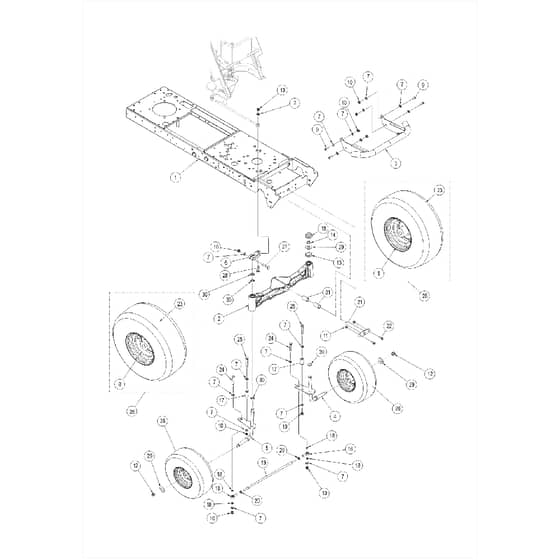

2 Chassis And Front Axle Parts Diagram

Ref. Img. Part No. Details
  1 Assy Chassis Front 4Wd WE329594400
Assy Chassis Front 4Wd
Out of stock
£688.10 £573.42

  2 Front Axle Casting Assy Countax (2013) WE408802800
Front Axle Casting Assy Countax (2013)
Out of stock
£220.20 £183.50

  3 Bull Bar Assy Welded WE327815300
Bull Bar Assy Welded
Out of stock
£304.08 £253.40

  4 Stub Axle Assembly LH WE329595300
Stub Axle Assembly LH
Out of stock
£98.72 £82.27

  5 Stub Assy New RH WE329596400
Stub Assy New RH
Out of stock
£137.76 £114.80

  6 Steering Arm WE542017700
Steering Arm
Out of stock
£43.72 £36.43

  7 Washer 10.8Id X 20.7Od X 2mm Thk 7282
Washer 10.8Id X 20.7Od X 2mm Thk
In stock
£0.34 £0.28

  8 Wheel Front Rim Wanda WE199503700
Wheel Front Rim Wanda
Out of stock
£53.16 £44.30

  9 M10 X 25 Sscrew BZP 8420
M10 X 25 Sscrew BZP
In stock
£1.45 £1.21

  10 M10 Nyloc Nut 2038
M10 Nyloc Nut
In stock
£0.72 £0.60

  11 M8 Flange Nut WE049383700
M8 Flange Nut
Out of stock
£0.83 £0.69

  12 M12 Nyloc Nut WE049381100
M12 Nyloc Nut
Out of stock
£0.28 £0.23

  14 19mm External Circlip C1A140019 2012
19mm External Circlip C1A140019
In stock
£0.23 £0.19

  15 Hub Cap (Moulded) WE14811800
Hub Cap (Moulded)
Out of stock
£6.79 £5.66

  16 10mm Rod End WE10872600
10mm Rod End
In stock
£22.08 £18.40

  17 Steering Support Boss WE31337500
Steering Support Boss
Out of stock
£32.78 £27.32

  18 Track Rod End Spacer 12.7Od X 10Id X 7 WE183016900
Track Rod End Spacer 12.7Od X 10Id X 7
Out of stock
£10.21 £8.51

  19 M10 Track Rod WE31318300
M10 Track Rod
In stock
£61.92 £51.60

  20 M10 Locknut 2173
M10 Locknut
Out of stock
£0.38 £0.32

  21 Alpha Axle Pin Asm WE329599100
Alpha Axle Pin Asm
Out of stock
£44.84 £37.37

  22 M8X25Lg Hex Serrated Flange Screw WE029428400
M8X25Lg Hex Serrated Flange Screw
Out of stock
£1.36 £1.13

  23 Tractor Front Tyre 15 X 6 WE19802800
Tractor Front Tyre 15 X 6
Out of stock
£110.28 £91.90

  24 M10 X 55 Hex Head Bolt WE018002400
M10 X 55 Hex Head Bolt
Out of stock
£0.71 £0.59

  25 M10 X 65mm Hex Head Bolt BZP WE018005300
M10 X 65mm Hex Head Bolt BZP
Out of stock
£0.67 £0.56

  26 Wheel Assy 15 Wanda 2Wd Cseries 2013 WE405111000
Wheel Assy 15 Wanda 2Wd Cseries 2013
Out of stock
£149.98 £124.98

  27 M10 X 60mm Coach Bolt Zincclear WE018005000
M10 X 60mm Coach Bolt Zincclear
Out of stock
£0.67 £0.56

  28 M10 X 45 Cup Square Bolt Steering Arm WE018006800
M10 X 45 Cup Square Bolt Steering Arm
Out of stock
£9.80 £8.17

  29 Hub Cap Washer Front Wheel WE30128100
Hub Cap Washer Front Wheel
In stock
Was £4.75 £3.96 Special Price £3.16 £2.63

  30 32 X 20 X 1mm Galv Washer WE081258200
32 X 20 X 1mm Galv Washer
Out of stock
£6.50 £5.42

  31 Axle Bearing Plastic Igus Psm222545 WE109011600
Axle Bearing Plastic Igus Psm222545
Out of stock
£17.41 £14.51


Description

Countax C Series

C80 - Tractor

From 01-02-2016 To 06-04-2016

2 Chassis And Front Axle Parts Diagram
