Countax C80 - From 01-02-2016 To 06-04-2016 - 11 Deck Lift

Name: Countax C80 - From 01-02-2016 To 06-04-2016 - 11 Deck Lift
SKU: c80_01022016_06042016_11-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C80 - From 01-02-2016 To 06-04-2016 - 11 Deck Lift

Description

Countax C Series

C80 - Tractor

From 01-02-2016 To 06-04-2016

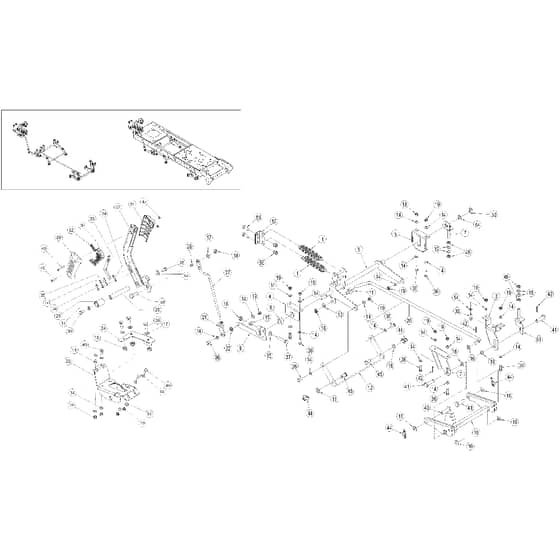

11 Deck Lift Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE25885300 Available to backorder	Deck Assist Spring	£19.90 £16.58
4	WE302080300 Available to backorder	Bracket Right Hand Rear Hanging	£13.85 £11.54
5	WE302080500 Available to backorder	Brkt Left Hand Rear Hanging	£28.82 £24.02
6	WE329600200 Available to backorder	Assy 2013 Rear Deck Hanging Bracket	£261.59 £217.99
7	WE328961400 Available to backorder	Diesel & Kawasaki Rear Deck Adjust Brkt	£34.04 £28.37
8	WE31323500 Available to backorder	H.E Lift Bar Spacer	£19.76 £16.47
9	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£58.96 £49.13
10	WE328969400 In stock	Asm Front Cradle	£156.96 £130.80
11	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£25.36 £21.13
12	WE549129100 Available to backorder	Brkt Rear Deck Lift Link	£44.78 £37.32
13	2539 In stock	M10 X 24 X 2 Tl Washer	£0.47 £0.39
14	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
15	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
16	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
18	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
19	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
21	WE327806100 Available to backorder	Manual Deck Lift Adjuster Rod Plate Asse	£55.96 £46.63
22	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.14 £9.28
23	WE328969800 Available to backorder	Asm Manual Deck Lift Carry Plate Welded	£125.28 £104.40
24	WE541147400 In stock	Brkt Deck Lift Attachment Top	Was £10.32 £8.60 Special Price £4.79 £3.99
25	WE186006800 Available to backorder	Deck Handle Cross Shaft	£21.10 £17.58
26	WE183864100 Available to backorder	Spacer Deck Lift Handle Cross Shaft	£10.58 £8.82
27	WE329598200 Available to backorder	Yoke Rod Welded Asm	£85.66 £71.38
28	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
29	WE149550400 Available to backorder	Deck Lift RH Handle Cover Black	£17.26 £14.38
30	WE149550601 Available to backorder	Manual Deck Lift Handle Trigger	£28.78 £23.98
31	WE149550500 Available to backorder	Deck Lift LH Handle Cover Black	£17.26 £14.38
32	WE259405900 Available to backorder	Manual Deck Lift Handle Spring 2008	£0.96 £0.80
33	WE327878100 Available to backorder	Deck Lift Handle Link Welded Assembly	£58.74 £48.95
34	WE301965300 Available to backorder	Manual Deck Lift Slide Plate	£11.84 £9.87
35	WE183528801 Available to backorder	Manual Deck Lift Link Slide Pin	£6.24 £5.20
37	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.71 £0.59
38	6872 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
39	8420 In stock	M10 X 25 Sscrew BZP	£1.45 £1.21
40	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
41	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£19.64 £16.37
42	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
43	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
44	2195 In stock	Rue Clip	£0.76 £0.63
45	WE31337200 In stock	Deck Lift Pin (Rear)	£13.58 £11.32
46	WE028004000 Available to backorder	M5 X 30mm Csk Socket Head Screw Black	£1.08 £0.90
47	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.90 £0.75
48	2173 Available to backorder	M10 Locknut	£0.38 £0.32
49	2107 Available to backorder	M5 X 35 Csk Socket Head Screw Black	£0.64 £0.53
50	WE07986100 Available to backorder	4mm Eclip D15004mm	£0.64 £0.53
51	WE329600900 Available to backorder	Deck Adjustment Brkt Asm	£24.26 £20.22
52	WE549004800 Available to backorder	Deck Lift Spring Anchor	£2.08 £1.73
53	WE078000800 Available to backorder	E Clip M12 Plated	£0.89 £0.74
54	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
55	WE019483600 In stock	M8 X 20 Flange Bolt	£2.00 £1.67
57	WE329602800 Available to backorder	Asm Deck Lift Handle	£147.76 £123.13
58	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
