Countax C80 - From 01-02-2014 To 01-06-2014 - 10 Handbrake Pedal

Name: Countax C80 - From 01-02-2014 To 01-06-2014 - 10 Handbrake Pedal
SKU: c80_01022014_01062014_10-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C80 - From 01-02-2014 To 01-06-2014 - 10 Handbrake Pedal

Description

Countax C Series

C80 - Tractor

From 01-02-2014 To 01-06-2014

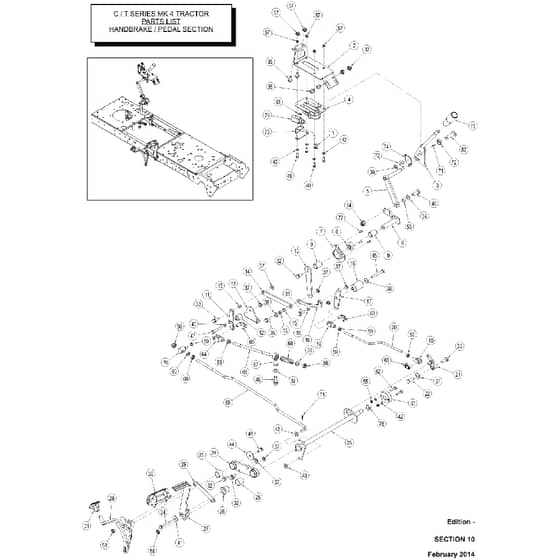

10 Handbrake Pedal Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.41 £0.34
2	WE549112100 Available to backorder	Handbrake Mount Bracket	£15.72 £13.10
3	WE329600800 Available to backorder	Hand Brake Handle Asm	£54.36 £45.30
4	WE148014000 Available to backorder	C Series 2002 Hanbrake Block	£11.62 £9.68
5	WE329601600 Available to backorder	Hand Brake Connecting Rod Assembly	£19.13 £15.94
6	WE329597500 Available to backorder	Asm Handbrake Lever Outer	£6.24 £5.20
7	WE301048100 Available to backorder	Tractor Pedal Cassette Bearing Housing	£51.02 £42.52
8	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
9	WE183860300 Available to backorder	Spacer Idler Pulley	£2.36 £1.97
10	WE542017300 Available to backorder	Lever Inner Handbrake Pivot	£5.02 £4.18
11	WE549116300 Available to backorder	Hand Brake Transaxle Pivot	£4.26 £3.55
12	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.78 £4.82
13	WE549116200 Available to backorder	Hand Brake Transaxle Bracket	£2.14 £1.78
14	WE549115200 Available to backorder	Hand Brake Link Plate	£6.41 £5.34
15	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
16	WE549116000 Available to backorder	Hand Brake Crank Link	£4.26 £3.55
17	WE549115000 Available to backorder	Hand Brake Pivot Plate	£4.26 £3.55
18	WE186003500 Available to backorder	Hand Brake Crank Boss	£5.94 £4.95
19	WE108001100 Available to backorder	M8 Clevis Pin	£12.50 £10.42
20	WE174517900 Available to backorder	Hand Brake Link Rod	£14.54 £12.12
21	WE329595000 Available to backorder	Assy Locking Lever	£17.48 £14.57
22	WE184000500 Available to backorder	Body Pivot Locking	£5.74 £4.78
23	WE329594800 Available to backorder	Assy Crossshaft Pedal	£107.36 £89.47
24	WE329602300 Available to backorder	Pedal Hub Asm	£34.98 £29.15
25	WE109011700 Available to backorder	Chassis Pedal Boss Brg	£9.14 £7.62
26	WE183861300 Available to backorder	Tube Support Pedal Drive	£37.04 £30.87
27	WE329594900 Available to backorder	Assy Forward Pedal	£40.88 £34.07
28	WE329650200 Available to backorder	Reverse Pedal Welded Asm	£63.11 £52.59
29	WE405080300 Available to backorder	Pedal Cassette Link Assembly	£15.26 £12.72
30	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.14 £12.62
31	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£13.34 £11.12
32	WE019483600 In stock	M8 X 20 Flange Bolt	£2.00 £1.67
33	2175 In stock	M8X25 Flange Bolt	£0.41 £0.34
34	WE019484700 Available to backorder	M6X55 Flange Non Serrated Hex Bolt	£0.71 £0.59
35	WE019483700 Available to backorder	M8 X 30 Flange Bolt	£1.54 £1.28
36	WE019483500 Available to backorder	M8 X 16 Flange Bolt	£1.08 £0.90
38	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
39	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
40	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
41	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
42	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
44	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Washer	£0.48 £0.40
45	WE028662700 Available to backorder	Bolt M8X65mm	£0.62 £0.52
46	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
47	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.67 £0.56
48	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
49	2184 Available to backorder	M6X16mm Set Screw	£1.74 £1.45
50	WE189544100 Available to backorder	Pedal Shaft End Hub Tractor 2013	£8.21 £6.84
51	8418 In stock	Nylon Washer	£1.26 £1.05
52	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
53	WE189502700 Available to backorder	Spacer 12.7Od 10.2 Id 9mm Long	£27.16 £22.63
54	WE049381600 Available to backorder	M10 Flanged Nyloc Nut	£0.40 £0.33
55	WE048111000 Available to backorder	M6 Grd 8 Nylon Self Lock Nuts Din 985	£0.96 £0.80
56	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
57	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
58	WE089418300 Available to backorder	38 Starlock Washer	£1.44 £1.20
60	2173 Available to backorder	M10 Locknut	£0.38 £0.32
61	WE048001800 Available to backorder	M5 Half Nut Black Finish	£0.90 £0.75
62	WE019485000 Available to backorder	M6 X 25 Socket Cap Screw Steel Zinc Tri	£0.62 £0.52
63	WE108001200 Available to backorder	8mm Spring Pin	£10.97 £9.14
64	WE108000600 Available to backorder	10mm X 1.5 Clevis Short	£16.50 £13.75
65	WE108000500 In stock	10mm Spring Pin Short	£5.62 £4.68
66	WE313514600 Available to backorder	Rod Trans Brake To Crossshaft	£16.42 £13.68
67	WE10872600 In stock	10mm Rod End	£20.30 £16.92
68	WE259405100 Available to backorder	2050 Comp Brake Rod Spring	£3.42 £2.85
69	WE313514400 Available to backorder	Rod Forwardreverse	£44.24 £36.87
70	WE183020200 Available to backorder	2050 Diff Lock Pedal Trunnion	£12.43 £10.36
71	2202 Available to backorder	18 X 12 Split Pin	£0.47 £0.39
72	WE149498000 Available to backorder	C Series Handbrake Mechanism Nylon Bush	£6.76 £5.63
73	WE149557300 Available to backorder	Handbrake Handle	£15.04 £12.53
74	WE258000600 Available to backorder	Spring Handbrake Block Torsion 1.75 Dia	£4.99 £4.16
75	WE549007000 Available to backorder	Hand Brake Plunger Switch Bracket	£1.12 £0.93
76	WE449880800 In stock	Plunger Switch Nonc	£19.56 £16.30
77	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.25 £1.04
78	WE109011900 Available to backorder	Cross Shaft End Brg	£5.66 £4.72
