Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 1 Front Axle Assy

Name: Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 1 Front Axle Assy
SKU: c600hkawasakiengine_01012011_31122013_1f-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C600H Kawasaki Engine - From 01-01-2011 To 31-12-2013 - 1 Front Axle Assy

Description

Countax C Series

C600H KAWASAKI ENGINE - Tractor

From 01-01-2011 To 31-12-2013

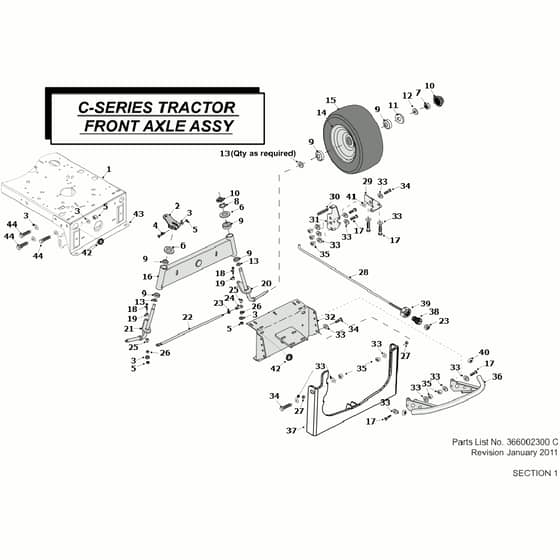

1 Front Axle Assy Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
2	WE32702500 Available to backorder	Steering Arm Assy	£76.72 £63.93
3	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
4	WE018005000 Available to backorder	M10 X 60mm Coach Bolt Zincclear	£0.67 £0.56
5	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
6	WE183006200 Available to backorder	Stub Axle Spacer	£7.94 £6.62
7	WE049381100 Available to backorder	M12 Nyloc Nut	£0.48 £0.40
8	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
9	WE10802200 In stock	Front Wheel Bearing	£34.52 £28.77
10	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
11	WE30128100 In stock	Hub Cap Washer Front Wheel	Was £4.75 £3.96 Special Price £3.16 £2.63
12	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
13	WE081258200 Available to backorder	32 X 20 X 1mm Galv Washer	£6.50 £5.42
15	WE14889200 Available to backorder	Wheel Valve	£10.93 £9.11
16	WE327014700 Available to backorder	Axle Beam Cseries & 2050	£217.32 £181.10
17	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
18	WE019478300 Available to backorder	Bolt 100mm X M10	£1.12 £0.93
19	WE31302400 Available to backorder	Rose Joint Boss	£9.88 £8.23
20	WE327015100 Available to backorder	LH Stub Axle	£164.62 £137.18
21	WE328962000 Available to backorder	RH Stub Axle C Srs	£62.03 £51.69
22	WE31318300 In stock	M10 Track Rod	£59.74 £49.78
23	2173 Available to backorder	M10 Locknut	£0.38 £0.32
24	WE10872600 In stock	10mm Rod End	£20.30 £16.92
25	WE31337100 Available to backorder	Rose Joint Shoulder Boss (Long)	£45.58 £37.98
26	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
27	WE31302800 Available to backorder	Spacer 7mm X 516Id	£9.80 £8.17
28	WE313513701 Available to backorder	C Series Deck Tension Rod Bar Component	£71.54 £59.62
29	WE301136400 Available to backorder	MK3 C Series Bonnet Hinge Brkt 2002	£36.98 £30.82
30	WE25805200 Available to backorder	Spring	£12.94 £10.78
31	WE301136600 Available to backorder	RH Bonnet Stop MK3 Plastic Bonnet	£11.24 £9.37
32	WE327014600 Available to backorder	Universal Front Axle Plate Assembly	£191.22 £159.35
33	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
34	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
35	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
36	WE327807600 Available to backorder	Tractor Bullbar Assembly 08 To Current	£349.20 £291.00
37	WE327365700 Available to backorder	2005 Deck Tension Cradle Welded Assy	£211.09 £175.91
38	WE189507400 Available to backorder	Deck Tension Cradle Adjuster Nut	£19.64 £16.37
39	WE049382500 Available to backorder	M16 Half Nut BZP	£1.66 £1.38
40	WE148014400 Available to backorder	Stainless Steel Bullbar Plastic End Cap	£1.14 £0.95
41	WE183529500 Available to backorder	Cseries Deck Lift Pivot Spacer	£11.14 £9.28
42	WE52848000 Available to backorder	Grommet Large	£1.76 £1.47
43	WE327998000 Available to backorder	C Series 2Wd Chassis Front Welded Assemb	£155.30 £129.42
44	8420 In stock	M10 X 25 Sscrew BZP	£1.45 £1.21
