Countax C600 - From 01-01-2003 To 01-09-2003 - 23 He List 1999

Description

Countax C Series

C600 - Tractor

From 01-01-2003 To 01-09-2003

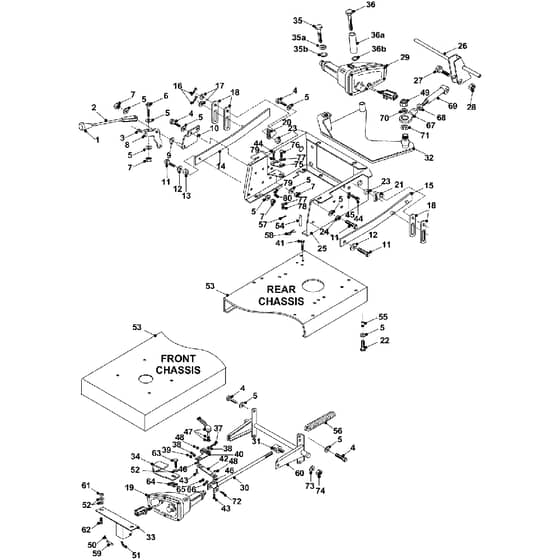

23 He List Assembly 1999 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
2	WE32708701 Available to backorder	PTO Lever	£50.02 £41.68
3	WE25831100 Available to backorder	Spring	£7.52 £6.27
4	2141 In stock	Set Screw	£0.64 £0.53
5	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
6	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.53 £0.44
7	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
9	WE31305100 Available to backorder	PTO Plate Spacer	£57.76 £48.13
10	WE32722500 Available to backorder	PTO Engage Bridge	£20.90 £17.42
11	2183 Available to backorder	Bolt 516UNF X 1.14 HT ZP	£0.48 £0.40
12	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Washer	£0.48 £0.40
13	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
15	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£113.03 £94.19
16	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
17	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
18	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£30.56 £25.47
20	WE32721300 Available to backorder	Lift Triangle RH He	£25.16 £20.97
21	WE32721200 Available to backorder	H.E. Sweeper Lift LH Triangle	£29.72 £24.77
23	WE31323500 Available to backorder	H.E Lift Bar Spacer	£19.76 £16.47
24	WE04822200 Available to backorder	Locknut 516UNF Hex ZP	£0.85 £0.71
25	WE327308500 Available to backorder	Foot Control C Series Seatbox Manual	£159.41 £132.84
27	2065 In stock	Pull Rod Spring Sleeve 302601	£0.70 £0.58
28	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
30	WE321001000 Available to backorder	98 He Deck Lift Connect Rod	£24.76 £20.63
35	WE088111500 Available to backorder	Washer 38 X 34 (35b)	£0.48 £0.40
35	2145 Available to backorder	Bolt 38 X 2.12	£1.00 £0.83
36	WE01821700 Available to backorder	Bolt 3.8 X 3.1.2	£1.97 £1.64
36	WE313004500 Available to backorder	Sleeve 38 X 2 38 (36a)	£3.82 £3.18
36	2110 Available to backorder	Washer 38 T3 ZP (36b)	£0.14 £0.12
37	WE18000100 Available to backorder	Bolt M5 X 20mm (Vac)	£0.58 £0.48
39	2047 In stock	Nut	£0.90 £0.75
40	WE301040600 Available to backorder	98 He Potentiometer Bracket	£5.74 £4.78
41	8905 In stock	Bolt M5 X 20mm	£0.40 £0.33
43	7274 In stock	M5 X 16mm Pozi Pan	£0.40 £0.33
44	2106 In stock	Set Screw	£0.30 £0.25
45	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
49	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
51	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
52	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
53	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
55	WE31323400 Available to backorder	Deck Spring Spacer	£3.05 £2.54
56	WE25885300 Available to backorder	Deck Assist Spring	£19.90 £16.58
58	WE07823700 Available to backorder	3mm L Type R Clip (Large)	£1.18 £0.98
60	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktcser Non He	£113.86 £94.88
62	8999 In stock	M8 X 30 Roofing Bolt	£0.48 £0.40
64	2196 In stock	M8 Captive Nut	£0.76 £0.63
67	WE10872600 In stock	10mm Rod End	£20.30 £16.92
70	WE31351200 Available to backorder	Spacer 3mm X 38 Id	£1.16 £0.97
71	WE089420400 Available to backorder	M8 Spring Washer Single Coil Flat Sect.	£0.65 £0.54
72	WE01902300 Available to backorder	Bolt M8X25mm	£0.38 £0.32
75	WE301063200 Available to backorder	He Rear Seat Box Cam Bracket	£4.98 £4.15
76	2189 Available to backorder	Bolt 38 X 34 HT	£0.94 £0.78
78	2185 Available to backorder	Nyloc Nut14 UNF	£0.60 £0.50
