Countax C600 - From 01-01-1996 To 01-01-2003 - 8 PTO And Transmission Drive Mk1 Pre 90326

Name: Countax C600 - From 01-01-1996 To 01-01-2003 - 8 PTO And Transmission Drive Mk1 Pre 90326
SKU: c600_01011996_01012003_8p-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C600 - From 01-01-1996 To 01-01-2003 - 8 PTO And Transmission Drive Mk1 Pre 90326

Description

Countax C Series

C600 - Tractor

From 01-01-1996 To 01-01-2003

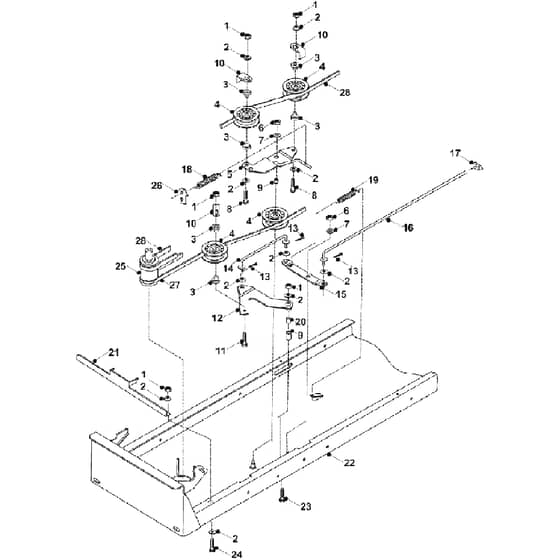

8 Pto And Transmission Drive Assembly Mk1 Pre 90326 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
2	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
3	WE18831600 Available to backorder	Spacer Jockey Wheel	£43.90 £36.58
4	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
5	WE32706402 Available to backorder	Jockey Pulley Plate Cw 52824700 Bush	£67.60 £56.33
6	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
7	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
8	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£0.90 £0.75
9	WE52824700 Available to backorder	Oilite Bush	£13.10 £10.92
10	WE307187100 Available to backorder	Belt Keeper	£13.34 £11.12
11	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.53 £0.44
13	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
14	WE32701500 Available to backorder	Link Barpto Drive Assy	£19.52 £16.27
15	WE27103800 Available to backorder	Back Plate Assy 4.3 Bushel Sc	£4.68 £3.90
16	WE31805700 Available to backorder	PTO Engage Rod	£22.24 £18.53
17	WE18806100 Available to backorder	Trunion (PTO Engage)	£7.46 £6.22
18	WE25812201 Available to backorder	Brake Return Spring	£9.58 £7.98
19	WE25849600 Available to backorder	Belt Tension Spring	£19.80 £16.50
20	WE31302500 Available to backorder	Spacer 20mm X 516Id	£3.38 £2.82
21	WE32707400 Available to backorder	Clutch Restraint Bracket	£64.97 £54.14
22	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
25	WE31330500 Available to backorder	Engine Pulleymag Stop Clutch	£242.87 £202.39
26	WE30118300 Available to backorder	Brake Spring Plate	£7.64 £6.37
27	WE2281110A In stock	Transmission Belt	£56.12 £46.77
28	WE22919900 Available to backorder	Dayco A76 Super 2 Hydrostatic Peerless	£61.72 £51.43
