Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle

Name: Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle
SKU: c6004wdkawasakiengine_01012011_01122013_7h-group
Price: 0.19 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 7 Hydrostatic Transaxle

Description

Countax C Series

C600 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

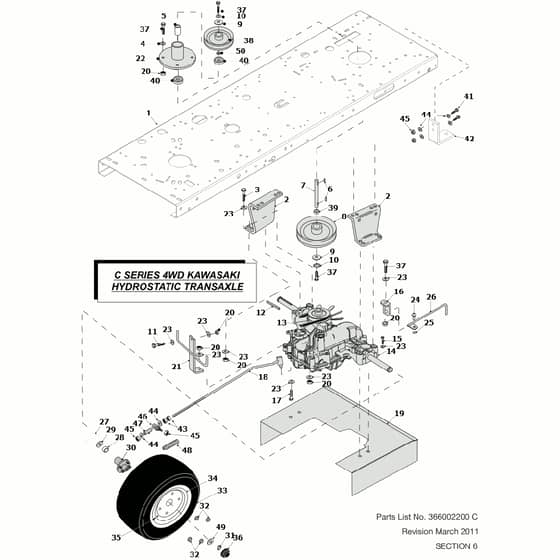

7 Hydrostatic Transaxle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE32954300	C Series 4Wd Chassis Welded Assembly	Out of stock	£601.34 £501.12
2	WE307025900	C Series Transaxle Brkt 2000 6mm Thk	Out of stock	£48.72 £40.60
3	2182	M8X70mm Hex Bolt Zinc & Clear Passivate	Out of stock	£0.70 £0.58
4	WE08819500	Washer 516 T3 Lp Zinc Plated	Out of stock	£1.36 £1.13
5	WE31334800	Spacer PTO Centre	Out of stock	£25.92 £21.60
6	WE09823900	Key No 61	In stock	£0.84 £0.70
7	WE183013700	D1850 Deisel PTO Shaft	Out of stock	£60.53 £50.44
8	WE20870702	7 PTO Pulley	Out of stock	£61.92 £51.60
9	WE08819800	Washer 516Id X 1Od Hd	In stock	£21.37 £17.81
10	6408	M8 Internally Serrated Shakeproof Washe	In stock	£1.34 £1.12
11	7746	Bolt M8 X 25mm	In stock	£0.38 £0.32
12	2199	Keyrear Wheel	Out of stock	£4.58 £3.82
13	WE229504000	PTO Belt	Out of stock	£61.32 £51.10
14	TT787Q0324030	Hydrotx K574C 2Port 4Trac	Out of stock	£2,479.54 £2,066.28
15	WE028662700	Bolt M8X65mm	Out of stock	£0.62 £0.52
16	WE307022200	Park Brake Switch Brkt Long	Out of stock	£8.21 £6.84
17	8416	Bolt M8 X 50mm	In stock	£2.56 £2.13
19	WE30307101	2001 Cseries Transaxle Deflector	Out of stock	£66.68 £55.57
20	2111	M8 Nyloc Nut	In stock	£0.28 £0.23
21	WE327020400	Transaxle Steady Assembly	Out of stock	£12.12 £10.10
22	WE40835800	PTO Bearing Housing MK3 Comp.	Out of stock	£263.40 £219.50
23	2192	Washer M8 X 21 X 1.6	In stock	£0.48 £0.40
24	WE12855800	14 X 12 Steel Flat Hd Solid Rivet Zin	Out of stock	£1.44 £1.20
25	WE07868700	14 Starloc Washer	Out of stock	£0.54 £0.45
26	WE321123301	Cseries Dump Valve Lever Assembly	Out of stock	£29.51 £24.59
27	WE307191801	K46 Transaxle Thrust Washer	Out of stock	£6.00 £5.00
28	WE189503401	Cseries 4Wd Rear Wheel Spacer	Out of stock	£23.58 £19.65
29	WE081258200	32 X 20 X 1mm Galv Washer	Out of stock	£6.50 £5.42
30	WE198002000	Wheel Hub For 20 Wheel Cw Studs & Nuts	Out of stock	£56.12 £46.77
31	2012	19mm External Circlip C1A140019	In stock	£0.23 £0.19
32	WE048000901	Ct Series Rear Wheel Nut	Out of stock	£2.76 £2.30
33	WE198001200	20 Rear Tyre Ctractor 20X8.00	Out of stock	£139.50 £116.25
34	WE198001100	20 Cseries& C4Wd Rear Rim	Out of stock	£120.84 £100.70
35	WE14889200	Wheel Valve	Out of stock	£10.93 £9.11
36	WE14811800	Hub Cap (Moulded)	Out of stock	£6.79 £5.66
37	7735	Screw Hex Hd Din933 M8 X 20 Grade 10.9	In stock	£0.58 £0.48
38	WE208000400	5 PTO Pulley	In stock	Was £43.04 £35.87 Special Price £29.95 £24.96
39	WE31306200	PTO End Spacer	Out of stock	£38.45 £32.04
40	WE10811600	Bearing (PTO Housing)	In stock	£16.94 £14.12
41	8984	Screw Hex Hd Din933 M10 X 30 Grade 10.	In stock	£0.94 £0.78
42	WE29200101	Tow Bracket	Out of stock	£87.84 £73.20
43	2173	M10 Locknut	In stock	£0.38 £0.32
44	7282	Washer 10.8Id X 20.7Od X 2mm Thk	In stock	£0.34 £0.28
46	WE183019000	2050 Jockey Plate Trunnion	Out of stock	£15.83 £13.19
47	WE174008900	MK3 Park Brake Engage Rod Sleeve	Out of stock	£23.22 £19.35
48	WE259405100	2050 Comp Brake Rod Spring	Out of stock	£3.42 £2.85
49	WE30127800	Hub Cap Washer	Out of stock	£1.79 £1.49
50	WE088002600	Zinc Plated M16 Washer Form B	Out of stock	£0.40 £0.33
