Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 6 PTO Transmission

Description

Countax C Series

C600 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

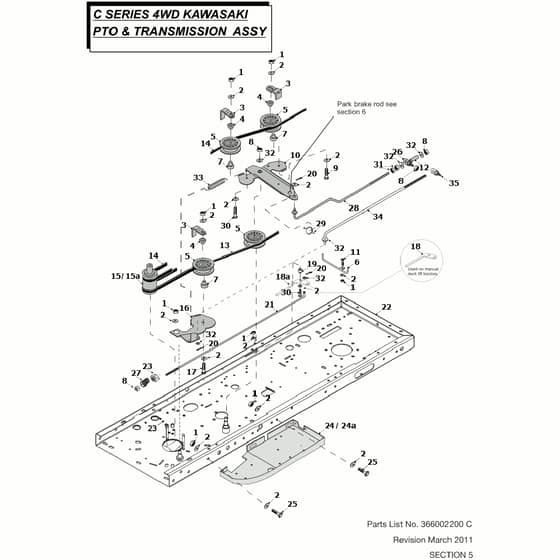

6 Pto Transmission Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
2	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
3	WE307187100 Available to backorder	Belt Keeper	£13.34 £11.12
4	WE18831600 Available to backorder	Spacer Jockey Wheel	£43.90 £36.58
5	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
6	WE328955500 Available to backorder	C & Ww PTO Rear Belt Guide	£17.18 £14.32
7	WE31351100 Available to backorder	Sweeper Jockey Cap	£42.56 £35.47
8	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
9	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.15 £0.96
10	WE328955100 Available to backorder	2003 C Series Jockey Pulley Plate Assy	£77.33 £64.44
11	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
12	WE183019100 Available to backorder	2050 Brake Rod Tube	£14.02 £11.68
13	WE2281110A In stock	Transmission Belt	£56.12 £46.77
14	WE229504000 Available to backorder	PTO Belt	£55.76 £46.47
15	WE327847800 Available to backorder	Cseries & Ww 4Wd Enigne Pulley Welded A (15a)	£118.97 £99.14
15	WE32953000 Available to backorder	Cseries 4Wd Engine Pulley Welded Assem	£152.40 £127.00
16	WE327360700 Available to backorder	C Serieswestwood PTO Jockey Plate Assy	£23.56 £19.63
18	WE541122600 Available to backorder	Electric Deck Tension Lever (18a)	£8.66 £7.22
19	WE18833700 Available to backorder	Pivot (Deck Overlock)	£5.78 £4.82
20	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
22	WE32954300 Available to backorder	C Series 4Wd Chassis Welded Assembly	£481.20 £401.00
23	WE049382500 Available to backorder	M16 Half Nut BZP	£1.66 £1.38
24	WE327177300 Available to backorder	Cseries LH Angled Running Board Assy 01 (24a)	£78.54 £65.45
24	WE327177701 Available to backorder	Hydro RH Angled Running Board Oct 01	£163.13 £135.94
25	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
26	WE189514100 Available to backorder	C Series 4Wd Park Brake Rod Trunnion	£34.82 £29.02
27	WE189507400 Available to backorder	Deck Tension Cradle Adjuster Nut	£19.64 £16.37
28	WE318952401 Available to backorder	C Series Hbrake Engage Rod 10mm Longer	£69.48 £57.90
29	WE259405600 Available to backorder	Trunnion Damping Spring	£5.35 £4.46
30	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.67 £0.56
31	2173 Available to backorder	M10 Locknut	£0.38 £0.32
32	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
33	WE25812201 Available to backorder	Brake Return Spring	£9.58 £7.98
34	WE318963201 Available to backorder	C Series PTO Rod	£72.62 £60.52
35	WE18318000 Available to backorder	Rider Deck Brake Trunnion	£15.14 £12.62
