Countax C600 4Wd Kawasaki Engine - From 01-01-2011 To 01-12-2013 - 4 Read Body

Description

Countax C Series

C600 4WD KAWASAKI ENGINE - Tractor

From 01-01-2011 To 01-12-2013

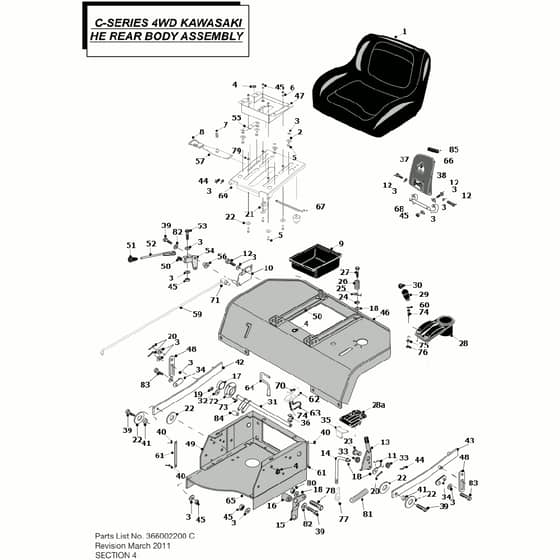

4 Read Body Parts Diagram

	Part No.	Details
45	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
1	WE405463500 Available to backorder	Kita25 Seat Conversion Milsco To Seat	£376.07 £313.39
2	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
3	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
4	WE52849700 Available to backorder	Grommet Small	£1.00 £0.83
5	6872 In stock	M8 X 16 Mscrew BZP	£0.48 £0.40
6	WE089422300 Available to backorder	M8 X 13 X 1 Mild Steel Washer Scolour	£1.00 £0.83
7	WE25831100 Available to backorder	Spring	£7.78 £6.48
8	WE149551800 Available to backorder	Tractor Seat Handle 2008	£1.93 £1.61
9	WE14848500 Available to backorder	Tool Tray	£31.49 £26.24
10	WE32722500 Available to backorder	PTO Engage Bridge	£21.62 £18.02
11	WE258000600 Available to backorder	Spring Handbrake Block Torsion 1.75 Dia	£5.16 £4.30
12	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
13	WE321124300 Available to backorder	C Series Handbrake Handle Welded Assy	£80.04 £66.70
14	WE318961703 Available to backorder	Universal Handbrake Rod	£62.64 £52.20
15	WE301137800 Available to backorder	C Series Handbrake Chassis Joggle Plate	£22.02 £18.35
16	WE183027400 Available to backorder	C Series Hbrake Chassis Joggle Plt Boss	£12.84 £10.70
17	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
18	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
19	2047 In stock	Nut	£0.34 £0.28
20	2202 Available to backorder	18 X 12 Split Pin	£0.48 £0.40
21	WE149551900 Available to backorder	Rubber Seat Spring Retainer	£9.58 £7.98
23	WE31336800 In stock	Deck Lift Pin (Front)	£38.65 £32.21
24	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.41 £4.51
26	WE25858100 Available to backorder	Spring Sliding Seat	£12.52 £10.43
27	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zinc Plated	£0.85 £0.71
28	WE148013900 Available to backorder	C Series 2002 Cup Holder	£23.18 £19.32
28	WE148014000 Available to backorder	C Series 2002 Hanbrake Block (28a)	£12.01 £10.01
29	WE149557300 Available to backorder	Handbrake Handle	£15.56 £12.97
30	WE359505100 Available to backorder	Hbrake Handle Badge	£7.12 £5.93
31	WE327009400 In stock	2050 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
32	2053 In stock	M5 Washer Form C Od 12.5mm	£0.48 £0.40
33	WE149498000 Available to backorder	C Series Handbrake Mechanism Nylon Bush	£7.00 £5.83
34	WE327016100 Available to backorder	Sweeper Lift Con Plate Assy(Zincclear)	£28.92 £24.10
35	WE301151300 Available to backorder	Brake Switch Bracket	£23.16 £19.30
37	WE35809500 Available to backorder	PTO Danger Label	£32.11 £26.76
38	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.89 £4.91
39	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.68 £0.57
40	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£1.00 £0.83
41	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
42	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
43	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£109.32 £91.10
44	WE06849100 In stock	2mm R Clip	£0.48 £0.40
46	WE327364200 Available to backorder	C Series Hfwd Rear Body Welded Assy	£631.22 £526.02
47	WE301985401 Available to backorder	Seat Base Plate 2008	£66.12 £55.10
48	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£31.61 £26.34
49	WE327308500 Available to backorder	Foot Control C Series Seatbox Manual	£159.36 £132.80
50	WE301985800 Available to backorder	Seat Attachment Channel 2008	£55.06 £45.88
51	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
52	WE32708701 Available to backorder	PTO Lever	£51.74 £43.12
53	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
55	WE301985700 Available to backorder	Seat Mechanism Spring Retainer Plate	£34.79 £28.99
57	WE325000601 Available to backorder	Seat Release Mehcanism Lever Assembly	£17.76 £14.80
59	WE318963201 Available to backorder	C Series PTO Rod	£72.60 £60.50
60	WE148014300 Available to backorder	M6 Socket Screw Cap	£0.64 £0.53
61	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.32 £6.93
64	WE327012700 Available to backorder	5 Pulley Modified Pig Tail Assembly 98	£32.33 £26.94
65	WE32954300 Available to backorder	C Series 4Wd Chassis Welded Assembly	£432.96 £360.80
66	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£59.81 £49.84
67	WE31301800 Available to backorder	Seat Pivot Rod	£35.77 £29.81
68	WE542032800 Available to backorder	Brkt PTO Flap A Series	£18.16 £15.13
69	WE301985503 Available to backorder	Seat Running Plate 2008	£54.52 £45.43
70	TT168T2024250 In stock	Vent Valve	£16.66 £13.88
71	WE18318000 Available to backorder	Rider Deck Brake Trunnion	£15.67 £13.06
72	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
73	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.48 £0.40
74	WE149545600 Available to backorder	4Wd Curved Rubber Return Pipe	£75.36 £62.80
75	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
76	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
77	WE10872600 In stock	10mm Rod End	£20.66 £17.22
78	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
79	WE183856700 Available to backorder	Seat Running Plate Spacer	£1.80 £1.50
80	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
81	WE25906200 In stock	Deck Tension Spring	£21.19 £17.66
82	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
83	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
84	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£9.26 £7.72
85	WE148012200 Available to backorder	Plastic PTO Flap Foam Strip 140302	£7.93 £6.61
