Countax C600 4Wd - From 01-01-2006 To 01-01-2008 - 3 Console And Steering

Name: Countax C600 4Wd - From 01-01-2006 To 01-01-2008 - 3 Console And Steering
SKU: c6004wd_01012006_01012008_3c-group
Price: 0.31 GBP
Availability: InStock

Part No. c6004wd_01012006_01012008_3c-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C600 4Wd - From 01-01-2006 To 01-01-2008 - 3 Console And Steering

Description

Countax C Series

C600 4WD - Tractor

From 01-01-2006 To 01-01-2008

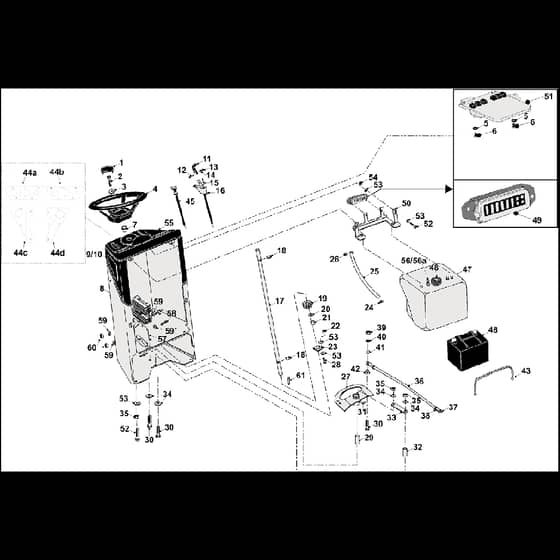

3 Console And Steering Parts Diagram

	Part No.	Details
2	7746 In stock	Bolt M8 X 25mm	£0.48 £0.40
4	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.64 £137.20
5	2110 In stock	Washer 38 T3 ZP	£0.48 £0.40
6	WE028663300 Available to backorder	No 10 X 12 Flat Ended Self Tapper	£0.61 £0.51
7	WE149588800 Available to backorder	Steering Column Upper Bush	£3.46 £2.88
8	WE327028401 Available to backorder	2002 C Series Consol Welded Assembly	£186.00 £155.00
11	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.84 £14.03
12	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.48 £0.40
13	WE04826400 Available to backorder	M4 Nyloc T	£0.37 £0.31
16	WE528004501 Available to backorder	Throttle Cable Single Cylinder Westwood	£95.76 £79.80
17	WE31328400 Available to backorder	Steering Column Cseries	£94.32 £78.60
18	WE07823800 Available to backorder	Circlip 58 External	£1.28 £1.07
19	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£94.36 £78.63
20	WE08822700 Available to backorder	Washer 58 T3 Lp	£1.00 £0.83
21	WE18401500 Available to backorder	Steering Rod Spacer	£24.20 £20.17
22	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
23	WE10801700 In stock	Column Lower Bearing	£27.23 £22.69
24	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.94 £0.78
25	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.92 £9.93
26	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.47 £2.06
27	WE327877200 Available to backorder	4Wd Steering Quadrant Assembly	£284.88 £237.40
28	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
29	WE31337400 Available to backorder	Steering Rack Pivot	£25.37 £21.14
30	WE018005300 Available to backorder	M10 X 65mm Hex Head Bolt BZP	£0.68 £0.57
31	WE11808600 Available to backorder	Grease Nipple	£0.95 £0.79
32	WE31337500 Available to backorder	Steering Support Boss	£31.14 £25.95
34	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
35	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
36	WE183520400 Available to backorder	C Series 4Wd Steering Rod	£134.52 £112.10
37	WE10872600 In stock	10mm Rod End	£20.66 £17.22
38	2173 In stock	M10 Locknut	£0.48 £0.40
41	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£13.12 £10.93
42	WE189513700 Available to backorder	Xw Series 15mm Rose Joint Spacer	£49.39 £41.16
43	WE149499500 Available to backorder	Battery Strap	£33.16 £27.63
44	WE148012900 Available to backorder	New Consol Top Upper Left (44a)	£4.45 £3.71
44	WE148013100 Available to backorder	New Consol Top Lower Left (44c)	£4.45 £3.71
44	WE148013200 Available to backorder	Insert Lower Right (44d)	£29.77 £24.81
45	WERCL290058-00 Available to backorder	Choke Cable	£120.24 £100.20
46	WE458141201 Available to backorder	Lucas 12V Sealed Battery Lslc3412	£218.76 £182.30
47	WE148015400 Available to backorder	Fuel Tank With Hole For Guage 03	£144.84 £120.70
48	WE01538400 In stock	Fuel Cap	£18.22 £15.18
49	WE301139400 Available to backorder	2002 Fusebox Holder	£27.17 £22.64
50	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£10.15 £8.46
51	WE448017005 In stock	Kawasaki Engine Pcb Only	£259.19 £215.99
55	WE148012801 Available to backorder	New C Series Consol Top 2002 (03 Mod)	£69.96 £58.30
56	WE449665300 Available to backorder	Fuel Level Sender 208mm Long 16mm Hole	£47.94 £39.95
56	WE149510900 Available to backorder	Fuel Level Sensor Seal Kit (56a)	£38.83 £32.36
57	WE301069200 Available to backorder	D1850 Relay Mounting Plate	£16.09 £13.41
58	WE02941300 Available to backorder	M6 X 25 Socket Button Head BZP Set Scre	£0.58 £0.48
59	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
60	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
61	WE09823900 In stock	Key No 61	£0.48 £0.40
