Countax C60 - From A0328984 06-04-2016 - 16 Hand Brake Cable

Name: Countax C60 - From A0328984 06-04-2016 - 16 Hand Brake Cable
SKU: c60_a032898406042016_16-group
Price: 0.32 GBP
Availability: InStock

Part No. c60_a032898406042016_16-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C60 - From A0328984 06-04-2016 - 16 Hand Brake Cable

Description

Countax C Series

C60 - Tractor

From A0328984 06-04-2016

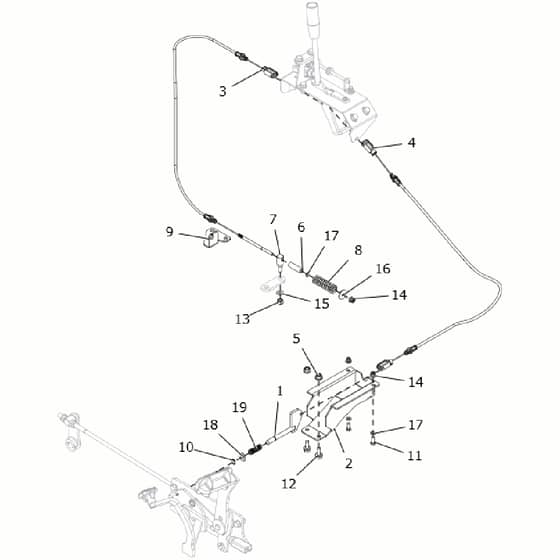

16 Hand Brake Cable Parts Diagram

	Part No.	Details
1	WE329603700 Available to backorder	Asm Handbrake Plunger	£67.92 £56.60
2	WE329605500 Available to backorder	Asm Chassis Stiffener	£19.20 £16.00
3	WE529473100 In stock	Cable Handbrake	£138.30 £115.25
4	WE529473200 Available to backorder	Cable Pedal Lock	£149.64 £124.70
6	WE149498500 Available to backorder	Spcr Transaxle Spring	£3.94 £3.28
7	WE186008000 Available to backorder	Trunnion Handbrake Cable	£9.31 £7.76
8	WE25906400 Available to backorder	Spring Transaxle Brake	£13.46 £11.22
9	WE549012200 Available to backorder	Brkt Transaxle Cable Stop	£2.05 £1.71
11	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
12	WE019483600 In stock	M8 X 20 Flange Bolt	£0.48 £0.40
13	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
14	WE049383800 Available to backorder	M6 Nyloc Flange Nut	£0.47 £0.39
16	WE08845200 Available to backorder	M6X25X1.5 mm Washer	£1.28 £1.07
17	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.48 £0.40
18	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
19	WE25805000 Available to backorder	Park Brake Spring	£7.43 £6.19
