Countax C60 - From 01-02-2016 To 06-04-2016 - 6 Pgc Lift

Name: Countax C60 - From 01-02-2016 To 06-04-2016 - 6 Pgc Lift
SKU: c60_01022016_06042016_6p-group
Price: 0.32 GBP
Availability: InStock

Part No. c60_01022016_06042016_6p-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C60 - From 01-02-2016 To 06-04-2016 - 6 Pgc Lift

Description

Countax C Series

C60 - Tractor

From 01-02-2016 To 06-04-2016

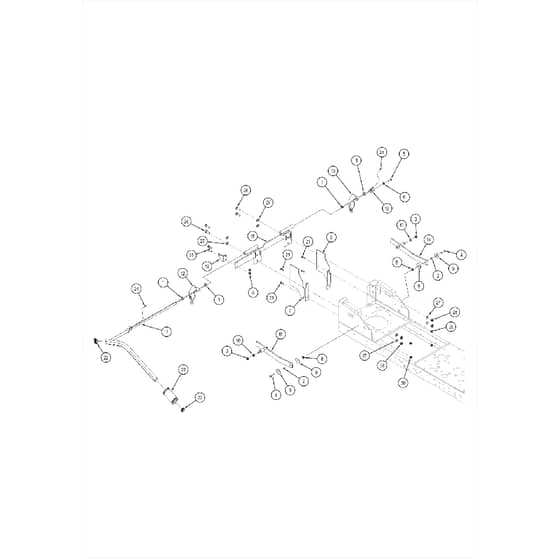

6 Pgc Lift Parts Diagram

	Part No.	Details
1	2114 In stock	Washer M12 X 24 X 1.6	£0.48 £0.40
2	WE18302700 Available to backorder	Spacer	£10.37 £8.64
3	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
4	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
6	WE542020800 Available to backorder	Brktlh PTO Guard	£31.21 £26.01
7	WE542020900 Available to backorder	Brkt RH PTO Guard	£31.21 £26.01
10	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
12	WE50100090 Available to backorder	MK4PGC Lift Link Kit	£43.58 £36.32
14	WE327056100 Available to backorder	Left Hand Sweeper Link Arm Assembly	£85.56 £71.30
15	WE327056200 In stock	Right Hand Sweeper Link Arm Assembly	£135.82 £113.18
16	WE327056300 Available to backorder	Pivot End With Switch Bracket Assembly	£49.72 £41.43
17	WE327005000 Available to backorder	PGC Handle Cross Bar Welded Assembly	£206.40 £172.00
18	WE329652500 Available to backorder	Asm PGC Lift Support	£336.96 £280.80
19	WE549219500 Available to backorder	Brkt PGC Lift Handle Support	£2.36 £1.97
20	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.19 £0.99
21	WE019484600 Available to backorder	M6 X 20 Flange Bolts(Non Serrated)	£1.99 £1.66
22	WE149494500 In stock	Oval Tube Insert Blk Oti21	£1.16 £0.97
23	WE148996400 Available to backorder	Foam Grip Fg50 (Component Force)	£10.61 £8.84
24	2197 In stock	Split Pin 1 X 18 (Snowblade)	£0.48 £0.40
25	WE029428400 Available to backorder	M8X25Lg Hex Serrated Flange Screw	£1.39 £1.16
26	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.48 £0.40
27	2539 In stock	M10 X 24 X 2 Tl Washer	£0.48 £0.40
