Countax C60 - From 01-02-2014 To 01-06-2014 - 14 Xrd Deck Tension

Name: Countax C60 - From 01-02-2014 To 01-06-2014 - 14 Xrd Deck Tension
SKU: c60_01022014_01062014_14-group
Price: 0.4 GBP
Availability: InStock

Part No. c60_01022014_01062014_14-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C60 - From 01-02-2014 To 01-06-2014 - 14 Xrd Deck Tension

Description

Countax C Series

C60 - Tractor

From 01-02-2014 To 01-06-2014

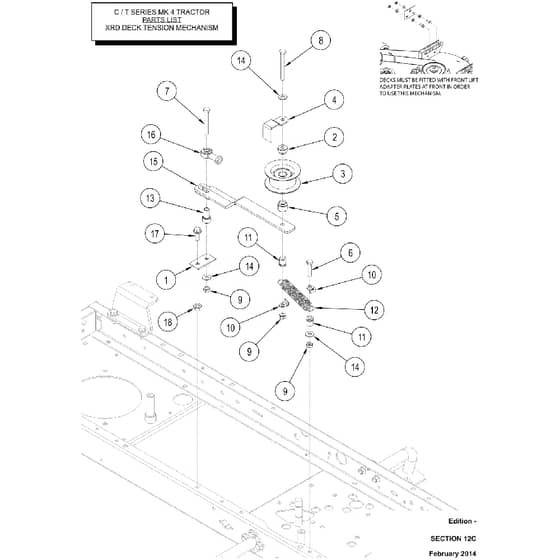

14 Xrd Deck Tension Parts Diagram

	Part No.	Details
1	WE328969700 Available to backorder	Asm 36Xrd Deck Tension Adaptor Brkt	£1.94 £1.62
2	WE18831600 Available to backorder	Spacer Jockey Wheel	£45.41 £37.84
3	WE5822 In stock	Jockey Pulley Plastic	£26.64 £22.20
4	WE307187100 Available to backorder	Belt Keeper	£17.66 £14.72
5	WE183844500 Available to backorder	Long Jockey Wheel Spacer 14 mm	£6.98 £5.82
6	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.28 £1.07
7	WE028662700 Available to backorder	Bolt M8X65mm	£0.64 £0.53
8	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.73 £0.61
9	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
10	WE549116600 Available to backorder	Deck Tension Spring Lock	£11.29 £9.41
12	WE25812201 Available to backorder	Brake Return Spring	£9.41 £7.84
13	WE183856200 Available to backorder	Deck Tension Jockey Pulley Spacer	£1.24 £1.03
14	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
15	WE329600500 Available to backorder	Deck Tension Arm Asm	£77.76 £64.80
16	WE10872600 In stock	10mm Rod End	£20.66 £17.22
17	WE029428400 Available to backorder	M8X25Lg Hex Serrated Flange Screw	£1.39 £1.16
