Countax C500H - From 01-01-2011 To 31-12-2011 - 4 Rear Body

Name: Countax C500H - From 01-01-2011 To 31-12-2011 - 4 Rear Body
SKU: c500h_01012011_31122011_4r-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500H - From 01-01-2011 To 31-12-2011 - 4 Rear Body

Description

Countax C Series

C500H - Tractor

From 01-01-2011 To 31-12-2011

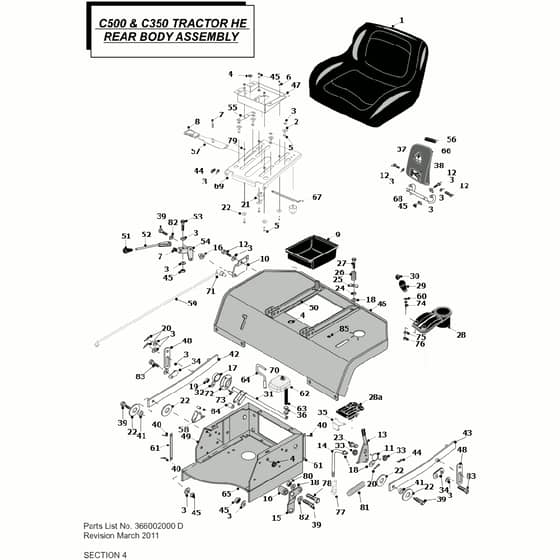

4 Rear Body Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
45	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
2	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
3	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
4	WE52849700 Available to backorder	Grommet Small	£0.96 £0.80
5	6872 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
6	WE089422300 Available to backorder	M8 X 13 X 1 Mild Steel Washer Scolour	£0.96 £0.80
7	WE25831100 Available to backorder	Spring	£7.52 £6.27
8	WE149551800 Available to backorder	Tractor Seat Handle 2008	£1.88 £1.57
9	WE14848500 Available to backorder	Tool Tray	£24.70 £20.58
10	WE32722500 Available to backorder	PTO Engage Bridge	£20.90 £17.42
11	WE258000600 Available to backorder	Spring Handbrake Block Torsion 1.75 Dia	£4.99 £4.16
12	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
13	WE321124300 Available to backorder	C Series Handbrake Handle Welded Assy	£80.06 £66.72
14	WE318961703 Available to backorder	Universal Handbrake Rod	£62.62 £52.18
15	WE301137800 Available to backorder	C Series Handbrake Chassis Joggle Plate	£21.29 £17.74
16	WE183027400 Available to backorder	C Series Hbrake Chassis Joggle Plt Boss	£12.41 £10.34
17	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
18	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
19	2047 In stock	Nut	£0.90 £0.75
20	2202 Available to backorder	18 X 12 Split Pin	£0.47 £0.39
21	WE149551900 Available to backorder	Rubber Seat Spring Retainer	£9.26 £7.72
22	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Washer	£0.48 £0.40
23	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
24	WE31330800 Available to backorder	Spacer(He Cseries Seat Spring)	£5.24 £4.37
26	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
27	WE028003400 Available to backorder	M10 X 40mm Socket Capscrew Zinc Plated	£0.83 £0.69
28	WE148013900 Available to backorder	C Series 2002 Cup Holder	£22.42 £18.68
28	WE148014000 Available to backorder	C Series 2002 Hanbrake Block (28a)	£11.62 £9.68
29	WE149557300 Available to backorder	Handbrake Handle	£15.04 £12.53
30	WE359505100 Available to backorder	Hbrake Handle Badge	£6.88 £5.73
31	WE327009400 In stock	2050 Sweeper Lift Bar	Was £104.74 £87.28 Special Price £75.41 £62.84
32	2053 In stock	M5 Washer Form C Od 12.5mm	£0.54 £0.45
33	WE149498000 Available to backorder	C Series Handbrake Mechanism Nylon Bush	£6.76 £5.63
34	WE327016100 Available to backorder	Sweeper Lift Con Plate Assy(Zincclear)	£27.96 £23.30
35	WE301151300 Available to backorder	Brake Switch Bracket	£22.40 £18.67
37	WE35809500 Available to backorder	PTO Danger Label	£31.04 £25.87
38	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.70 £4.75
39	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.67 £0.56
40	WE128000100 Available to backorder	Rivet For Mulch Deck Liner	£0.96 £0.80
41	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
42	WE32720300 Available to backorder	H.E. Sweeper Lift Arm RH	£132.48 £110.40
43	WE32721100 Available to backorder	H.E. Sweper Lift Arm LH	£113.03 £94.19
44	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
46	WE327028600 Available to backorder	2002 C Series He Rear Body Welded Assy	£188.45 £157.04
47	WE301985401 Available to backorder	Seat Base Plate 2008	£66.12 £55.10
48	WE30133500 Available to backorder	H.E. Sweeper Lift Plate	£30.56 £25.47
49	WE327308500 Available to backorder	Foot Control C Series Seatbox Manual	£159.41 £132.84
50	WE301985800 Available to backorder	Seat Attachment Channel 2008	£53.22 £44.35
51	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
52	WE32708701 Available to backorder	PTO Lever	£50.02 £41.68
53	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.15 £0.96
55	WE301985700 Available to backorder	Seat Mechanism Spring Retainer Plate	£33.62 £28.02
56	WE148012200 Available to backorder	Plastic PTO Flap Foam Strip 140302	£7.67 £6.39
57	WE325000601 Available to backorder	Seat Release Mehcanism Lever Assembly	£17.17 £14.31
58	WE307023200 Available to backorder	Seatbox Bracket For La10 Actuator	£10.16 £8.47
59	WE318963201 Available to backorder	C Series PTO Rod	£72.62 £60.52
60	WE148014300 Available to backorder	M6 Socket Screw Cap	£0.62 £0.52
61	WE301140300 Available to backorder	Stainless Steel Wearstrip	£8.04 £6.70
63	WE148014800 Available to backorder	K46 Reservoir Hose	£34.42 £28.68
64	WE327012700 Available to backorder	5 Pulley Modified Pig Tail Assembly 98	£31.25 £26.04
65	WE32702400 Available to backorder	Chassis Assy	£257.28 £214.40
66	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic)	£57.82 £48.18
67	WE31301800 Available to backorder	Seat Pivot Rod	£34.58 £28.82
68	WE542032800 Available to backorder	Brkt PTO Flap A Series	£17.56 £14.63
69	WE301985503 Available to backorder	Seat Running Plate 2008	£52.70 £43.92
70	TT168T2024250 In stock	Vent Valve	£14.95 £12.46
71	WE18318000 Available to backorder	Rider Deck Brake Trunnion	£15.14 £12.62
72	WE27106601 In stock	Bearing Housing 17mm	£28.62 £23.85
73	2035 In stock	M5 X 16mm Flang Butt Hd Sckt Drive Scre	£0.41 £0.34
74	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.28 £0.23
75	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
76	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
77	WE10872600 In stock	10mm Rod End	£20.30 £16.92
78	8984 Available to backorder	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
79	WE183856700 Available to backorder	Seat Running Plate Spacer	£1.74 £1.45
80	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
81	WE25906200 In stock	Deck Tension Spring	£19.78 £16.48
82	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
83	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
84	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£8.96 £7.47
85	WE149547500 Available to backorder	1 14 Closed Grommet 2mm Material	£4.55 £3.79
