Countax C500H - From 01-01-2011 To 31-12-2011 - 2 Bonnet Assy (Honda)

Name: Countax C500H - From 01-01-2011 To 31-12-2011 - 2 Bonnet Assy (Honda)
SKU: c500h_01012011_31122011_2b_h-group
Price: 0.32 GBP
Availability: InStock

Part No. c500h_01012011_31122011_2b_h-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500H - From 01-01-2011 To 31-12-2011 - 2 Bonnet Assy (Honda)

Description

Countax C Series

C500H - Tractor

From 01-01-2011 To 31-12-2011

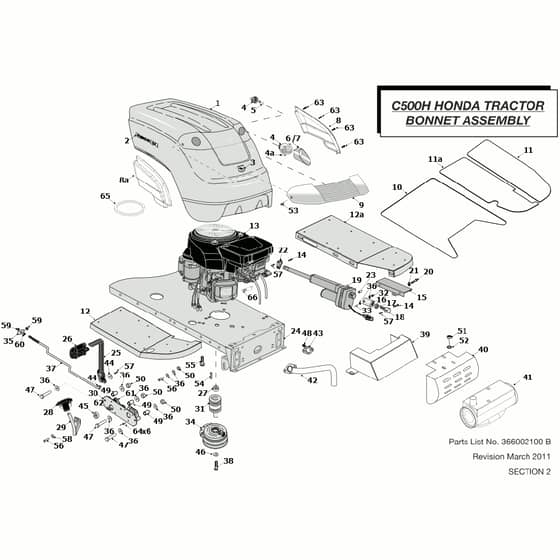

2 Bonnet Assy (Honda) Parts Diagram

	Part No.	Details
11	WE148992200 Available to backorder	RH C Series Self Adhesive Mat	£26.56 £22.13
1	WE405007300 Available to backorder	2002 Countax Bonnet C300C400C600	£630.92 £525.77
2	WE359010100 Available to backorder	Alluminium Brush Finish Countax Badge	£12.58 £10.48
4	WE448008400 Available to backorder	Light C Series 2002 2Ba 008 221007	£55.88 £46.57
4	WE148014900 Available to backorder	Fir Tree Fixing C Series Head Lights (4a)	£0.38 £0.32
5	WE448008500 Available to backorder	Bulb C Series 2002 Py21W	£6.14 £5.12
6	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.19 £3.49
7	WE148013600 Available to backorder	C Series RH Light Can 2002	£3.00 £2.50
8	WE149550800 Available to backorder	C Series Side Panel 2008 RH (8a)	£73.32 £61.10
8	WE149550900 Available to backorder	C Series Side Panel 2008 LH	£123.72 £103.10
9	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£41.74 £34.78
10	WE148992300 Available to backorder	Ctr C Series Self Adhesive Mat	£34.90 £29.08
11	WE148992100 Available to backorder	LH C Series Self Adhesive Mat	£26.56 £22.13
12	WE327177300 Available to backorder	Cseries LH Angled Running Board Assy 01 (12a)	£78.60 £65.50
12	WE327177701 Available to backorder	Hydro RH Angled Running Board Oct 01	£163.08 £135.90
14	WE189504800 Available to backorder	10mm Actuator Pin	£4.93 £4.11
15	WE327363500 Available to backorder	La12 Actuator Mounting Bracket	£29.82 £24.85
16	WE183028100 Available to backorder	Universal Act Attachment Body Aug 03	£10.60 £8.83
18	WE187184900 Available to backorder	Deck Lift Actuator Adjustment Screw	£5.16 £4.30
19	WE449664100 Available to backorder	X Series Hiwin Actuator +	£370.54 £308.78
20	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.73 £0.61
21	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.38 £0.32
22	WE307192400 Available to backorder	Universal Deck Lift Arm Hiwin Actuator	£69.48 £57.90
23	WE183023500 Available to backorder	La10 Fast Lift Actuator Bush	£9.26 £7.72
24	WE32702400 Available to backorder	Chassis Assy	£288.24 £240.20
25	WE32952200 Available to backorder	Cww Forward Pedal Welded Assembly	£112.32 £93.60
26	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.67 £13.06
27	WE183028300 Available to backorder	Hanbrake C Series Only Eng Pulley Spacer	£3.72 £3.10
28	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£14.30 £11.92
29	WE327361301 Available to backorder	Cassette Reverse Pedal Assy	£63.12 £52.60
30	WE301143000 Available to backorder	Transmission Cassette Side Plate	£15.77 £13.14
33	WE018003200 Available to backorder	M8X40mm Bright Zinc Plate Bolt	£1.00 £0.83
34	WE44936100 In stock	Elec.Clutch Magstop	£486.89 £405.74
35	WE183017300 Available to backorder	Foot Control C Series Fwdrev Trunnion	£8.53 £7.11
36	2192 In stock	Washer M8 X 21 X 1.6	£0.48 £0.40
37	WE313021701 Available to backorder	C Series 2003 Forward Reverse Rod	£25.28 £21.07
38	2201 In stock	716 UNF X 4.5 Bolt	£3.90 £3.25
40	WE307199700 Available to backorder	2004 Countax Heatshield	£125.52 £104.60
44	WE088845300 Available to backorder	9 Id X 22 Od X 2mm Thick Washer	£0.59 £0.49
45	WE183011000 Available to backorder	Universal Pedal Cassette Spacer 10mm	£3.59 £2.99
46	WE18312200 Available to backorder	Engine Pulley Cap	£29.26 £24.38
47	WE028662600 Available to backorder	Bolt M8 X 55	£0.65 £0.54
50	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
51	WE048001700 Available to backorder	M8 Philadas Self Locking Nut Zinc Plate	£0.88 £0.73
52	8417 In stock	Washer M8 X 25 X 3 Unplated	£0.48 £0.40
53	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.42 £0.35
54	WE09853401 Available to backorder	Key14Sq X 1 14 American Spec Rounded	£2.06 £1.72
55	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.69 £1.41
56	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.48 £0.40
57	WE06861500 Available to backorder	332 X 12 Split Pin	£0.56 £0.47
58	6408 In stock	M8 Internally Serrated Shakeproof Washe	£0.48 £0.40
59	2038 In stock	M10 Nyloc Nut	£0.48 £0.40
60	2173 In stock	M10 Locknut	£0.48 £0.40
61	WE307194300 Available to backorder	2003 Pedal Cassette Link	£64.56 £53.80
63	WE148012300 Available to backorder	Fir Tree Fixing For V2050 From Tfc	£3.54 £2.95
64	WE12824400 Available to backorder	Pop Rivet 4.8mm X 10mm	£1.30 £1.08
66	WE52851200 Available to backorder	Oil Drainage Valve	£26.83 £22.36
