Countax C500 - From 01-01-2009 To 01-01-2011 - 3 Console And Steering

Name: Countax C500 - From 01-01-2009 To 01-01-2011 - 3 Console And Steering
SKU: c500_01012009_01012011_3c-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2009 To 01-01-2011 - 3 Console And Steering

Description

Countax C Series

C500 - Tractor

From 01-01-2009 To 01-01-2011

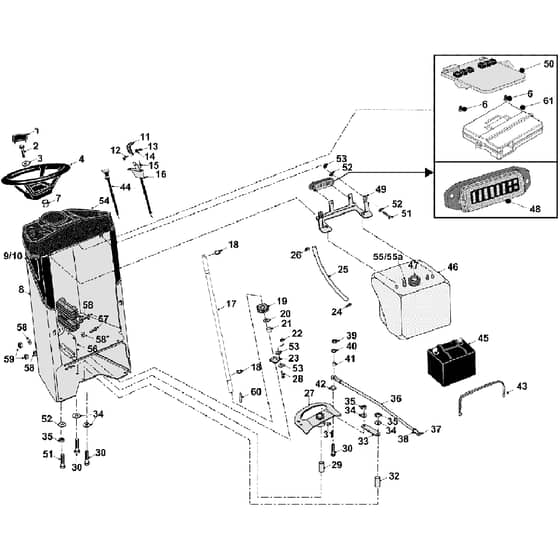

3 Console And Steering Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
3	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
4	WE149591300 Available to backorder	Steering Wheel Assy (2013)	£164.62 £137.18
5	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
6	WE028663300 Available to backorder	No 10 X 12 Flat Ended Self Tapper	£0.60 £0.50
7	WE149588800 Available to backorder	Steering Column Upper Bush	£3.34 £2.78
8	WE327807101 Available to backorder	C Series Consol Welded Assembly 2008	£409.20 £341.00
9	WE148986300 Available to backorder	Cda Series Knee Pad RH	£62.54 £52.12
11	WE14810400 Available to backorder	Control Knob (Throttle Cable)	£16.28 £13.57
12	2045 In stock	M4 X 12 Pozi Pan Ss Zinc Plated	£0.19 £0.16
13	WE04826400 Available to backorder	M4 Nyloc T	£0.36 £0.30
15	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 10314816	£1.25 £1.04
16	WE528004501 Available to backorder	Throttle Cable Single Cylinder Westwood	£95.76 £79.80
16	WE528005401 Available to backorder	Throttle Controltwin Honda 2 Detent Pad (16a)	£89.52 £74.60
17	WE31328400 Available to backorder	Steering Column Cseries	£94.26 £78.55
18	WE07823800 Available to backorder	Circlip 58 External	£1.50 £1.25
19	WE213112100 In stock	Steering Gear 2050 Cser Wwk1850	£105.60 £88.00
20	WE08822700 Available to backorder	Washer 58 T3 Lp	£0.96 £0.80
21	WE18401500 Available to backorder	Steering Rod Spacer	£23.40 £19.50
22	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
23	WE10801700 In stock	Column Lower Bearing	£25.40 £21.17
24	WE11867100 Available to backorder	Hose Clip (Spring Type)	£0.90 £0.75
25	WE14803200 Available to backorder	Fuel Feed Pipe 80059	£11.52 £9.60
26	WE11856900 Available to backorder	Jubilee Clip (Fuel Tank Hose)	£2.40 £2.00
27	WE327015800 In stock	C Series 17T Steering Quad	£154.92 £129.10
28	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
29	WE31337400 Available to backorder	Steering Rack Pivot	£24.52 £20.43
30	WE018005300 Available to backorder	M10 X 65mm Hex Head Bolt BZP	£0.67 £0.56
34	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
35	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
36	WE313007800 Available to backorder	Tractor Steering Link Rod March 99	£18.36 £15.30
37	WE10872600 In stock	10mm Rod End	£20.30 £16.92
38	2173 Available to backorder	M10 Locknut	£0.38 £0.32
41	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
42	WE189513700 Available to backorder	Xw Series 15mm Rose Joint Spacer	£47.74 £39.78
43	WE149499500 In stock	Battery Strap	£30.94 £25.78
44	WERCL290058-00 Available to backorder	Choke Cable	£86.77 £72.31
45	WE458141201 Available to backorder	Lucas 12V Sealed Battery Lslc3412	£205.32 £171.10
46	WE148015400 Available to backorder	Fuel Tank With Hole For Guage 03	£144.82 £120.68
47	WE01538400 In stock	Fuel Cap	£16.98 £14.15
48	WE301139400 Available to backorder	2002 Fusebox Holder	£26.26 £21.88
49	WE307187400 Available to backorder	2002 Fuel Tank Brkt	£9.82 £8.18
50	WE449878400 Available to backorder	Briggs & Honda Pcb Replaces 448017013. (50c)	£247.67 £206.39
50	WE448017005 Available to backorder	Kawasaki Engine Pcb Only (50b)	£247.67 £206.39
50	WE448002000 Available to backorder	P.C.B Board Hour Meter Only	£266.64 £222.20
50	WE448009402 Available to backorder	Main Pcb + Fuel 20902 40915 (50a)	£245.64 £204.70
54	WE148986100 Available to backorder	Dashboard 2008	£13.88 £11.57
55	WE149510900 Available to backorder	Fuel Level Sensor Seal Kit (55a)	£37.54 £31.28
55	WE449665300 Available to backorder	Fuel Level Sender 208mm Long 16mm Hole	£46.34 £38.62
56	WE02941300 Available to backorder	M6 X 25 Socket Button Head BZP Set Scre	£0.56 £0.47
58	2061 In stock	M6 Washer 6 X 12.5 X 1.6mm BZP	£0.64 £0.53
59	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
60	WE09823900 In stock	Key No 61	£1.22 £1.02
61	WE149552000 Available to backorder	Pcb Case 2 Part	£9.46 £7.88
