Countax C500 - From 01-01-2008 To 31-12-2008 - 09 Deck Cradle

Description

Countax C Series

C500 - Tractor

From 01-01-2008 To 31-12-2008

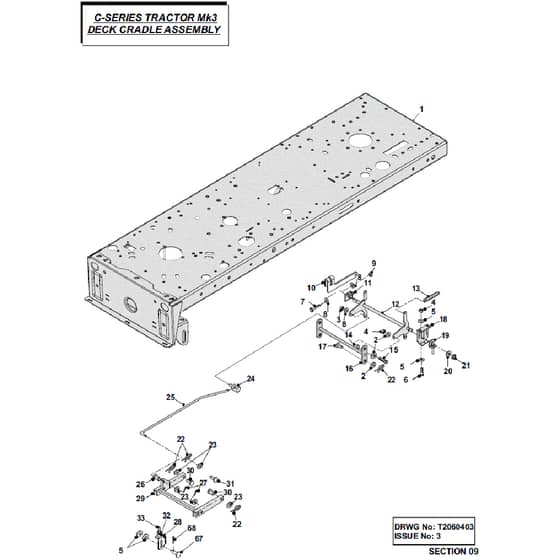

09 Deck Cradle Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Available to backorder	Chassis Cseries	£516.00 £430.00
2	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
3	6872 In stock	M8 X 16 Mscrew BZP	£0.70 £0.58
4	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
5	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
6	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
7	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.71 £0.59
9	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
10	WE301965400 Available to backorder	Ad Manual Deck Lift Lower Linkage Arm	£58.96 £49.13
11	WE307189601 Available to backorder	2003 Rear Deck Hanging Brkt	£28.24 £23.53
12	WE327361700 Available to backorder	2003 Rear Deck Hanging Brktcser Non He	£113.86 £94.88
12	WE328954100 Available to backorder	C Series He Rear Deck Lift Cradle2003 (12a)	£207.72 £173.10
14	WE183016900 Available to backorder	Track Rod End Spacer 12.7Od X 10Id X 7	£12.68 £10.57
15	WE018005700 Available to backorder	Hx Hd Bolt Zink Plt & Clear Passivated	£0.89 £0.74
16	WE549129100 Available to backorder	Brkt Rear Deck Lift Link	£44.78 £37.32
17	WE31337200 In stock	Deck Lift Pin (Rear)	£13.58 £11.32
18	WE301143700 Available to backorder	Hex Adjuster Deck Level Bracket 04	£27.05 £22.54
19	WE327029300 Available to backorder	Rear Deck Cradle Adjuster Brkt Nov 04	£6.20 £5.17
20	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
21	WE078000800 Available to backorder	E Clip M12 Plated	£0.89 £0.74
22	2195 In stock	Rue Clip	£0.76 £0.63
23	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
24	WE189497500 Available to backorder	2002 Tractor Deck Level Trunion	£25.36 £21.13
25	WE18805900 Available to backorder	Height Adjuster Rod	£28.34 £23.62
26	WE31339401 In stock	Deck Swing Lift Pin 12 X 46.5mm	£19.64 £16.37
27	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
28	WE301040000 Available to backorder	2050 Deck Lever Bracket	£38.48 £32.07
29	WE32703701 Available to backorder	Deck Carry Cradle Assembly Front	£178.68 £148.90
30	WE31336800 In stock	Deck Lift Pin (Front)	£39.36 £32.80
32	WE189501800 Available to backorder	Deck Level Hex Adjuster Nut Nov 04	£16.18 £13.48
