Countax C500 - From 01-01-2004 To 01-01-2009 - 2 Bonnet And Running Board

Name: Countax C500 - From 01-01-2004 To 01-01-2009 - 2 Bonnet And Running Board
SKU: c500_01012004_01012009_2b-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2004 To 01-01-2009 - 2 Bonnet And Running Board

Description

Countax C Series

C500 - Tractor

From 01-01-2004 To 01-01-2009

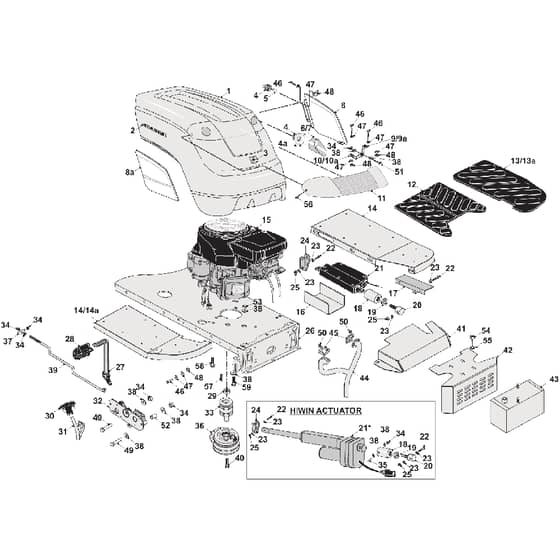

2 Bonnet And Running Board Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE405007400 Available to backorder	2002 Countax Bonnet C800	£626.40 £522.00
2	WE359010100 Available to backorder	Alluminium Brush Finish Countax Badge	£12.16 £10.13
4	WE148012300 Available to backorder	Fir Tree Fixing For V2050 From Tfc (4a)	£3.42 £2.85
4	WE448008400 Available to backorder	Light C Series 2002 2Ba 008 221007	£54.02 £45.02
5	WE448008500 In stock	Bulb C Series 2002 Py21W	Was £6.14 £5.12 Special Price £4.08 £3.40
6	WE148013500 Available to backorder	C Series LH Light Can 2002	£4.06 £3.38
7	WE148013600 Available to backorder	C Series RH Light Can 2002	£2.90 £2.42
8	WE148014100 Available to backorder	Side Panel LH C Series 2002	£88.24 £73.53
8	WE148014200 Available to backorder	Side Panel RH C Series 2002 (8a)	£88.64 £73.87
9	WE301137600 Available to backorder	C Series Front Side Panel Fix Brkt LH	£16.92 £14.10
9	WE301137700 Available to backorder	C Series Front Side Panel Fix Brkt RH (9a)	£16.25 £13.54
10	WE301137200 Available to backorder	Common Front Side Panel Fixing Brkt LH	£16.25 £13.54
10	WE301137300 Available to backorder	Common Front Side Panel Fixing Brkt RH (10a)	£15.70 £13.08
11	WE148013400 Available to backorder	C Series Bonnet Lens 2002	£40.34 £33.62
13	WE148992100 Available to backorder	LH C Series Self Adhesive Mat	£25.67 £21.39
13	WE148992200 Available to backorder	RH C Series Self Adhesive Mat (13a)	£25.67 £21.39
14	WE327177300 Available to backorder	Cseries LH Angled Running Board Assy 01	£78.54 £65.45
14	WE327177700 Available to backorder	Manual Running Board RH From 1101 (14a)	£83.09 £69.24
16	WE307188100 Available to backorder	He Deck Actuator Cover 2002	£9.66 £8.05
17	WE327363500 Available to backorder	La12 Actuator Mounting Bracket	£28.82 £24.02
18	WE183028100 Available to backorder	Universal Act Attachment Body Aug 03	£10.25 £8.54
18	WE189498600 Available to backorder	La12 Link Actuator Adjuster Boss	£9.52 £7.93
20	WE187184900 Available to backorder	Deck Lift Actuator Adjustment Screw	£5.00 £4.17
21	WE448008601 Available to backorder	La12 Actuator 121P0011001220	£645.60 £538.00
21	WE448015700 Available to backorder	Actuator Hiwin	£504.00 £420.00
22	WE018002400 Available to backorder	M10 X 55 Hex Head Bolt	£0.71 £0.59
23	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
24	WE301055001 Available to backorder	D Deck Lift Actuator Arm	£28.54 £23.78
24	WE307192400 Available to backorder	Universal Deck Lift Arm Hiwin Actuator	£69.46 £57.88
25	2038 In stock	M10 Nyloc Nut	£0.72 £0.60
26	WE327023302 Available to backorder	Chassis Cseries	£516.00 £430.00
27	WE327361200 Available to backorder	2002 Cassette Forward Pedal Welded Assy	£32.42 £27.02
28	WE148013700 Available to backorder	C Series Fwd Large Pedal Rubber 2002	£15.14 £12.62
29	WE31854000 Available to backorder	Engine Pulley Spacer	£32.02 £26.68
30	WE148013800 In stock	C Series Small Rev Pedal Rubber 2002	£13.34 £11.12
31	WE327361301 Available to backorder	Cassette Reverse Pedal Assy	£63.17 £52.64
32	WE409429500 Available to backorder	Adkc Series Pedal Cassette Assembly	£187.68 £156.40
33	WE31330500 Available to backorder	Engine Pulleymag Stop Clutch	£242.87 £202.39
35	WE01935700 Available to backorder	M8 X 35mm Bolt Compressor 119	£1.50 £1.25
36	WE44936100 In stock	Elec.Clutch Magstop	£528.00 £440.00
37	WE183017300 Available to backorder	Foot Control C Series Fwdrev Trunnion	£8.24 £6.87
38	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
40	2201 In stock	716 UNF X 4.5 Bolt	£2.36 £1.97
41	WE301138000 Available to backorder	Zintec Heat Shield Gxv620	£46.18 £38.48
42	WE307199700 Available to backorder	2004 Countax Heatshield	£125.54 £104.62
43	WE401007001 Available to backorder	Exhaust C500H C600H	£208.20 £173.50
46	WE019479400 Available to backorder	M6 X 20mm Lng Sckt Hd Cap Screw Sc	£0.67 £0.56
47	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
48	WE049381900 Available to backorder	M6 X 3mm Captive Nut	£1.16 £0.97
49	WE02941000 Available to backorder	Bolt M8 X 45mm (Vac)	£0.67 £0.56
51	WE01852000 Available to backorder	Bolt M8 X 70mm Coachbolt	£0.47 £0.39
52	WE31322200 Available to backorder	Transaxle Deflector Spacer	£2.92 £2.43
53	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
54	WE048001700 Available to backorder	M8 Philadas Self Locking Nut Zinc Plate	£0.85 £0.71
55	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
56	WE18005100 Available to backorder	M4 X 16 Sckt Hd Counter Sunk Screw Sc	£0.41 £0.34
57	WE09853401 Available to backorder	Key14Sq X 1 14 American Spec Rounded	£2.00 £1.67
58	WE01848700 Available to backorder	38UNC X 1 14 Bolt BZP	£1.64 £1.37
59	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
