Countax C500 - From 01-01-2003 To 31-12-2007 - 06 Hydrostatic Transaxle

Name: Countax C500 - From 01-01-2003 To 31-12-2007 - 06 Hydrostatic Transaxle
SKU: c500_01012003_31122007_06-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 31-12-2007 - 06 Hydrostatic Transaxle

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 31-12-2007

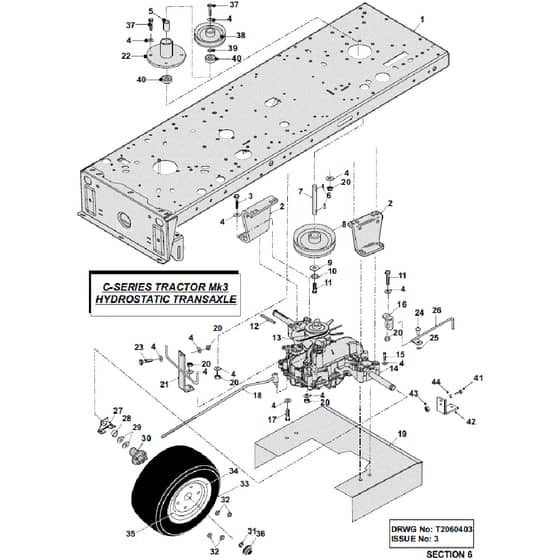

06 Hydrostatic Transaxle Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE327023302 Available to backorder	Chassis Cseries	£516.00 £430.00
2	WE307025900 Available to backorder	C Series Transaxle Brkt 2000 6mm Thk	£46.92 £39.10
3	WE028003200 Available to backorder	M8 X 75mm Hex Bolt Zinc Plated Pa	£0.71 £0.59
4	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
5	WE31306200 Available to backorder	PTO End Spacer	£35.32 £29.43
6	WE09823900 In stock	Key No 61	£1.22 £1.02
7	WE31306000 Available to backorder	PTO Shaft	£99.72 £83.10
8	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
9	8417 In stock	Washer M8 X 25 X 3 Unplated	£1.00 £0.83
10	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
11	7746 In stock	Bolt M8 X 25mm	£0.38 £0.32
12	2199 In stock	Keyrear Wheel	£2.75 £2.29
13	WE229503401 In stock	A79 Clutching Belt K46	£55.82 £46.52
14	TT7A646084280 In stock	Hydrotx K46Cm 08	£928.90 £774.08
15	WE028662700 Available to backorder	Bolt M8X65mm	£0.62 £0.52
16	WE307022200 Available to backorder	Park Brake Switch Brkt Long	£8.21 £6.84
17	8416 In stock	Bolt M8 X 50mm	£1.19 £0.99
19	WE30307101 Available to backorder	2001 Cseries Transaxle Deflector	£140.96 £117.47
20	2111 In stock	M8 Nyloc Nut	£0.28 £0.23
21	WE327020401 Available to backorder	Transaxle Steady Ssembly	£39.20 £32.67
22	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£262.69 £218.91
24	WE12860100 Available to backorder	Rivet 4.8 X 16mm Alloy Pop 10314816	£1.25 £1.04
25	WE07868700 Available to backorder	14 Starloc Washer	£0.54 £0.45
26	WE321123301 Available to backorder	Cseries Dump Valve Lever Assembly	£27.10 £22.58
27	WE307191801 Available to backorder	K46 Transaxle Thrust Washer	£6.00 £5.00
28	WE189498701 Available to backorder	K46 Transaxle Spacer 2008	£35.12 £29.27
29	WE089423700 In stock	Transaxle Washer 46 X 20 X 2	£1.92 £1.60
30	WE198002000 Available to backorder	Wheel Hub For 20 Wheel Cw Studs & Nuts	£95.18 £79.32
31	2012 In stock	19mm External Circlip C1A140019	£0.48 £0.40
32	WE048000901 In stock	Ct Series Rear Wheel Nut	£3.54 £2.95
33	WE198001200 Available to backorder	20 Rear Tyre Ctractor 20X8.00	£139.50 £116.25
34	WE198001100 Available to backorder	20 Cseries& C4Wd Rear Rim	£119.60 £99.67
35	WE14889200 Available to backorder	Wheel Valve	£10.93 £9.11
36	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
37	7735 In stock	Screw Hex Hd Din933 M8 X 20 Grade 10.9	£0.58 £0.48
38	WE208000400 Available to backorder	5 PTO Pulley	£43.04 £35.87
40	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
41	8984 In stock	Screw Hex Hd Din933 M10 X 30 Grade 10.	£0.94 £0.78
42	WE29200101 Available to backorder	Tow Bracket	£86.90 £72.42
43	2173 Available to backorder	M10 Locknut	£0.38 £0.32
44	7282 In stock	Washer 10.8Id X 20.7Od X 2mm Thk	£0.34 £0.28
