Countax C500 - From 01-01-2003 To 01-09-2003 - 29 Powered Grass Collector

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

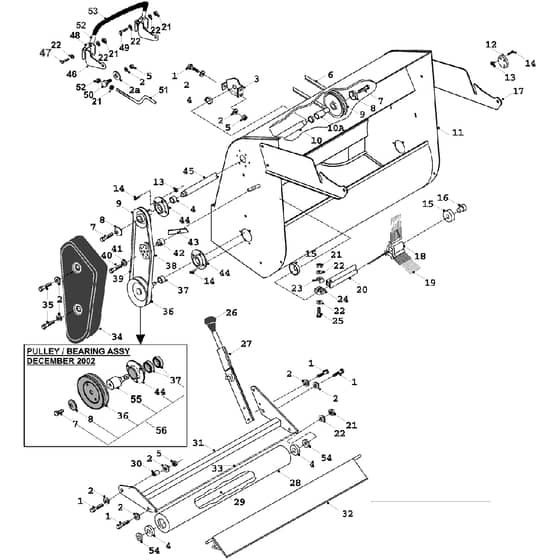

29 Powered Grass Collector Parts Diagram

	Part No.	Details
1	8999 In stock	M8 X 30 Roofing Bolt	£0.48 £0.40
2	WE08819800 In stock	Washer 516Id X 1Od Hd	£21.10 £17.58
2	WE088002300 Available to backorder	Nylon Washer (Friction Plate) (2a)	£0.68 £0.57
3	WE307025600 Available to backorder	B	£65.16 £54.30
4	WE10811600 In stock	Bearing (PTO Housing)	£17.52 £14.60
5	2111 In stock	M8 Nyloc Nut	£0.48 £0.40
6	WE228001200 In stock	Belt A49 Super Ii	£27.20 £22.67
7	8420 In stock	M10 X 25 Sscrew BZP	£0.48 £0.40
8	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£15.24 £12.70
9	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£24.25 £20.21
10	WE31306200 Available to backorder	PTO End Spacer	£36.54 £30.45
10	WE183003900 Available to backorder	Tractor Sweeper Input Pulley Extension (10a)	£3.88 £3.23
11	WE327816100 Available to backorder	300L PGC Main Body Welded Assy	£907.68 £756.40
12	WE30117500 Available to backorder	Sweeper Bearing Cap	£7.20 £6.00
13	2047 In stock	Nut	£0.34 £0.28
14	7274 In stock	M5 X 16mm Pozi Pan	£0.48 £0.40
15	WE32121800 In stock	Slinger	£16.93 £14.11
16	WE31323900 In stock	Brush Stock Spindle (Short)	£39.13 £32.61
17	WE327845100 Available to backorder	2008 Bag Ear Weld Assy	£43.01 £35.84
18	WE14833000 In stock	Bristle Boss	£2.20 £1.83
19	WE14936301 In stock	Webbed Yellow PGC Bristle	£1.52 £1.27
20	WE17400200 In stock	Brush Stock	£34.27 £28.56
21	7578 In stock	Nut M6 Nyloc	£0.48 £0.40
22	2010 Available to backorder	14 T4 Hp Washer	£0.48 £0.40
23	WE14834100 In stock	Brush Drive Moulding Small	£4.57 £3.81
24	WE14832900 In stock	Brush Drive Moulding Large	£4.60 £3.83
25	8411 In stock	M6 X 45mm Hex Head Bright Zinc Plate	£0.48 £0.40
26	WE14804800 Available to backorder	Lever Knob	£7.74 £6.45
27	WE327171800 Available to backorder	Sweep Roller Height Handle Assy	£143.04 £119.20
28	WE32731900 In stock	Rollerpgccseries	£186.46 £155.38
29	WE183024400 In stock	C Series Sweeper 2000 Internal Shaft 200	£62.52 £52.10
30	WE31329200 Available to backorder	Cseries Roller Plate Bush	£33.17 £27.64
31	WE327172400 Available to backorder	Roller Carrier C Series 2000 Assembly	£130.56 £108.80
32	WE327016500 In stock	C Series Swp Flap Plate	Was £53.62 £44.68 Special Price £38.71 £32.26
33	WE528004401 In stock	C Series Sweeper Roller Scraper Cable	£14.42 £12.02
34	WE148005400 In stock	Belt Guard C & 205	£65.05 £54.21
35	WE028662700 Available to backorder	Bolt M8X65mm	£0.64 £0.53
36	WE209044100 In stock	Pulley 5 Sweeper	£59.30 £49.42
36	WE327002600 In stock	Sweeper Pulley & Shaft	£202.03 £168.36
37	WE10845500 In stock	Bearing 6203Zz	£14.17 £11.81
38	WE20811500 In stock	PTO Jockey Pulley	£24.72 £20.60
39	WE22832800 In stock	Belt Sweeper Vtype A36	£23.96 £19.97
40	8416 In stock	Bolt M8 X 50mm	£0.46 £0.38
41	WE31351100 Available to backorder	Sweeper Jockey Cap	£44.03 £36.69
42	WE31350400 Available to backorder	Sweeper Jockey Spacer	£13.39 £11.16
43	WE30121900 Available to backorder	Bearing Shield	£4.04 £3.37
44	WE27106601 In stock	Bearing Housing 17mm	£30.67 £25.56
45	WE183005700 Available to backorder	98 Model Cseries PGC Idler Shaft	£116.76 £97.30
46	WE307177800 Available to backorder	Universal Sweeper Locking Plate April 01	£41.86 £34.88
47	2184 Available to backorder	M6X16mm Set Screw	£0.48 £0.40
48	WE30149800 Available to backorder	LH PGC Lever Lock	£11.42 £9.52
49	2148 In stock	Bolt M6 X 20mm (Vac) ( Af037868 )	£0.48 £0.40
50	WE183003800 In stock	PGC Belt Tension Adjust Trunnion	£33.49 £27.91
52	WE178966300 Available to backorder	2002 PGC Locking Handle	£60.48 £50.40
53	WE149496600 Available to backorder	Sweeper Black Grip 22 Lx0.5 Idx0.2 Wall	£20.32 £16.93
54	WE31330002 Available to backorder	Roller Shaft Spacer	£21.96 £18.30
55	WE189497400 In stock	2002 Brush Stock Spindle Long	£30.62 £25.52
