Countax C500 - From 01-01-2003 To 01-09-2003 - 28 Powered Grass Collector

Name: Countax C500 - From 01-01-2003 To 01-09-2003 - 28 Powered Grass Collector
SKU: c500_01012003_01092003_28-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 01-09-2003 - 28 Powered Grass Collector

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

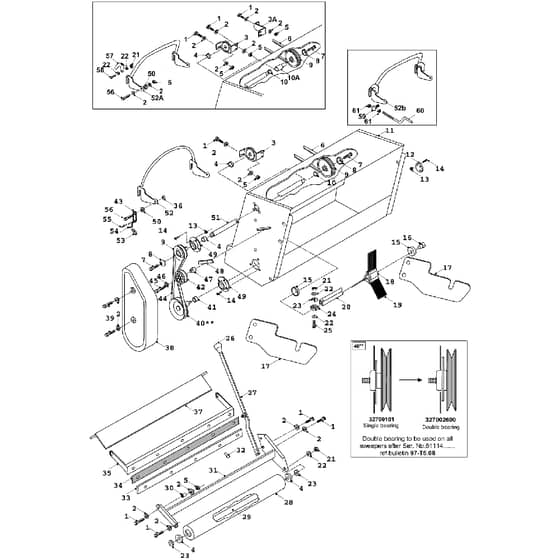

28 Powered Grass Collector Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	WE01902300 Available to backorder	Bolt M8X25mm	£0.38 £0.32
2	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
4	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
5	2094 Available to backorder	Nyloc Nut 516 UNF	£0.36 £0.30
6	WE228000300 Available to backorder	Belt Rdr97 A50 Super 2 (Rdrpgc)	£23.46 £19.55
7	2189 Available to backorder	Bolt 38 X 34 HT	£0.94 £0.78
8	WE08819900 In stock	Dome Washer 1.34Od X 38Id X 18Dome	£14.22 £11.85
9	WE32727600 Available to backorder	3 Pulley (Non Keyed)	£23.44 £19.53
10	WE183003900 Available to backorder	Tractor Sweeper Input Pulley Extension (10A)	£3.74 £3.12
10	WE31306200 Available to backorder	PTO End Spacer	£35.32 £29.43
12	WE30117500 Available to backorder	Sweeper Bearing Cap	£6.96 £5.80
13	2047 In stock	Nut	£0.90 £0.75
14	7274 In stock	M5 X 16mm Pozi Pan	£0.40 £0.33
15	WE32121800 In stock	Slinger	£15.80 £13.17
16	WE31323900 In stock	Brush Stock Spindle (Short)	£36.52 £30.43
17	WE30147000 In stock	Bag Ear	Was £40.37 £33.64 Special Price £11.99 £9.99
18	WE14833000 In stock	Bristle Boss	£2.04 £1.70
19	WE40835601 Available to backorder	Tractor Brush (Complete)	£127.21 £106.01
20	WE17400200 In stock	Brush Stock	£31.98 £26.65
21	2185 Available to backorder	Nyloc Nut14 UNF	£0.60 £0.50
22	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
23	WE14834100 In stock	Brush Drive Moulding Small	£4.26 £3.55
24	WE14832900 In stock	Brush Drive Moulding Large	£4.28 £3.57
25	WE01832400 Available to backorder	Bolt 14 X 1 34	£1.40 £1.17
26	WE14804800 Available to backorder	Lever Knob	£7.48 £6.23
28	WE32731900 Available to backorder	Rollerpgccseries	£173.04 £144.20
29	WE183024400 In stock	C Series Sweeper 2000 Internal Shaft 200	£65.86 £54.88
30	WE31329200 Available to backorder	Cseries Roller Plate Bush	£32.06 £26.72
31	WE327172400 Available to backorder	Roller Carrier C Series 2000 Assembly	£125.28 £104.40
33	WE30146800 Available to backorder	PGC Scraper Plate	£6.50 £5.42
34	WE14937101 Available to backorder	Venturie PGC Rubber C Series Net	£4.10 £3.42
37	WE327016500 In stock	C Series Swp Flap Plate	£53.62 £44.68
38	WE148005400 Available to backorder	Belt Guard C & 205	£66.20 £55.17
39	WE01821200 In stock	Bolt 516 X 2.34	£0.70 £0.58
41	WE10845500 In stock	Bearing 6203Zz	£2.02 £1.68
42	WE20811500 In stock	PTO Jockey Pulley	£23.06 £19.22
44	WE22832800 In stock	Belt Sweeper Vtype A36	£23.54 £19.62
45	2186 Available to backorder	Bolt 516UNF X 2 Zincclear UNF	£0.90 £0.75
46	WE31351100 Available to backorder	Sweeper Jockey Cap	£42.56 £35.47
47	WE31350400 Available to backorder	Sweeper Jockey Spacer	£12.94 £10.78
48	WE30121900 Available to backorder	Bearing Shield	£3.92 £3.27
49	WE27106601 In stock	Bearing Housing 17mm	£28.62 £23.85
50	8418 In stock	Nylon Washer	£1.26 £1.05
51	WE183005700 Available to backorder	98 Model Cseries PGC Idler Shaft	£116.78 £97.32
52	WE307177800 Available to backorder	Universal Sweeper Locking Plate April 01 (52B)	£40.46 £33.72
52	WE32733100 Available to backorder	Cseries Sweeper Locking Lever (97) (52A)	£95.48 £79.57
56	2183 Available to backorder	Bolt 516UNF X 1.14 HT ZP	£0.48 £0.40
56	WE35937601 Available to backorder	Sweeper Height Decal 2003	£14.44 £12.03
57	WE30150300 Available to backorder	RH PGC Lever Lock	£11.24 £9.37
58	WE01844700 Available to backorder	Bolt 14X1In	£0.71 £0.59
59	WE183003800 In stock	PGC Belt Tension Adjust Trunnion	£32.89 £27.41
61	2190 Available to backorder	14 UNC Nut	£0.58 £0.48
