Countax C500 - From 01-01-2003 To 01-09-2003 - 20 He Rear Body Post 61114

Name: Countax C500 - From 01-01-2003 To 01-09-2003 - 20 He Rear Body Post 61114
SKU: c500_01012003_01092003_20-group
Price: 0.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Countax C500 - From 01-01-2003 To 01-09-2003 - 20 He Rear Body Post 61114

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

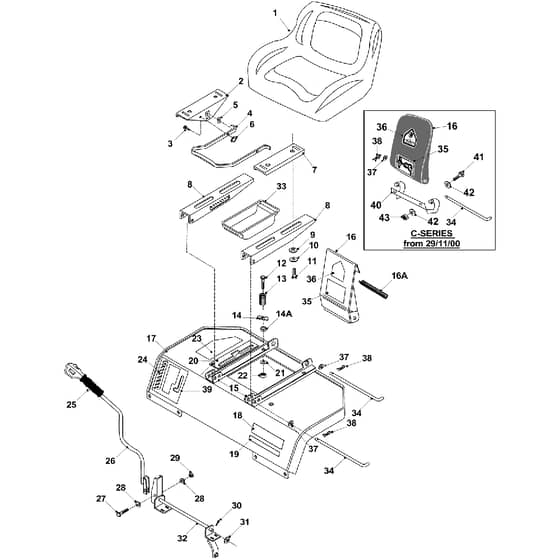

20 He Rear Body Assembly Post 61114 Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	WE012885800 Available to backorder	Rivet 14 X 12 Bz	£0.35 £0.29
4	WE30203100 Available to backorder	Seat Handle	£13.18 £10.98
5	WE25831100 Available to backorder	Spring	£7.52 £6.27
6	WE07868700 Available to backorder	14 Starloc Washer	£0.54 £0.45
7	WE30118000 Available to backorder	Seat Plate Adjuster LH	£8.26 £6.88
8	WE30117700 Available to backorder	Adjustable Seat Channel RH	£16.22 £13.52
8	WE30117800 Available to backorder	Adjustable Seat Channel LH (8A)	£16.22 £13.52
9	WE08925400 Available to backorder	M8 X 40 X 3mm Heavy Guage Washer	£0.48 £0.40
10	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
11	WE02825200 Available to backorder	Bolt 38UNC X 34In	£2.58 £2.15
12	2065 In stock	Pull Rod Spring Sleeve 302601	£0.70 £0.58
13	WE25858100 Available to backorder	Spring Sliding Seat	£12.10 £10.08
16	WE178967000 Available to backorder	PTO Belt Guard Kit Cad Series H.E	£55.25 £46.04
16	WE149496300 Available to backorder	PTO Flap Tractor He (Plastic) (16A)	£57.82 £48.18
17	WE32731400 Available to backorder	He Rear Body Panel	£84.20 £70.17
19	WE35931601 Available to backorder	97Cm 38 Decal 2003	£1.86 £1.55
20	WE02913100 Available to backorder	6 X 8 Pozi Ss Stap	£0.47 £0.39
21	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
22	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
24	WE35882700 Available to backorder	Engdisengage Label	£3.48 £2.90
25	WE38936500 In stock	Foam Grip ( Fg13 )	£14.08 £11.73
27	WE01820700 Available to backorder	Bolt 516UNF X 1.12 HT ZP	£0.53 £0.44
28	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
29	2094 Available to backorder	Nyloc Nut 516 UNF	£0.36 £0.30
30	2197 Available to backorder	Split Pin 1 X 18 (Snowblade)	£0.47 £0.39
31	2114 In stock	Washer M12 X 24 X 1.6	£0.47 £0.39
33	WE148003700 Available to backorder	He Series Toolbox	£24.94 £20.78
34	WE31301800 Available to backorder	Seat Pivot Rod	£34.58 £28.82
35	WE35891200 Available to backorder	Sweeper Belt Decal (Symbols Only)	£5.70 £4.75
36	WE35809500 Available to backorder	PTO Danger Label	£31.04 £25.87
37	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
38	WE06849100 Available to backorder	2mm R Clip	£0.60 £0.50
39	WE303072000 Available to backorder	Deck Height Gate	£37.06 £30.88
40	WE542032800 Available to backorder	Brkt PTO Flap A Series	£17.56 £14.63
42	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
43	2185 Available to backorder	Nyloc Nut14 UNF	£0.60 £0.50
