Countax C500 - From 01-01-2003 To 01-09-2003 - 11 Manual Transmission

Description

Countax C Series

C500 - Tractor

From 01-01-2003 To 01-09-2003

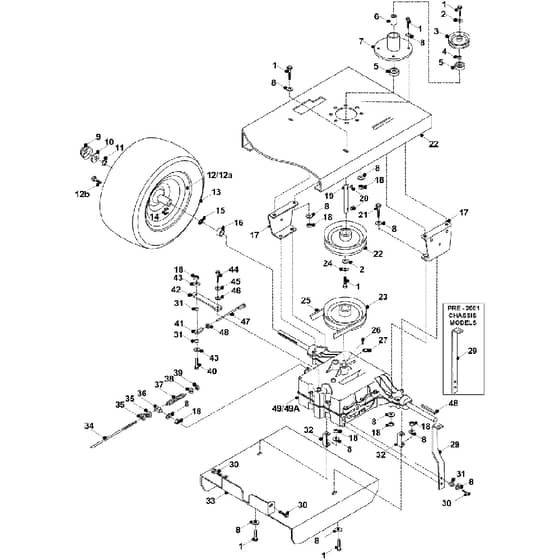

11 Manual Transmission Assembly Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	2141 In stock	Set Screw	£0.64 £0.53
2	WE08819800 In stock	Washer 516Id X 1Od Hd	£19.68 £16.40
3	WE20870800 Available to backorder	3 Pulley (Capitol)	£70.70 £58.92
4	WE31306200 Available to backorder	PTO End Spacer	£35.32 £29.43
5	WE10811600 In stock	Bearing (PTO Housing)	£16.34 £13.62
6	WE31334800 Available to backorder	Spacer PTO Centre	£23.80 £19.83
7	WE40835800 Available to backorder	PTO Bearing Housing MK3 Comp.	£262.69 £218.91
8	2192 In stock	Washer M8 X 21 X 1.6	£0.47 £0.39
9	WE14811800 Available to backorder	Hub Cap (Moulded)	£6.76 £5.63
10	WE30127800 Available to backorder	Hub Cap Washer	£1.97 £1.64
11	2147 In stock	E Clip 34	£0.88 £0.73
12	WE198002000 Available to backorder	Wheel Hub For 20 Wheel Cw Studs & Nuts (12b)	£95.18 £79.32
12	WE198001100 Available to backorder	20 Cseries& C4Wd Rear Rim (12a)	£119.60 £99.67
13	WE198001200 Available to backorder	20 Rear Tyre Ctractor 20X8.00	£139.50 £116.25
16	WE189498701 Available to backorder	K46 Transaxle Spacer 2008	£35.12 £29.27
17	WE30131600 In stock	Manualhydro Gearbox Bracket	£25.06 £20.88
18	2094 Available to backorder	Nyloc Nut 516 UNF	£0.26 £0.22
19	WE183013700 Available to backorder	D1850 Deisel PTO Shaft	£91.36 £76.13
20	WE09823900 In stock	Key No 61	£1.22 £1.02
21	2029 In stock	Bolt 516UNF X 2.12 HT ZP	£0.76 £0.63
22	WE32702450 Available to backorder	Tractor Chassis New Colour	£280.20 £233.50
23	WE20870702 Available to backorder	7 PTO Pulley	£86.50 £72.08
24	6408 In stock	M8 Internally Serrated Shakeproof Washe	£1.34 £1.12
25	WE2281110A In stock	Transmission Belt	£56.12 £46.77
27	WE07823800 Available to backorder	Circlip 58 External	£1.50 £1.25
30	WE02822100 Available to backorder	Screw 516 Trilock	£4.44 £3.70
31	WE31302800 Available to backorder	Spacer 7mm X 516Id	£9.80 £8.17
32	WE27105900 Available to backorder	Taxle Bracket	£4.00 £3.33
33	WE30138100 Available to backorder	K55 Transaxle Deflector	£45.50 £37.92
34	WE32711500 Available to backorder	Brake Rod Manual	£68.64 £57.20
35	WE049381500 Available to backorder	38 UNF Half Nut Bright Zinc Finish	£0.40 £0.33
36	WE18849900 Available to backorder	PTO Engage Trunnion	£7.64 £6.37
37	WE25808300 Available to backorder	Brake Rod Spring	£2.51 £2.09
38	2110 Available to backorder	Washer 38 T3 ZP	£0.14 £0.12
39	2095 In stock	Nyloc Nut 38UNF	£0.48 £0.40
40	2188 In stock	Bolt 516 UNF X 1 34 BZP	£0.96 £0.80
41	WE10896200 Available to backorder	M8 X M8 Rod End R.H.Thread Female	£23.60 £19.67
42	WE32725600 Available to backorder	Gear Select Plate	£15.48 £12.90
43	WE08819500 Available to backorder	Washer 516 T3 Lp Zinc Plated	£1.25 £1.04
44	2106 In stock	Set Screw	£0.30 £0.25
45	8412 In stock	M10 Internal Shakeproof Washer	£0.48 £0.40
46	2010 In stock	14 T4 Hp Washer	£0.35 £0.29
47	WE31301600 Available to backorder	Gear Select Rod	£15.08 £12.57
